Description
US--for Bone Surgery UL-for Sinus Lifting
UE-for Endodontics UC-for Exelcymosis
UI-for Implantation UP-for Periodontal Surgery
All tips are individual single package

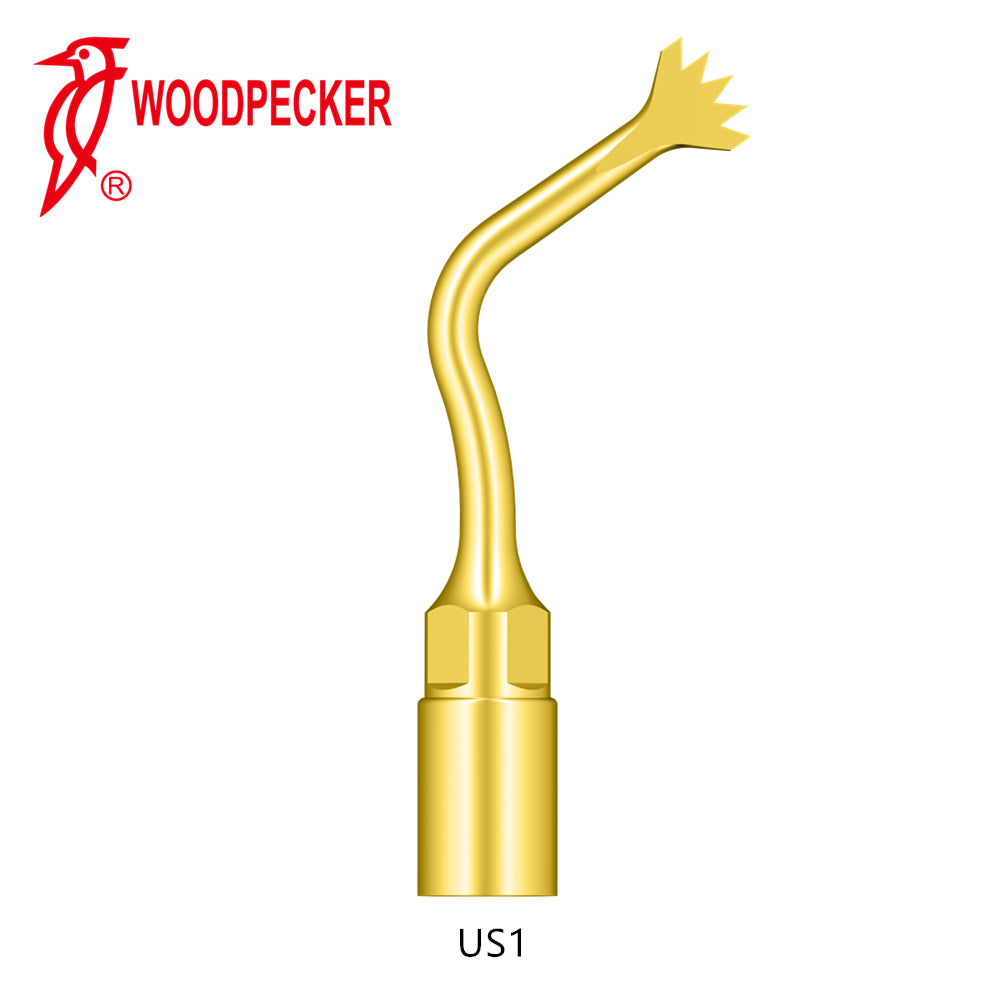

US1
High effectiveness osteotomy of large bone sections during maxillofacical surgery, it can also be used for exodontina exodontics.
US1L
Left angle 90°, horizontal osteotomy technique in the maxilla and mandible.

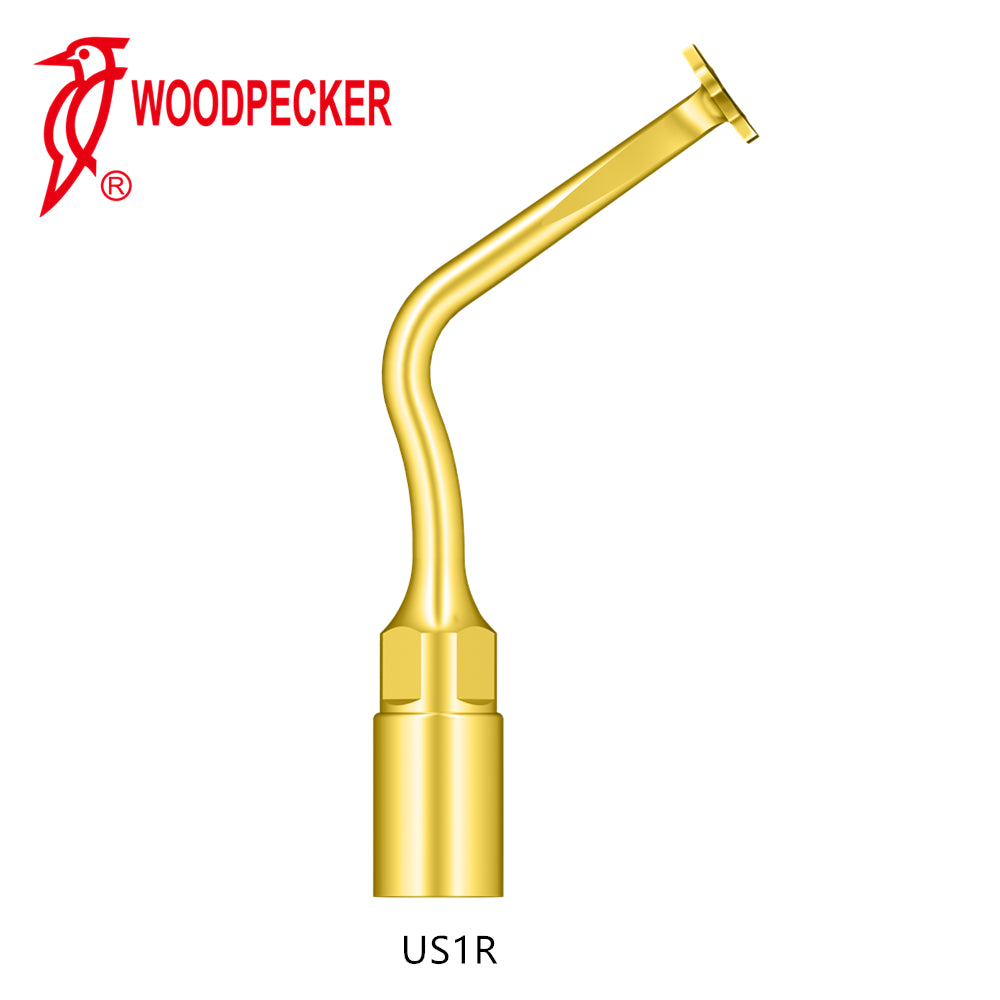

US1R
Right angle 90°, horizontal osteotomy technique in the maxilla and mandible.

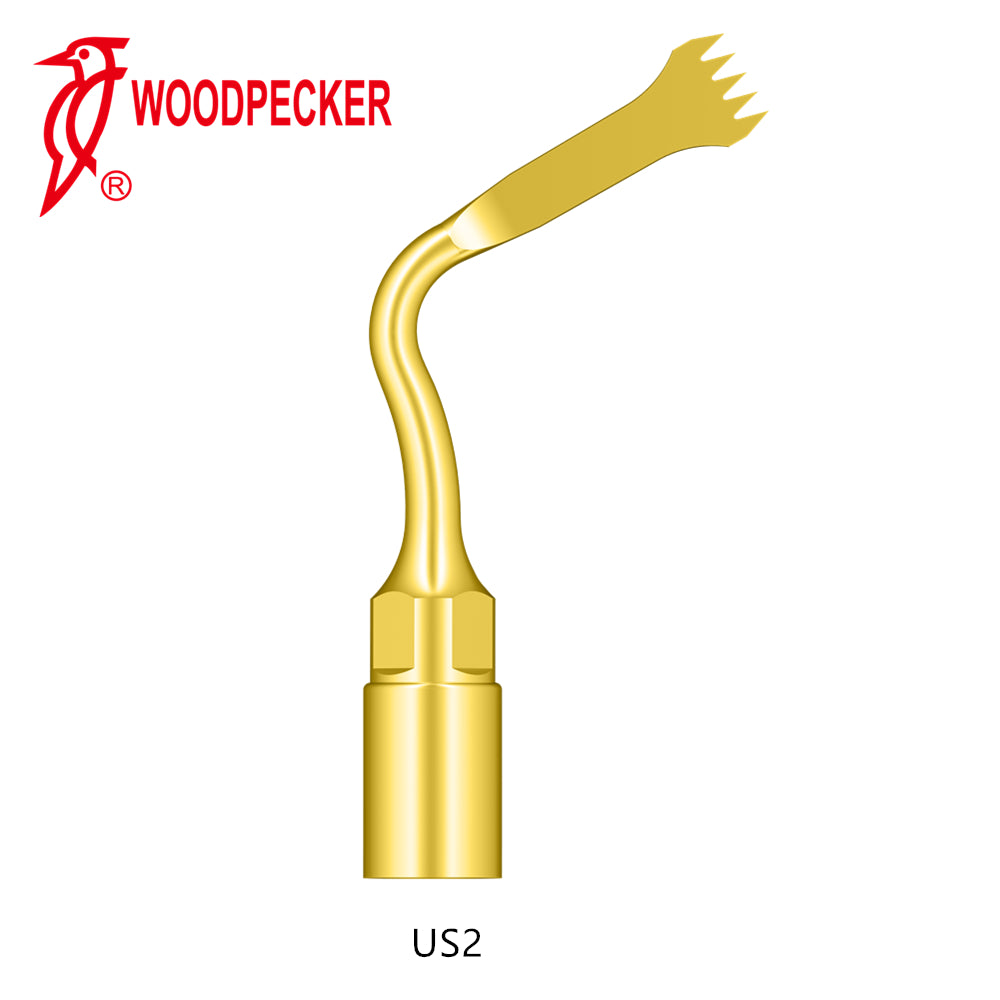

US2
High-effectiveness osteotomy on the maxilla and mandible (ridge expansion, corticotomy, bone block grafting).

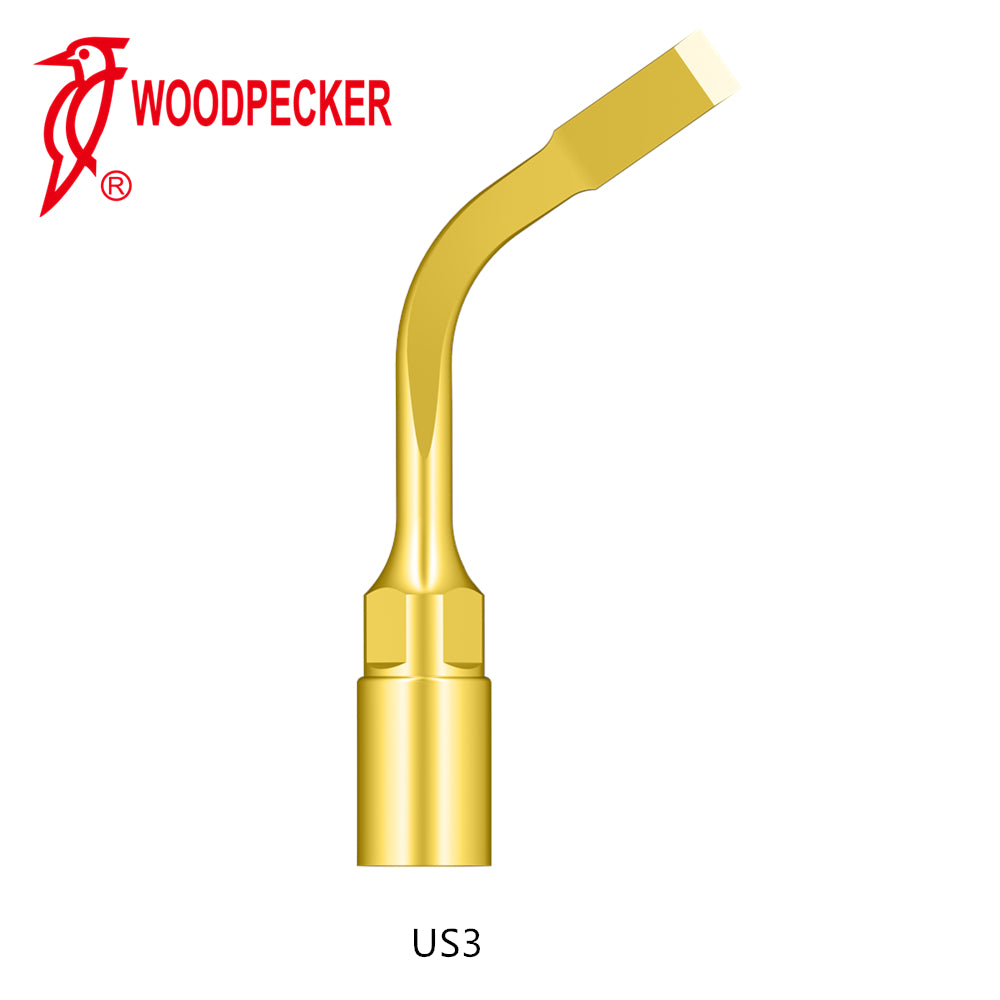

US3
Osteotomy: Osteotomy of high precision in anatomically thin structures.

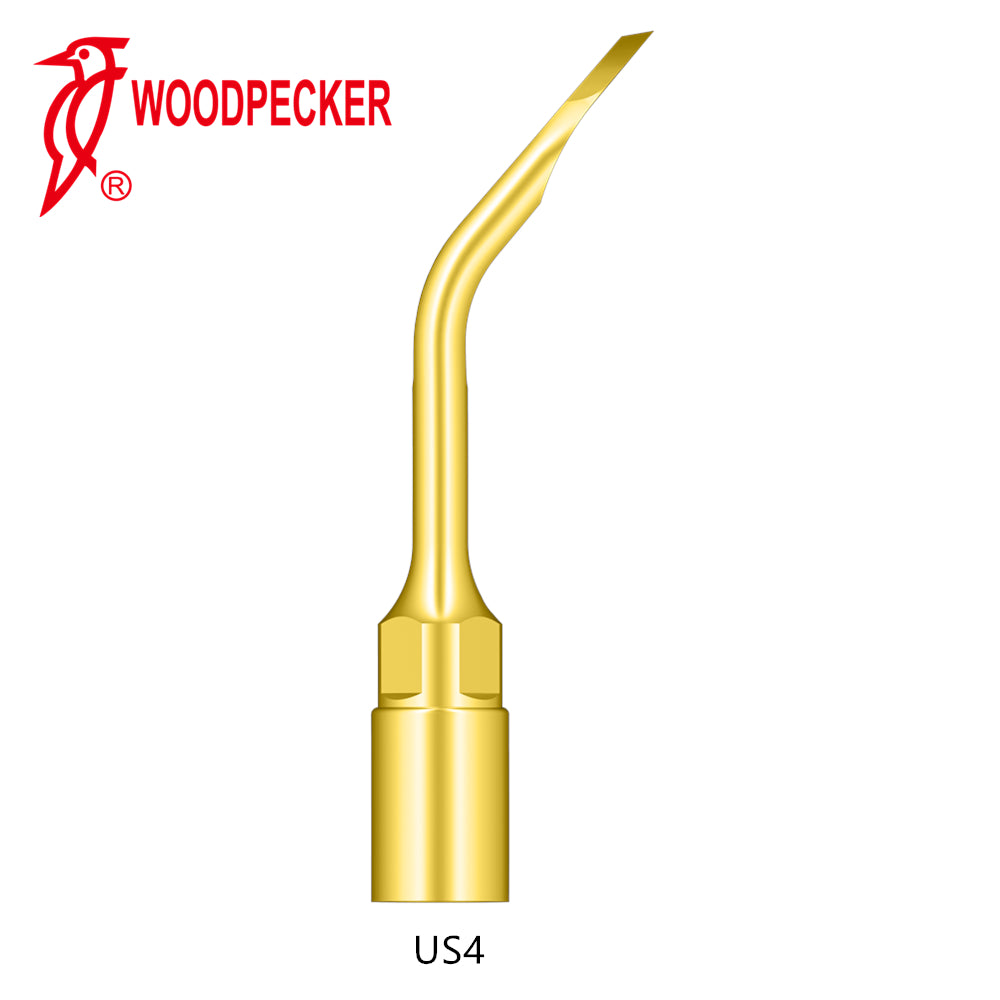

US4
Universal osteoplasty: periodontal ostectomy, harvesting of bone particles or chips, inflammatory tissue removal.

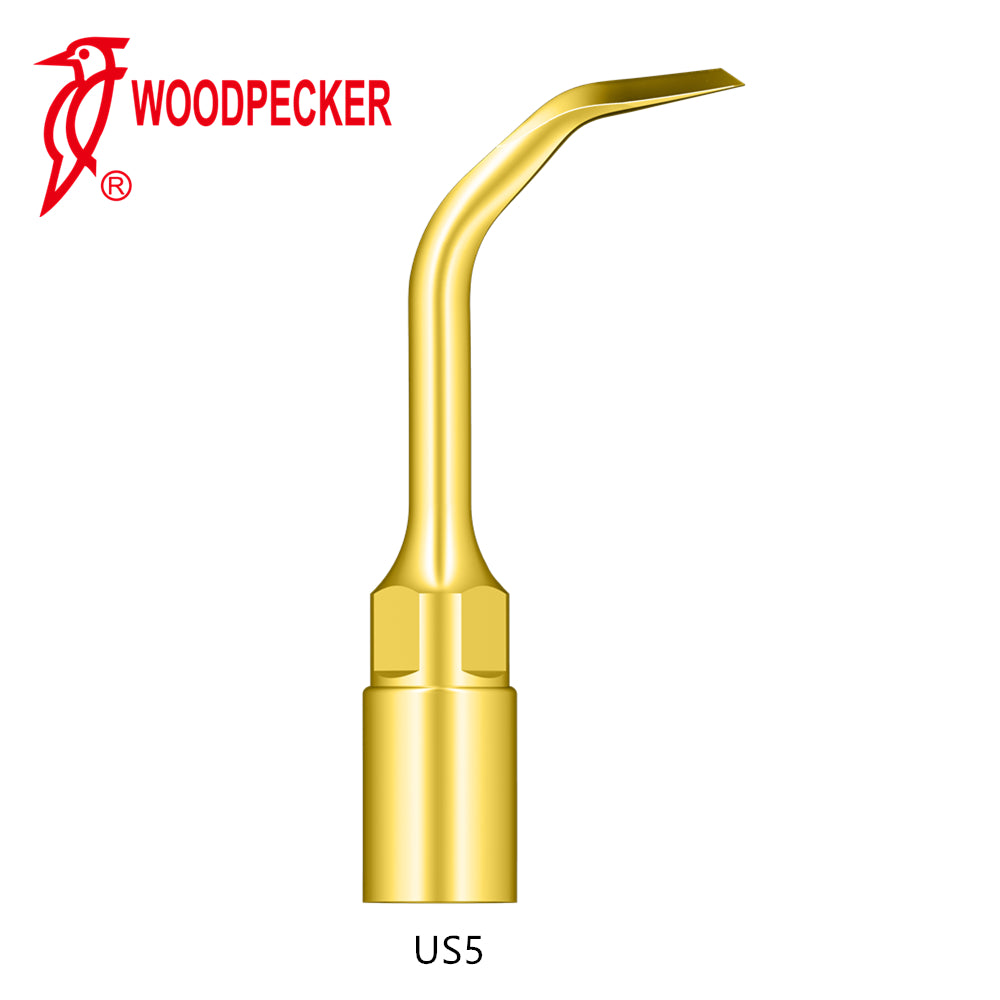

US5
High-efficiency osteoplasty: for bone remodeling or harvesting of bone particles or chips.

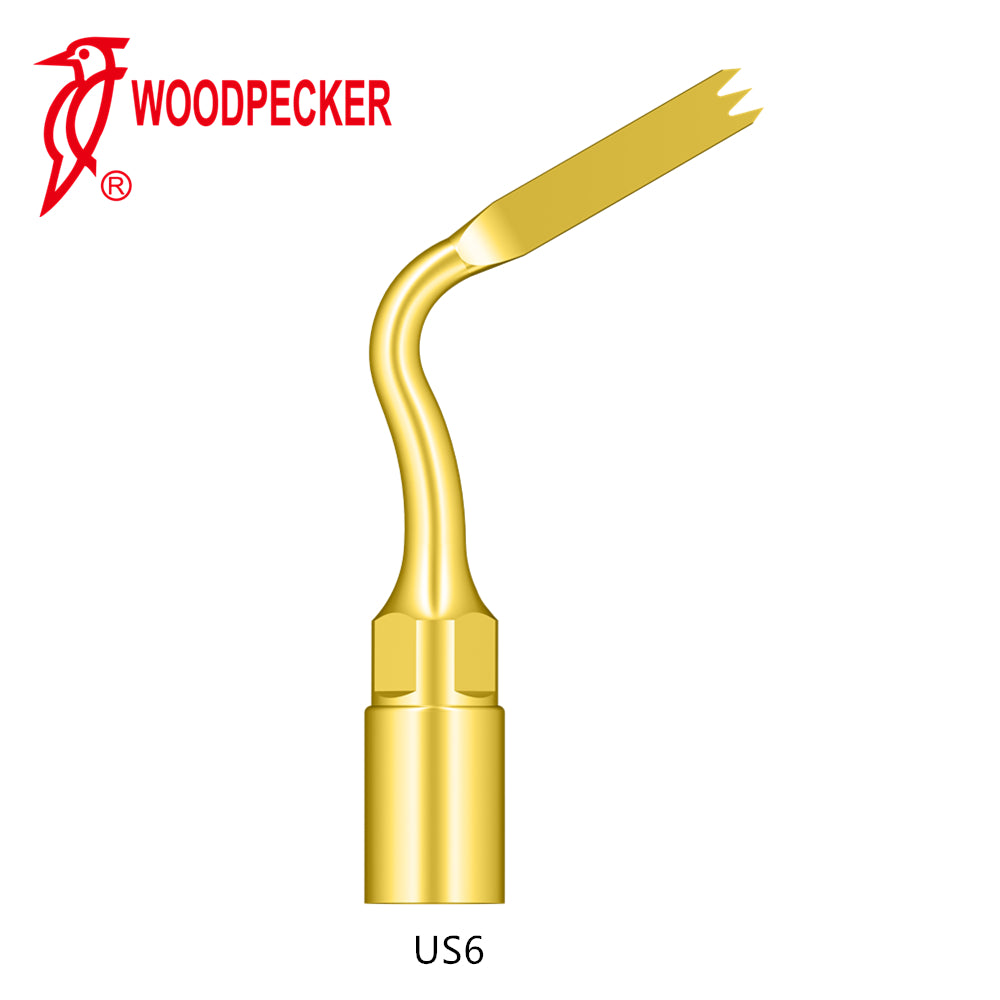

US6
Osteotomy: Osteotomy of high precision in anatomically thin structures (ridge expansion, corticotomy).
US13
For osteotomy and also for apex resection in the posterior tooth area in apical surgery.
US15
US17

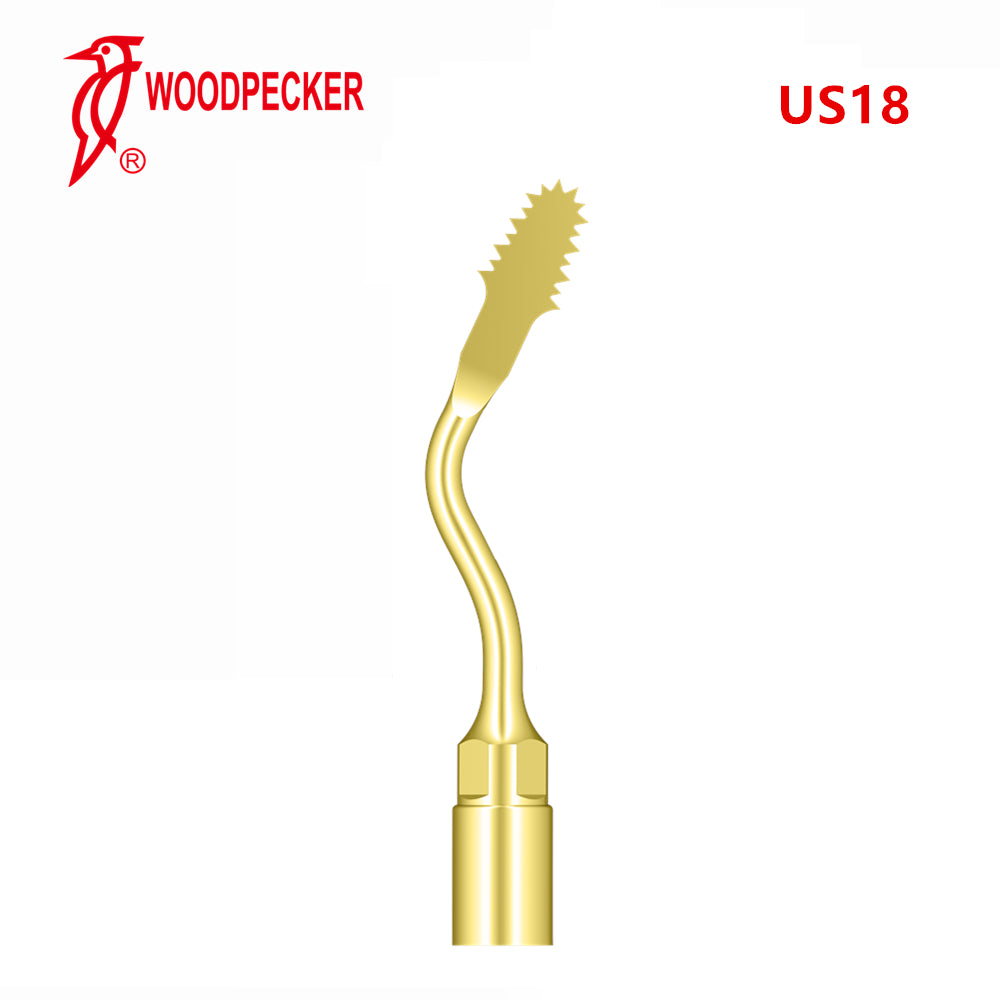

US18
Extremely thin, for efficient osteotomy and also for apex resection.
US21
Used for bone cutting. Fan-shaped serration. more convenient for cutting in different angle.
US25
For bone surgery.
UL1
Tip angle 120°. For maxillary sinus membrane detachment and elevation without damaging the maxillary sinus mucosa.
UL2
For nasal mucosa separation: detachment of the maxillary sinus mucosa.
UL3
Diamond-coated (100μm) tip for fine osteotomy or osteoplasty: for non-traumatic osteotomy close to soft tissue and sensitive areas.

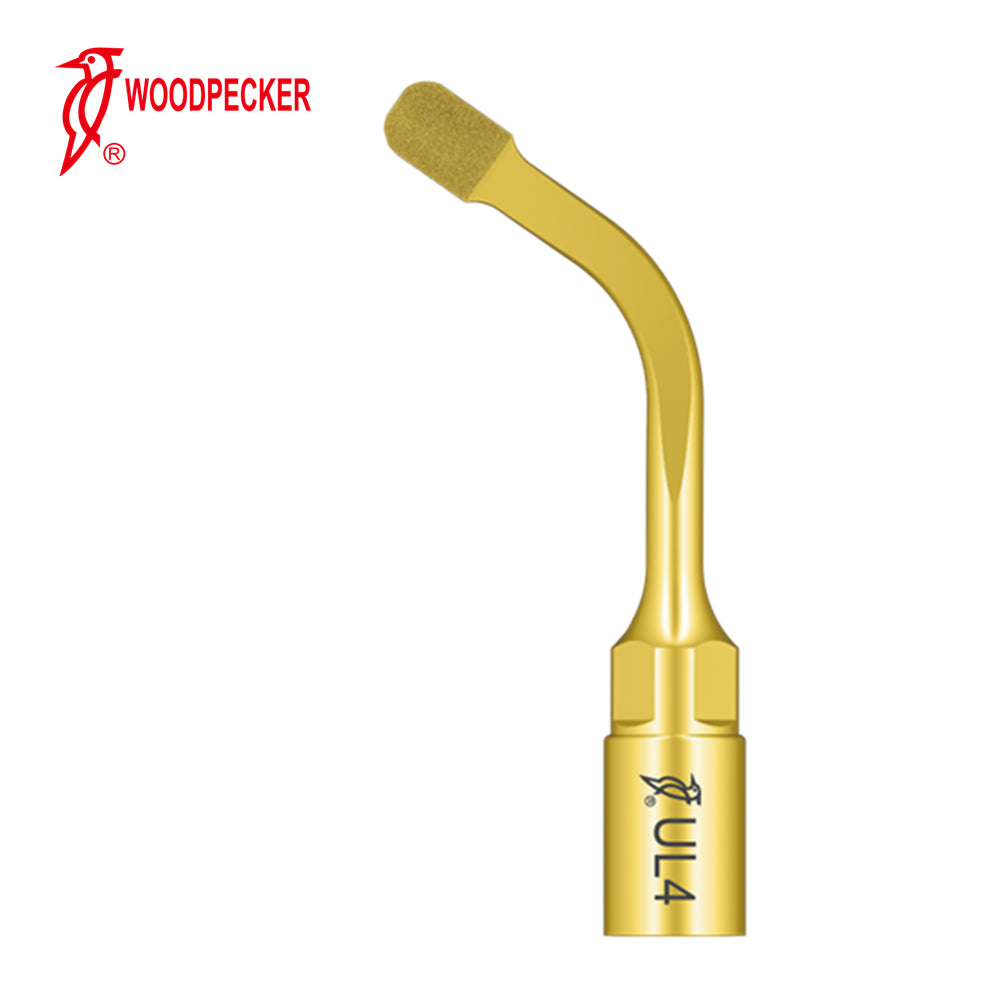

UL4
Diamond-coated (100μm) tip for fine osteotomy: for cutting of extremely-thin bone, to avoid soft tissue damage (nasal mucosa, vessel, alveolar nerve).

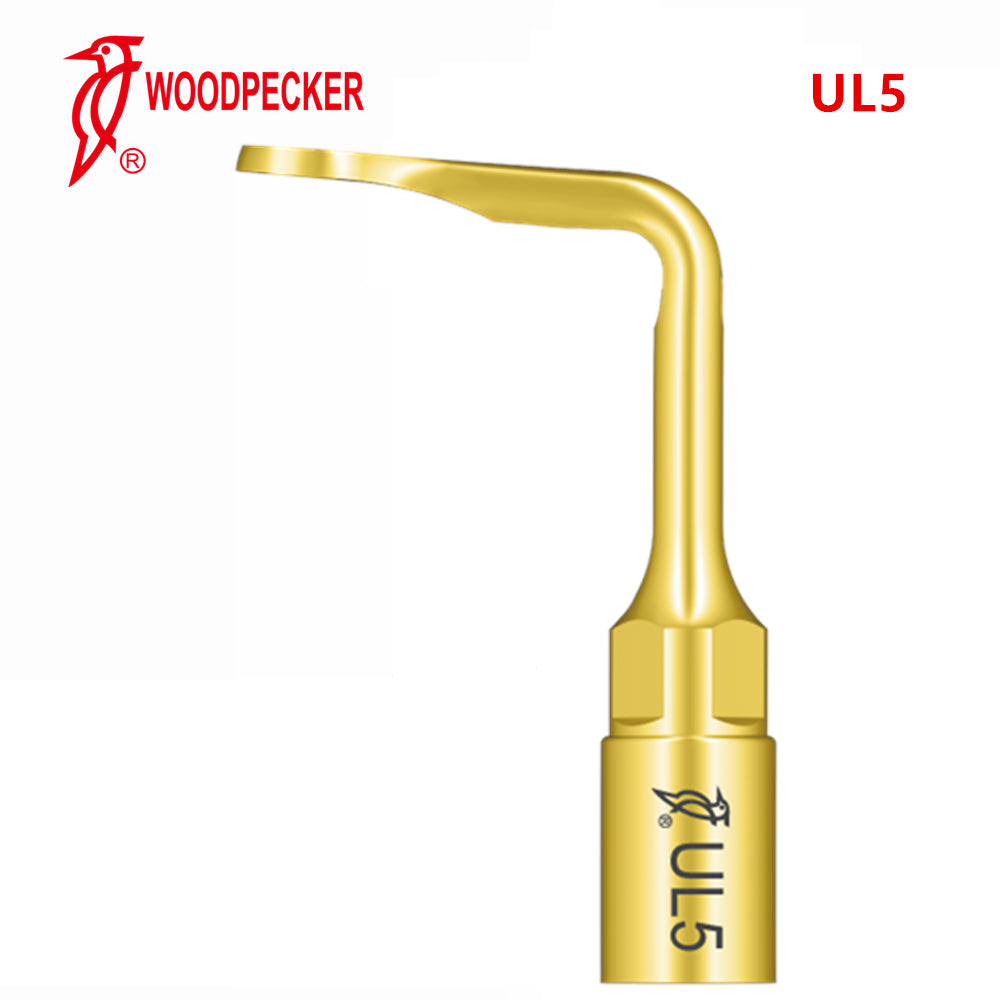

UL5
Tip angle 95°. For maxillary sinus membrane detachment and elevation without damaging the maxillary sinus mucosa.

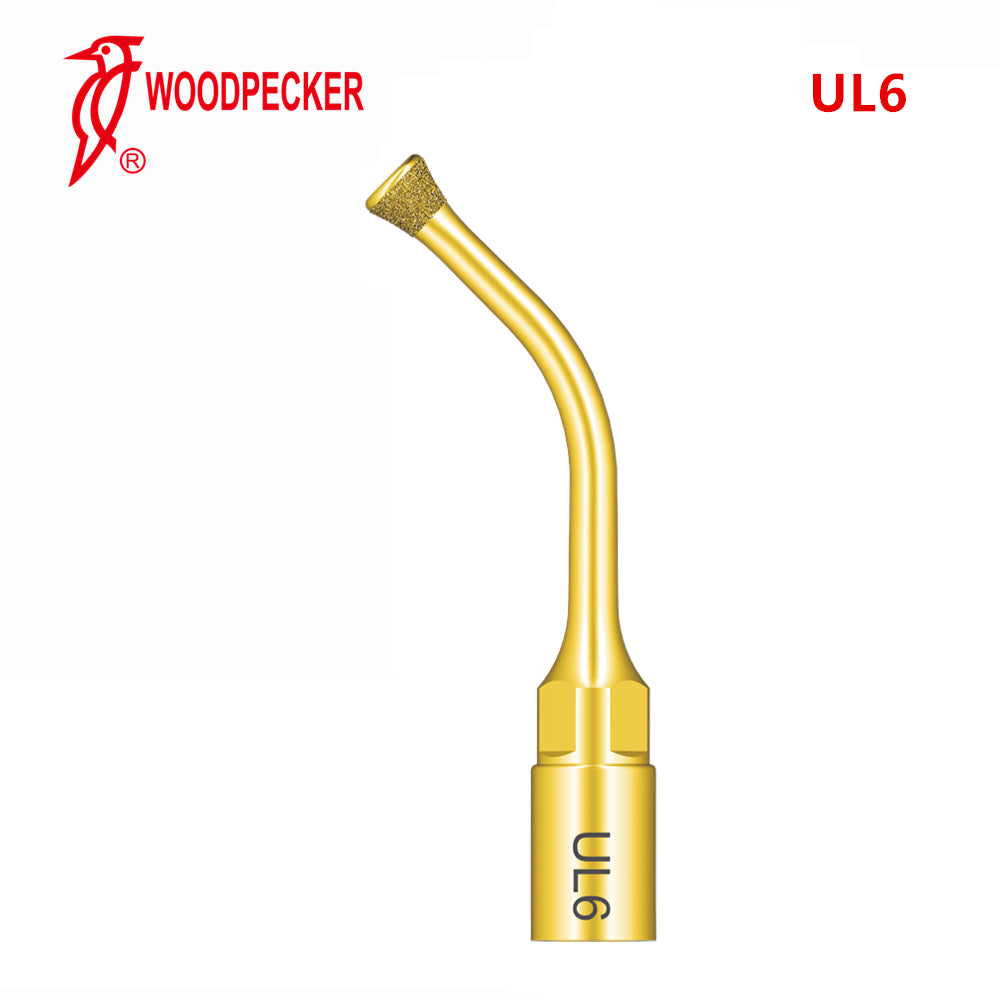

UL6
Φ3mm head with four water outlets, for better separation of the maxillary sinus periosteum. The diamond-coated portion allows for trimming of the edges of the bone window.

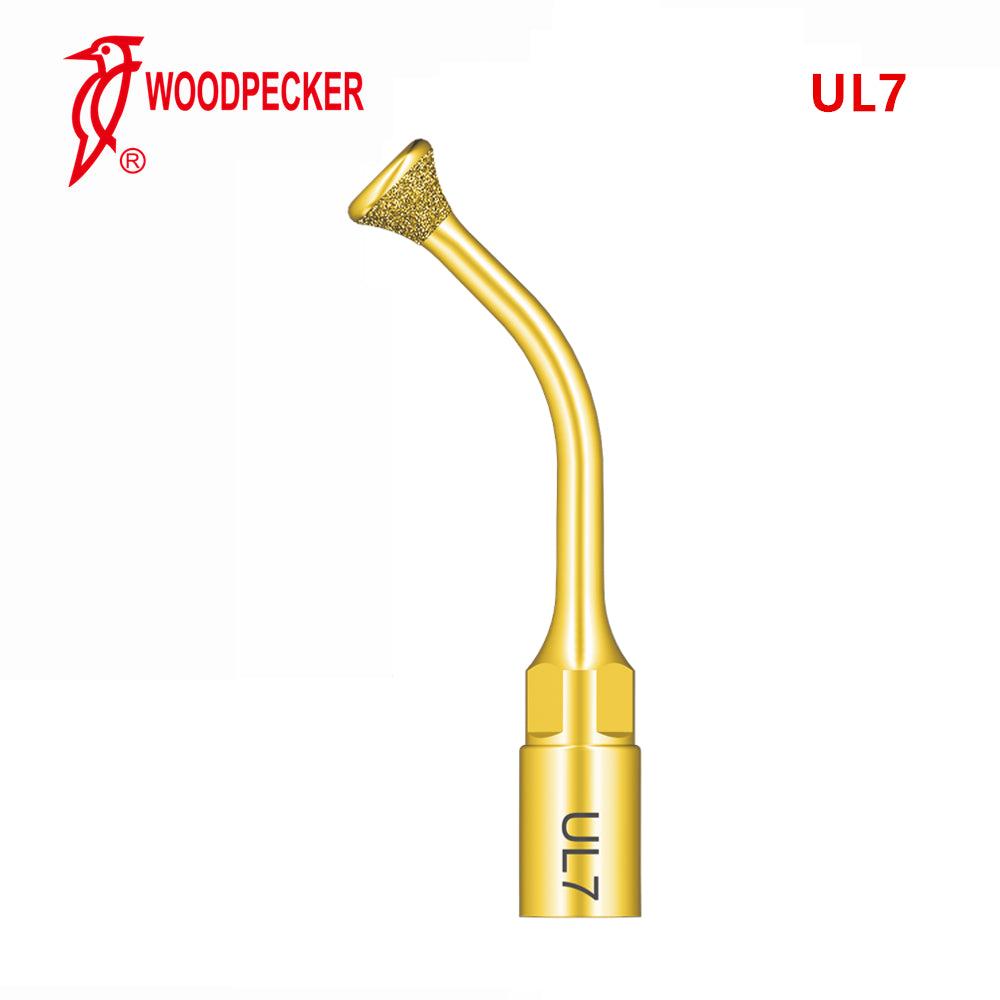

UL7
Φ4.5mm head with four water outlets, for better separation of the maxillary sinus periosteum. The diamond-coated portion allows for trimming of the edges of the bone window.

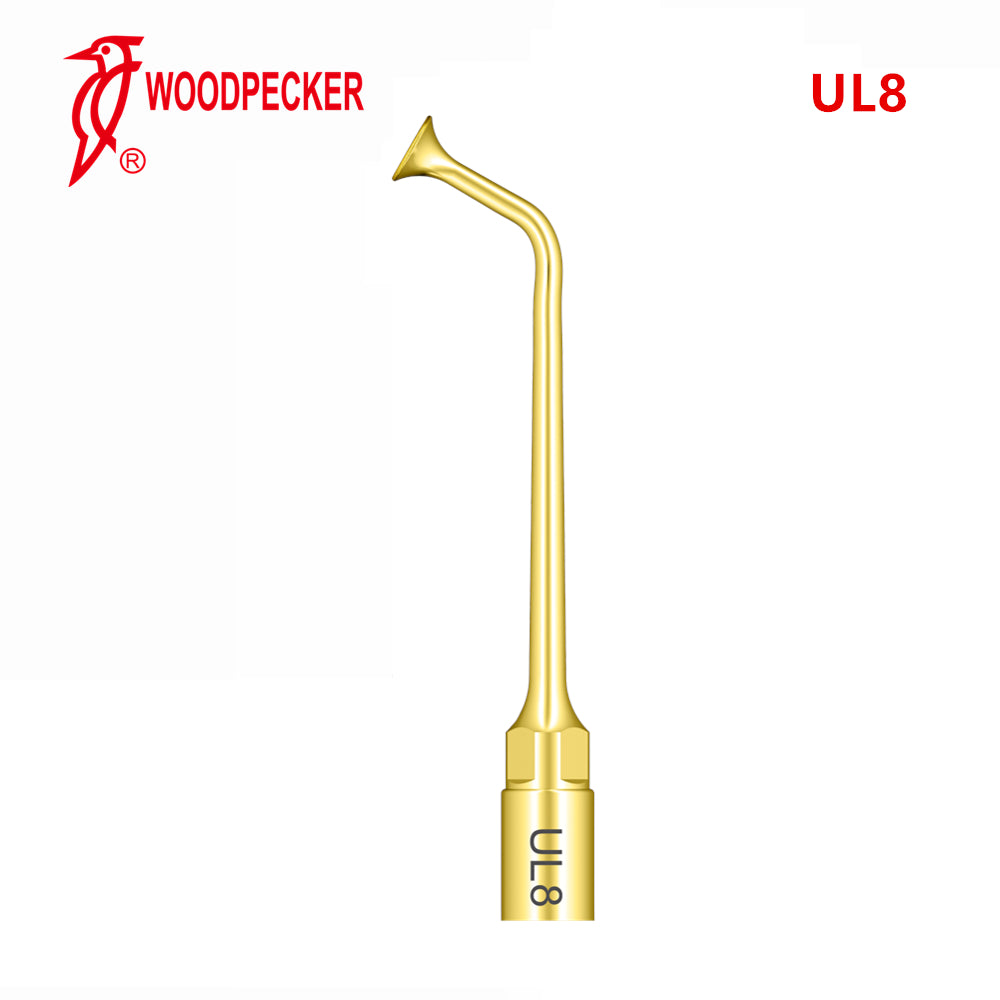

UL8
Diamond-coated (100μm) tip for fine osteotomy or osteoplasty: for non-traumatic osteotomy close to soft tissue and sensitive areas.

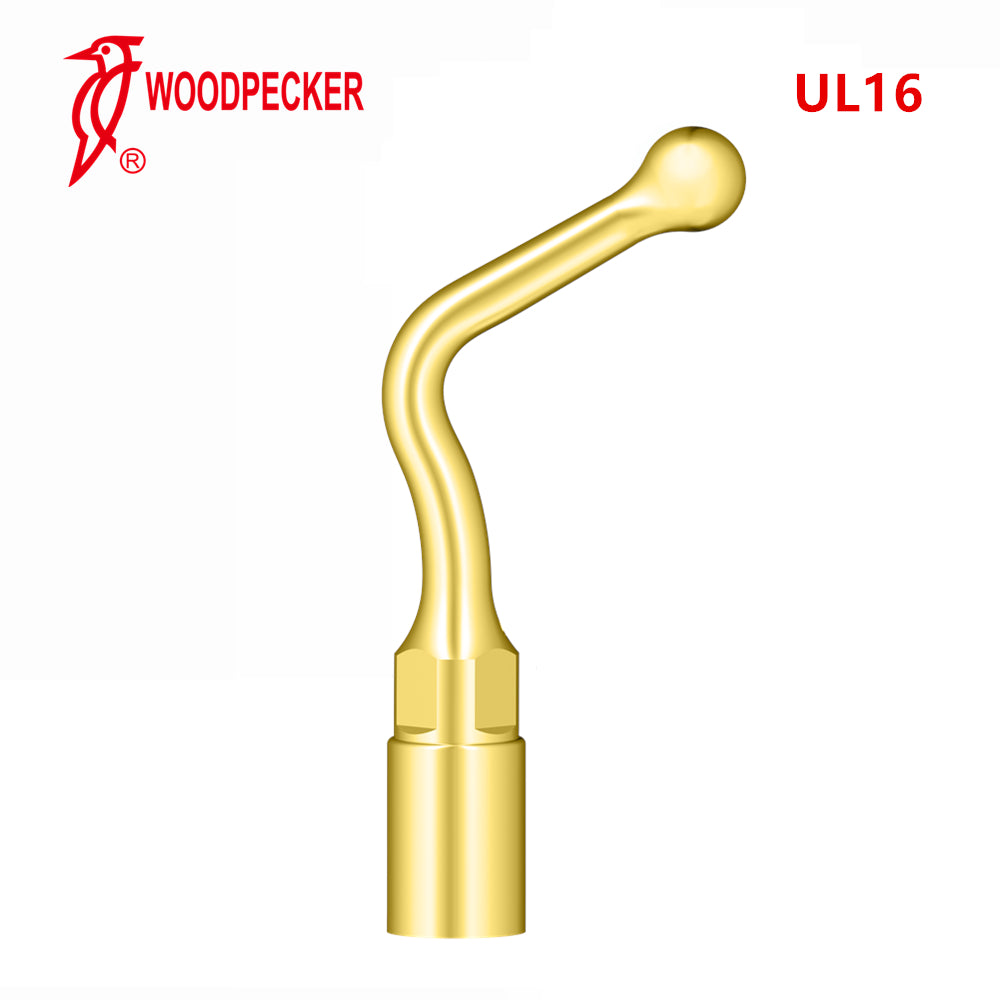

UL16
UL23

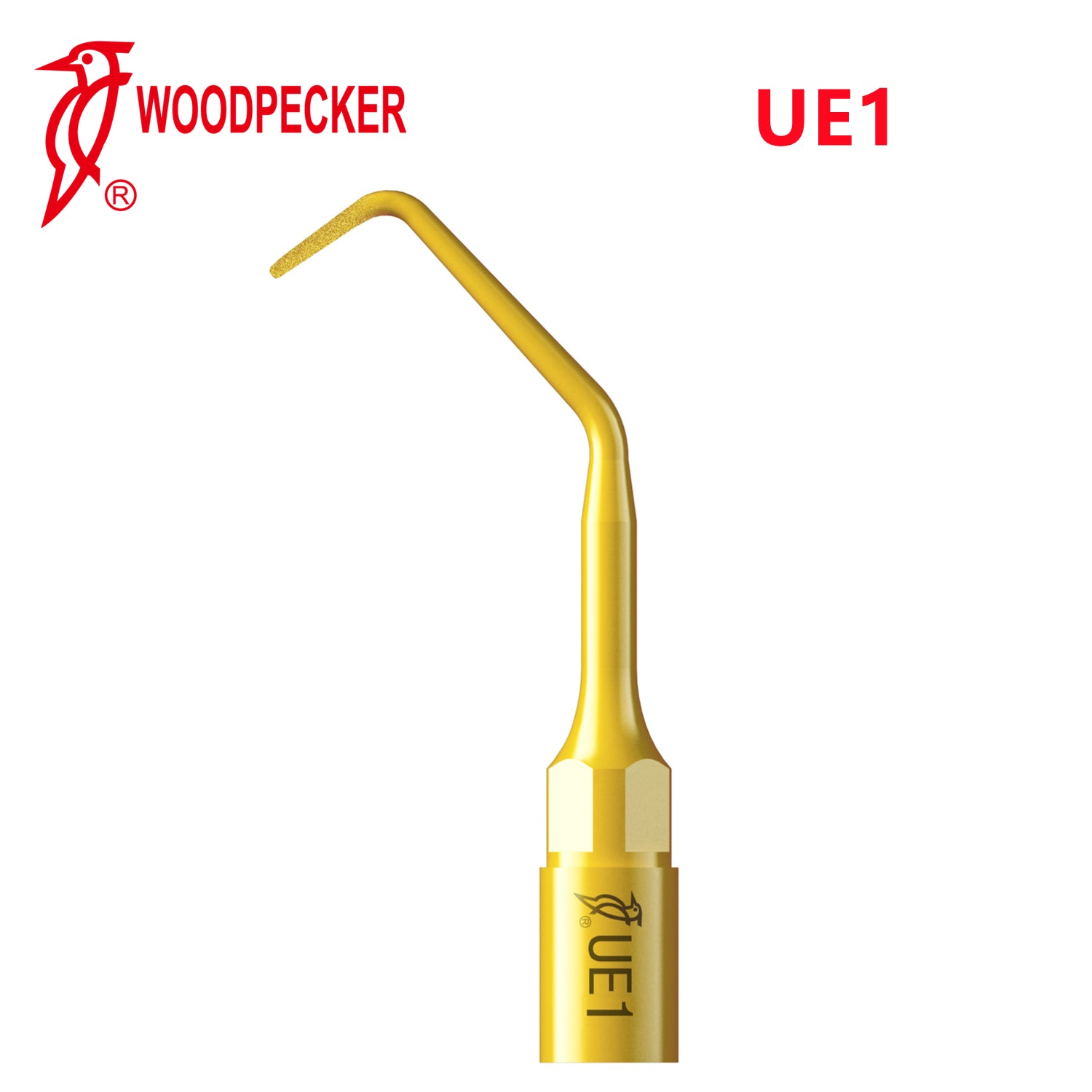

UE1
Diamond-coated (40μm) tip for apical debridement: for high-efficiency root-end preparation and apical surgery. Diamond-coated part is 3.3mm in length.

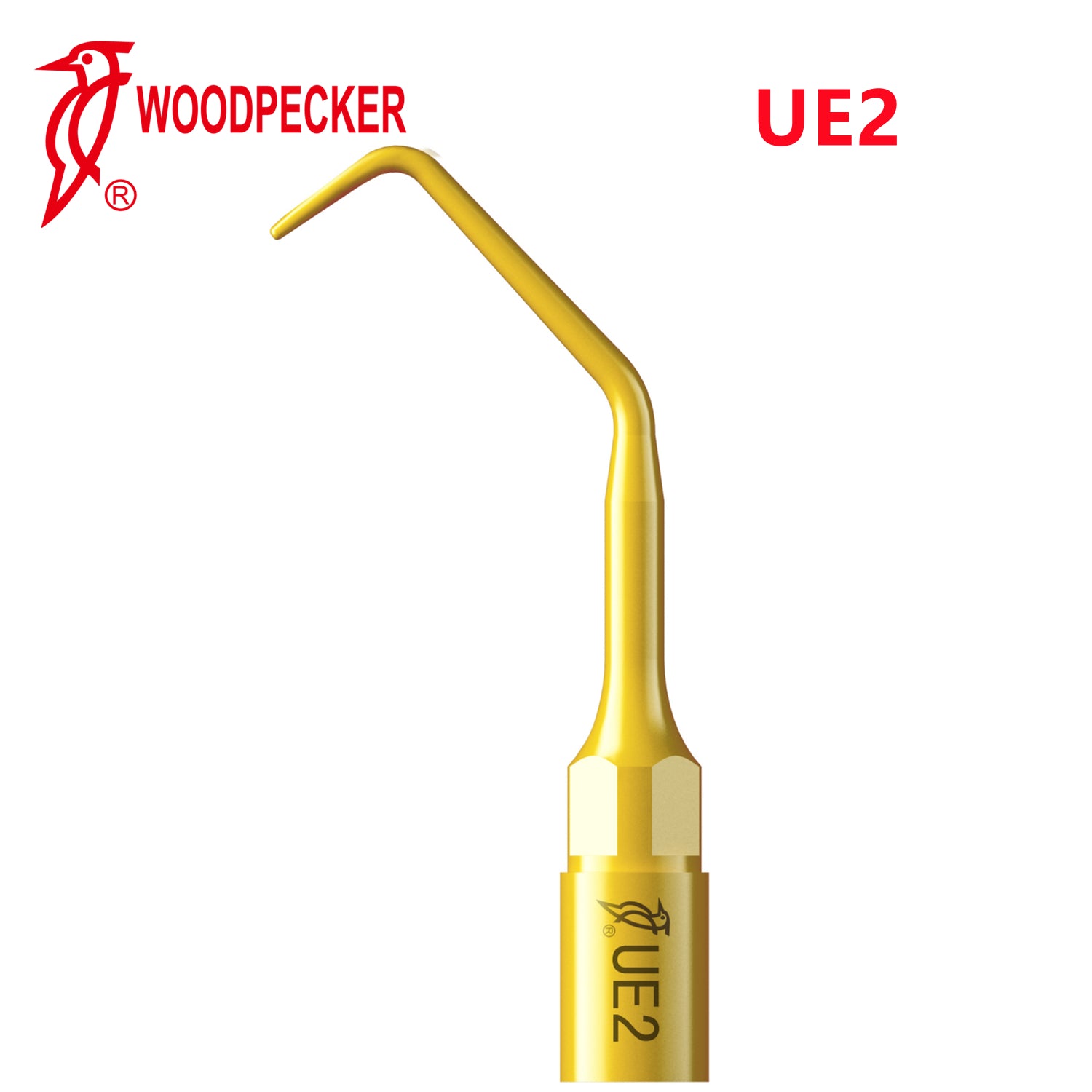

UE2
Polishing the canal wall in apical debridement. The tip smooth part is 4.5 mm in length.

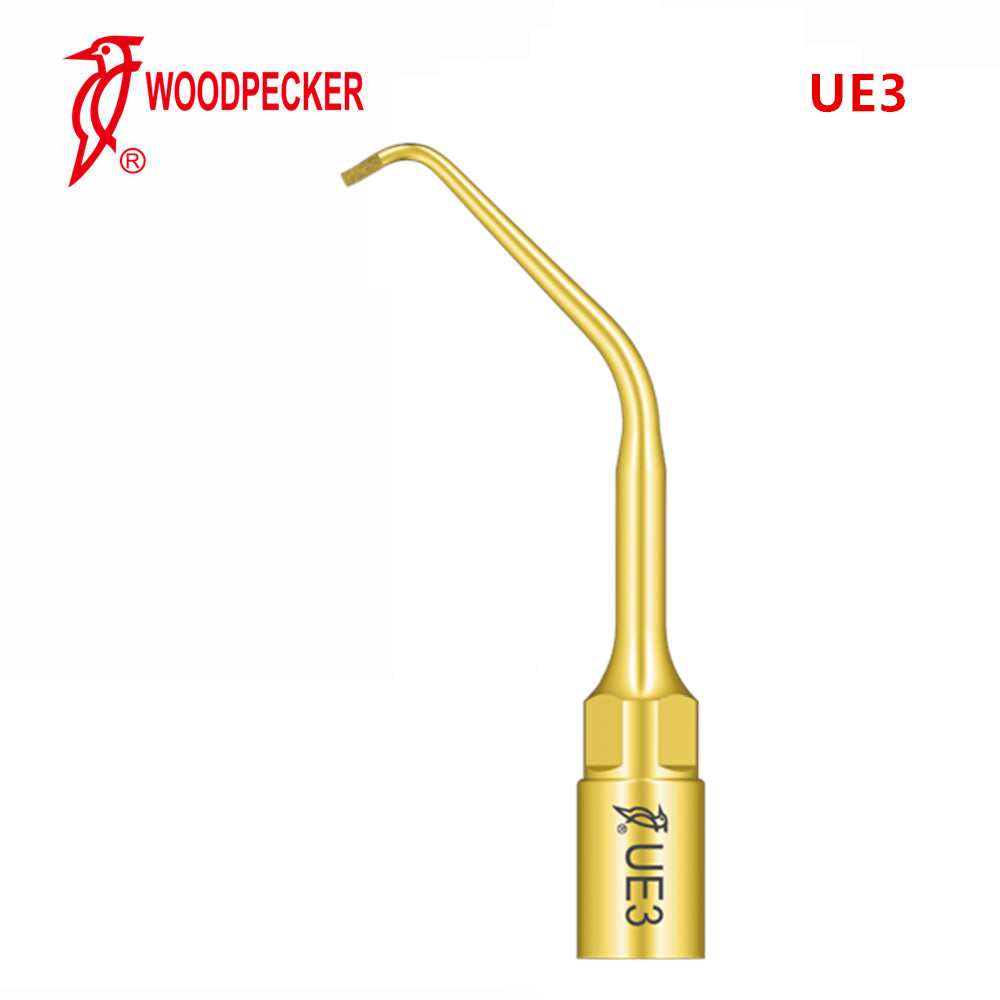

UE3
Diamond-coated (40μm) tip for apical debridement: for high-efficiency root-end preparation and apical surgery. Diamond-coated part is 2.2mm in length.

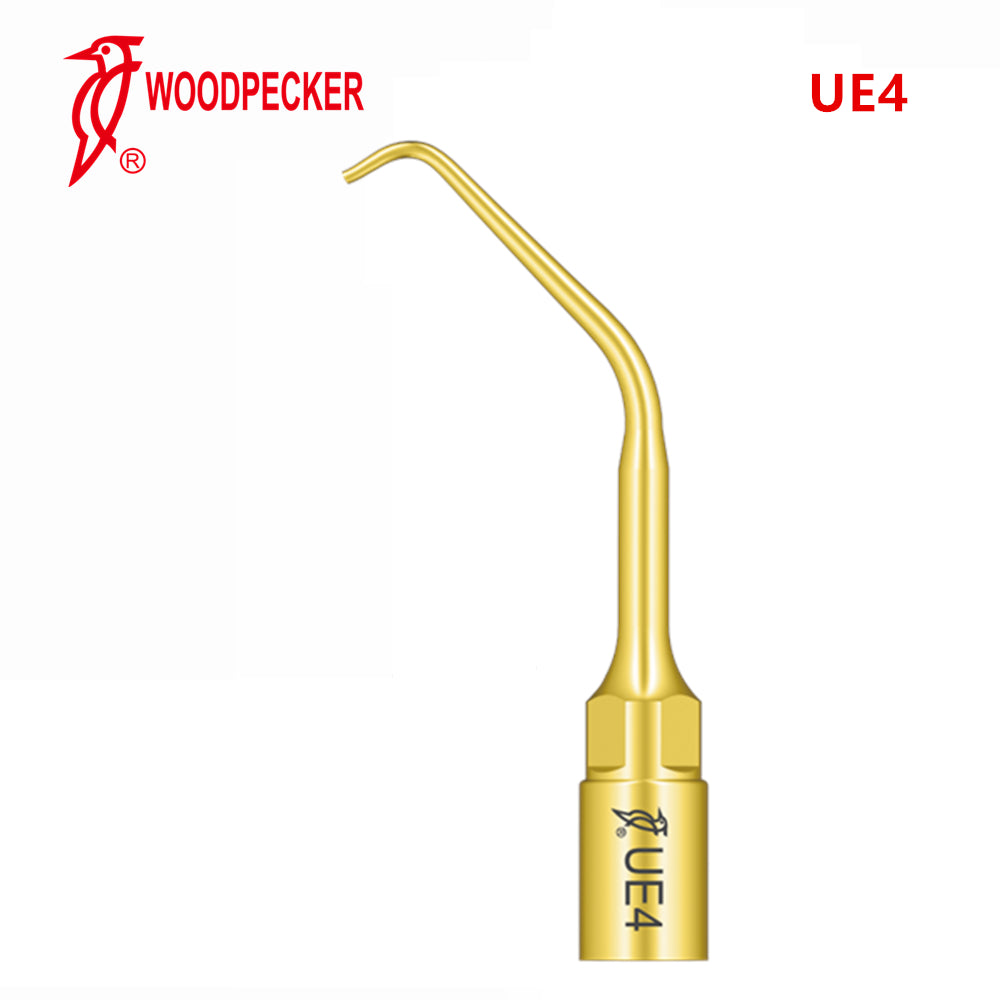

UE4
Polishing the canal wall in apical debridement. The tip smooth part is 3.5 mm in length.
UE6
Diamond-coated, for root-end preparation.
UE7
Diamond-coated, for root-end preparation.
UE8
Diamond-coated, for root-end preparation

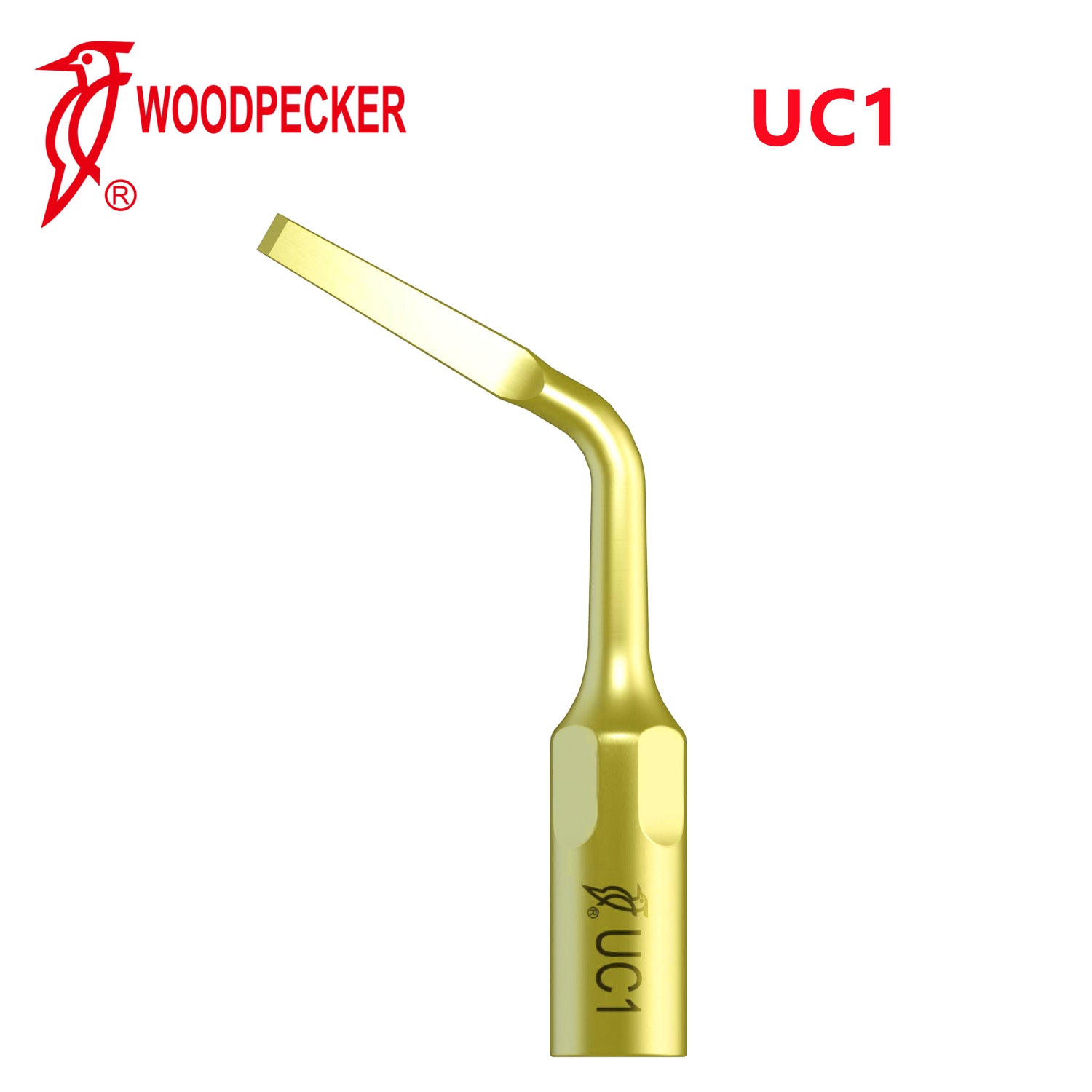

UC1
For minimally invasive removal of ligaments and root surgery.
UC2
Left-curved, for minimally invasive removal of ligaments and root surgery in posterior regions.

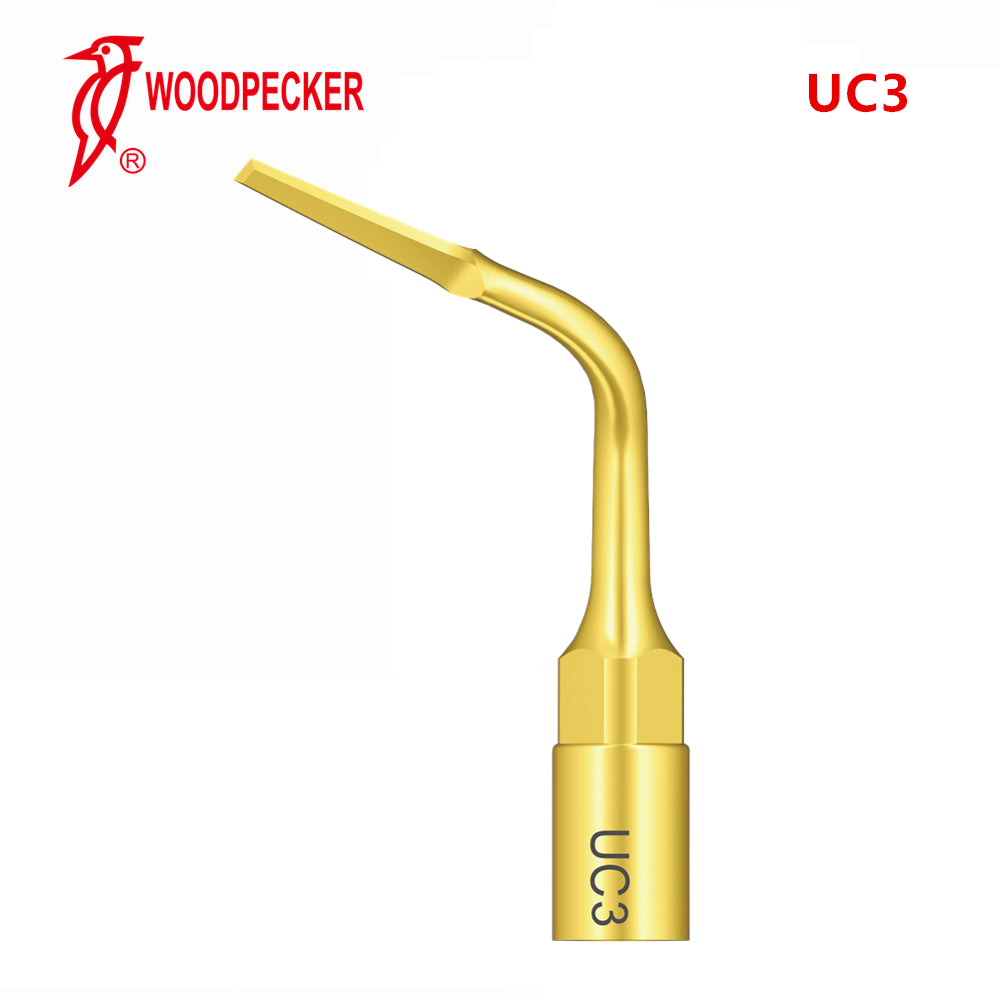

UC3
Right-curved, for minimally invasive removal of ligaments and root surgery in posterior regions.
UC4
For distal ligament cutting, minimally invasive extraction.
UC5
For minimally invasive cutting of ligaments and gap increase in tooth extraction, especially suitable for the extraction of wisdom teeth with an oblique angle.
UC6
For tooth extraction and alveolar bone splitting.
UC7
For tooth extraction and alveolar bone splitting.
UC8
For minimally invasive cutting of ligaments and gap increase in tooth extraction, with a very sharp and pointed tip extremity.
UI1
For implant preparation, with Φ1.6mm head and 9mm tip working length.
UI2
For implant preparation, with Φ2mm head. There is water out from the tip center to avoid overheating.
UI3
Φ2mm implant preparation tip used in the anterior regions, with sharp tip extremity and water out from the center.
UI4
Φ3mm implant preparation tip used in the anterior regions, with sharp tip extremity and water out from the center.

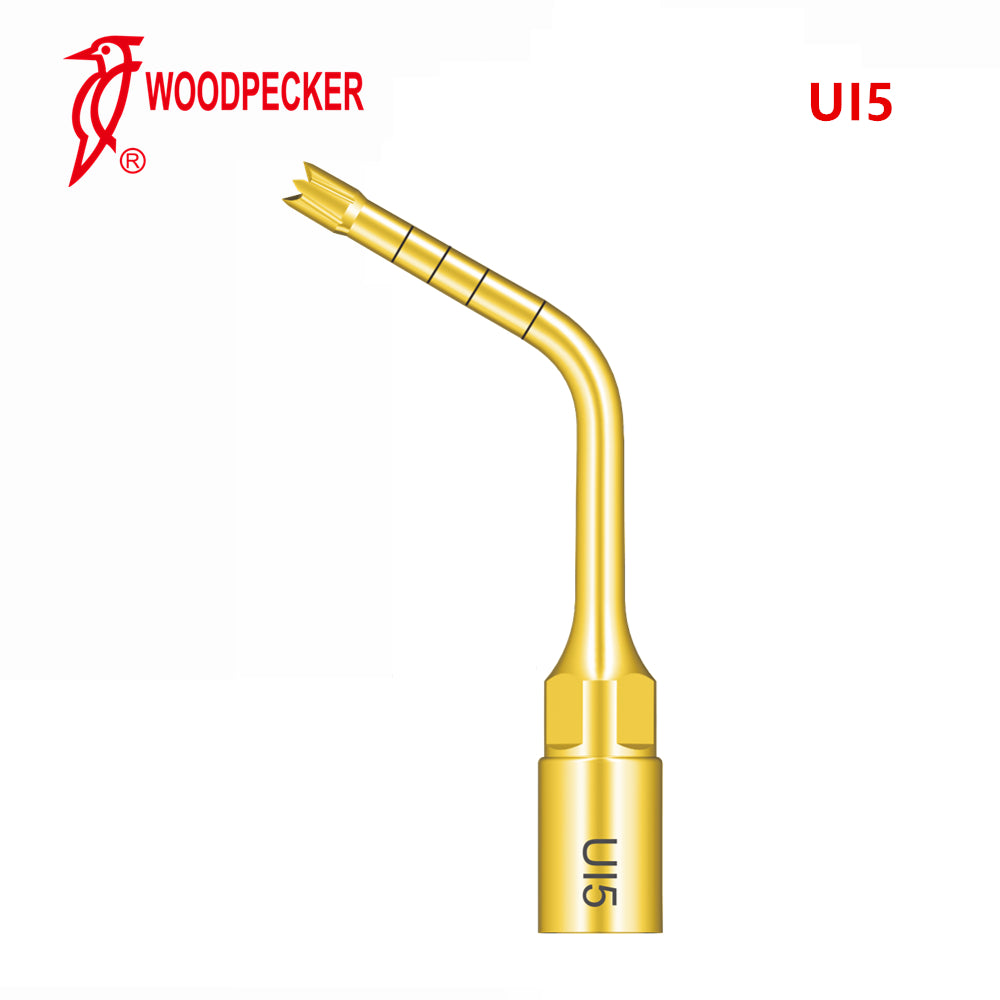

UI5
Φ2mm implant preparation tip used in the posterior regions, with sharp tip extremity and water out from the center.

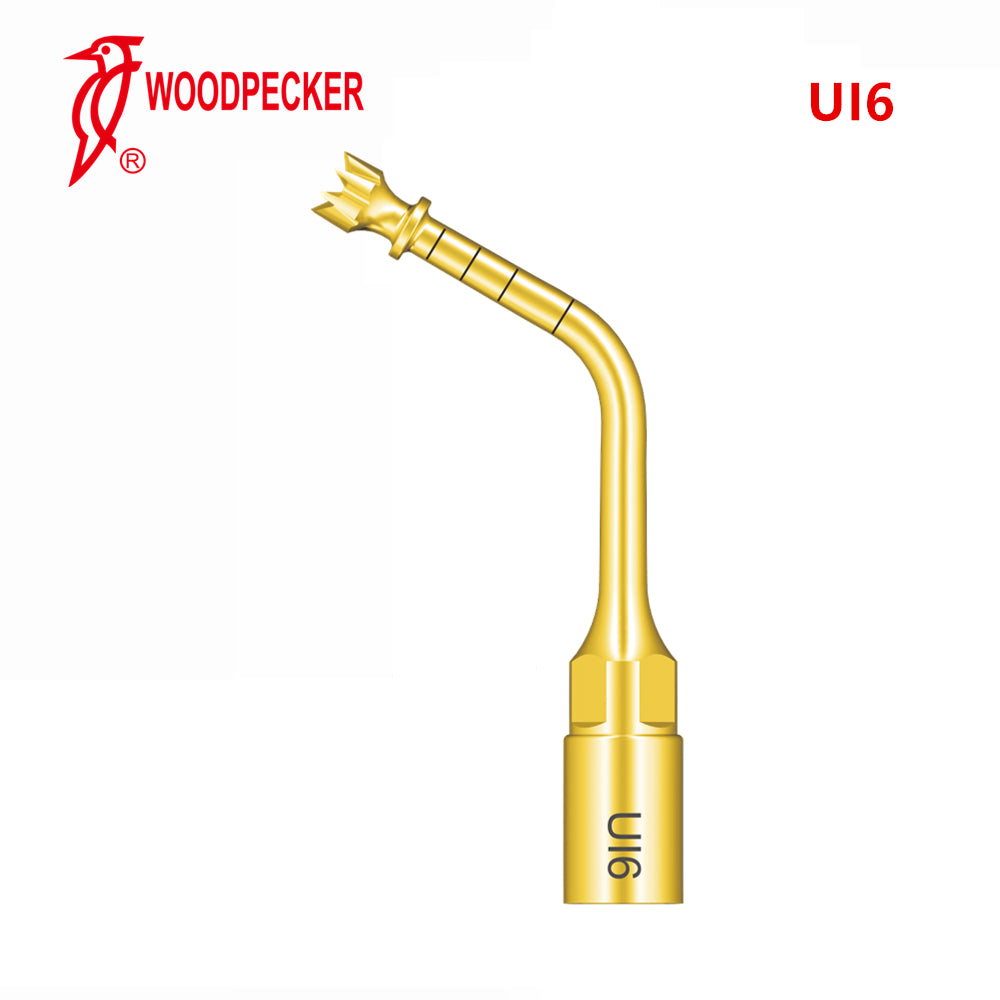

UI6
Φ3mm implant preparation tip used in the posterior regions, with sharp tip extremity and water out from the center.
UI7
Diamond-coated (85μm), for finalizing implant site bone preparation close to the alveolar nerve.
UI8
For implant preparation, with Φ1.6mm head and 9mm tip working length.
UI9
For implant preparation, with Φ2.8mm head. There is water out from the tip center to avoid overheating.

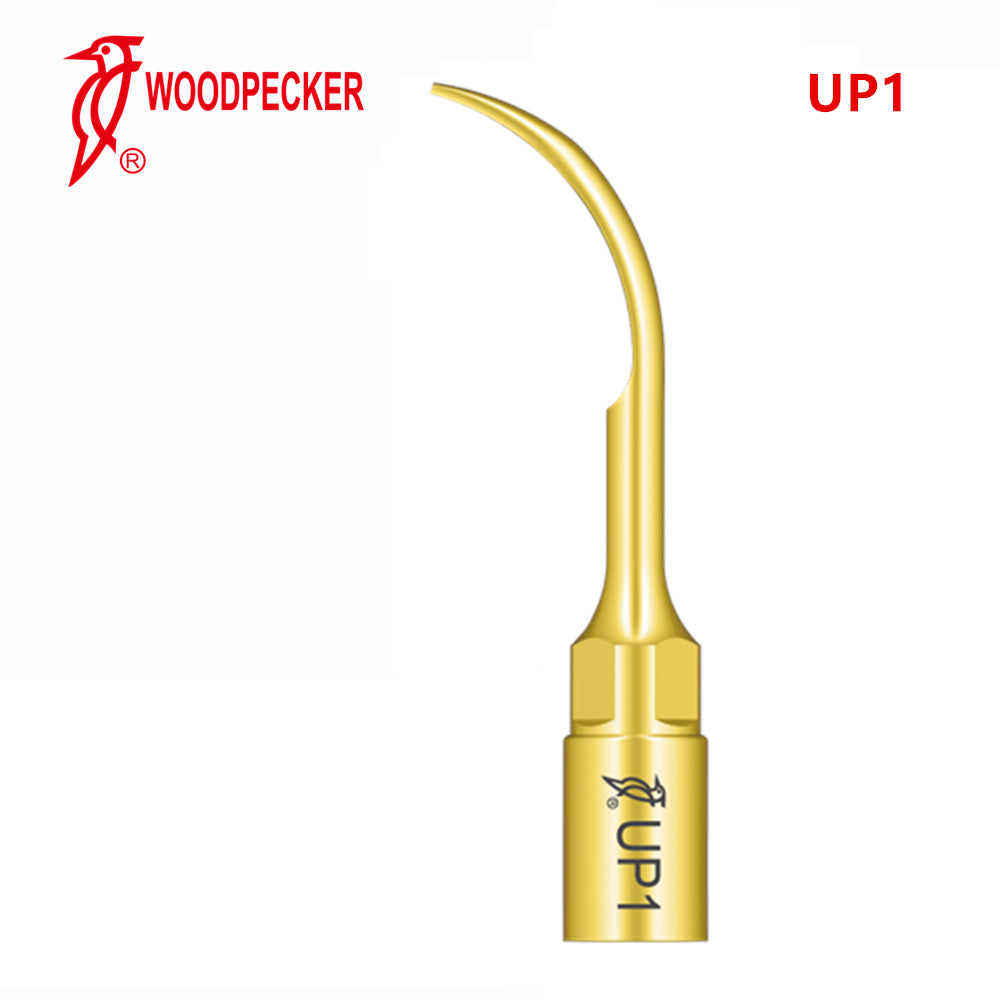

UP1
For gentle scaling in periodontal surgery.

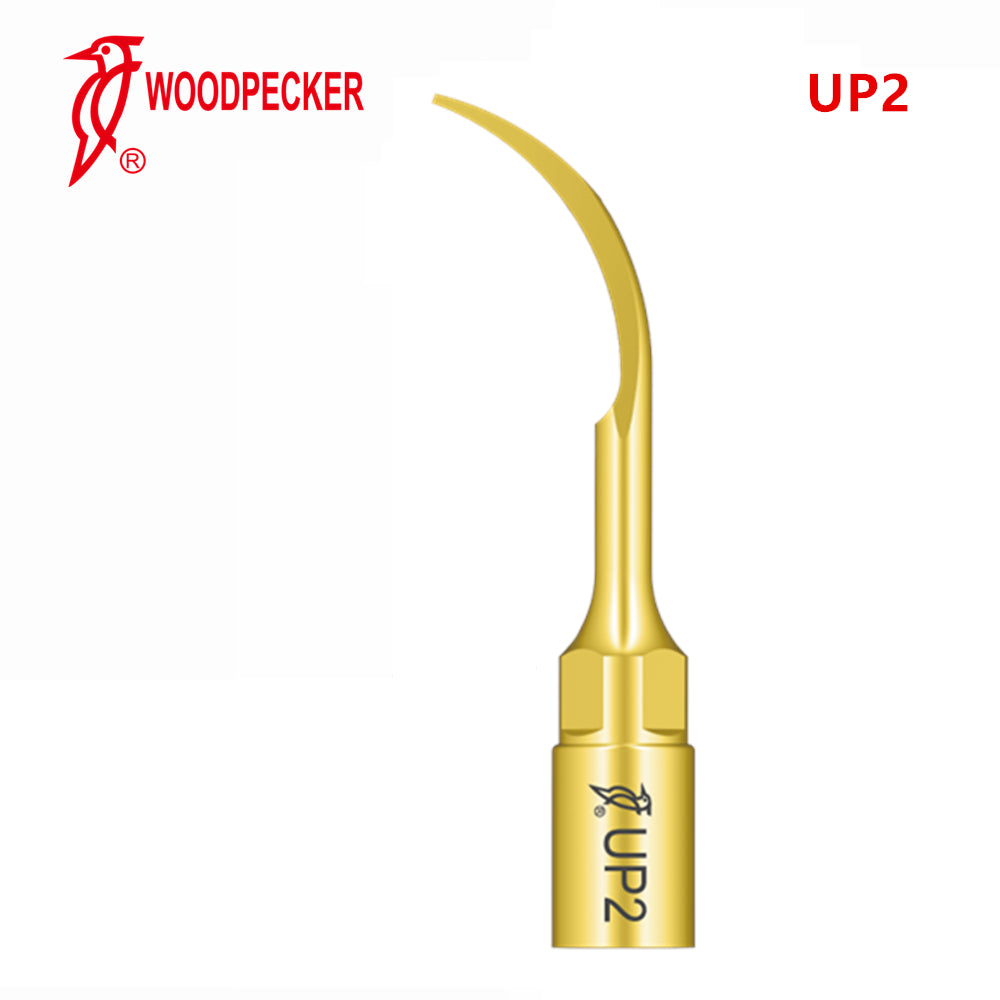

UP2
For fractured root apex extraction and inflammatory tissue removal.

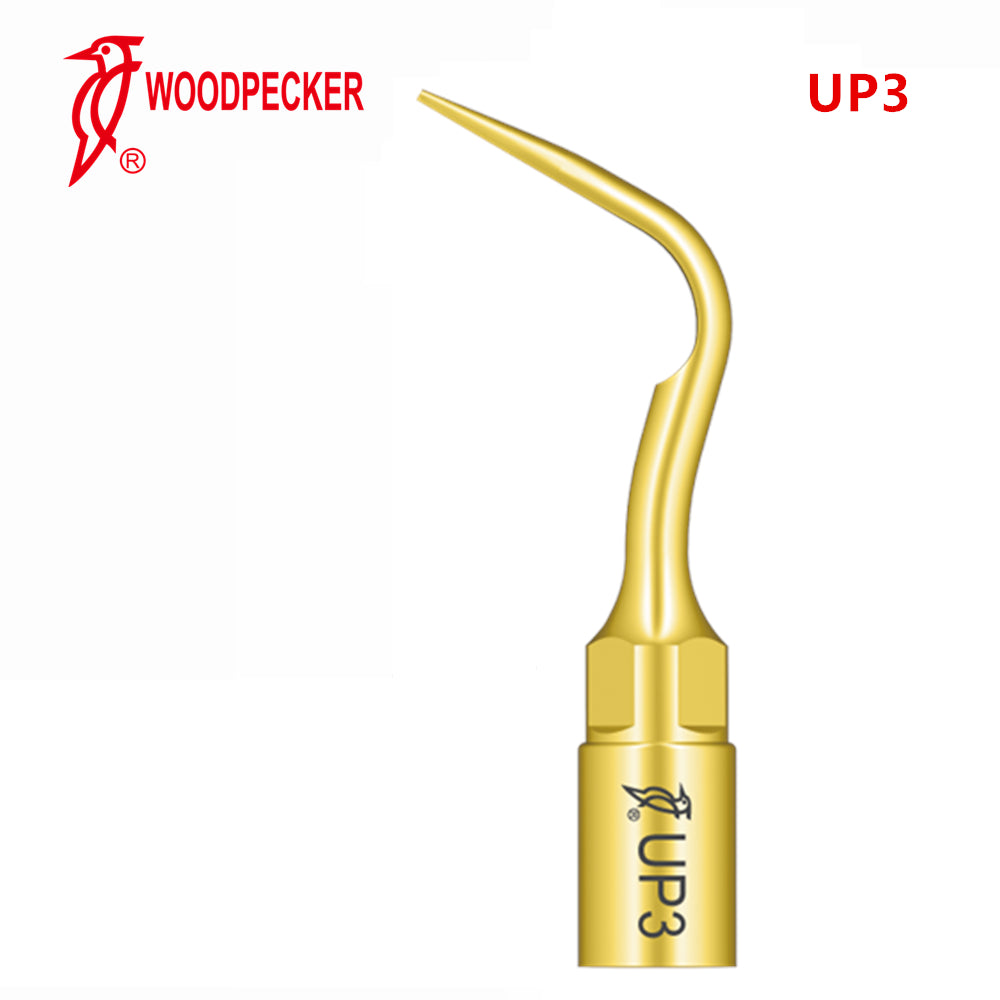

UP3
For multi-angled gentle scaling in periodontal surgery.

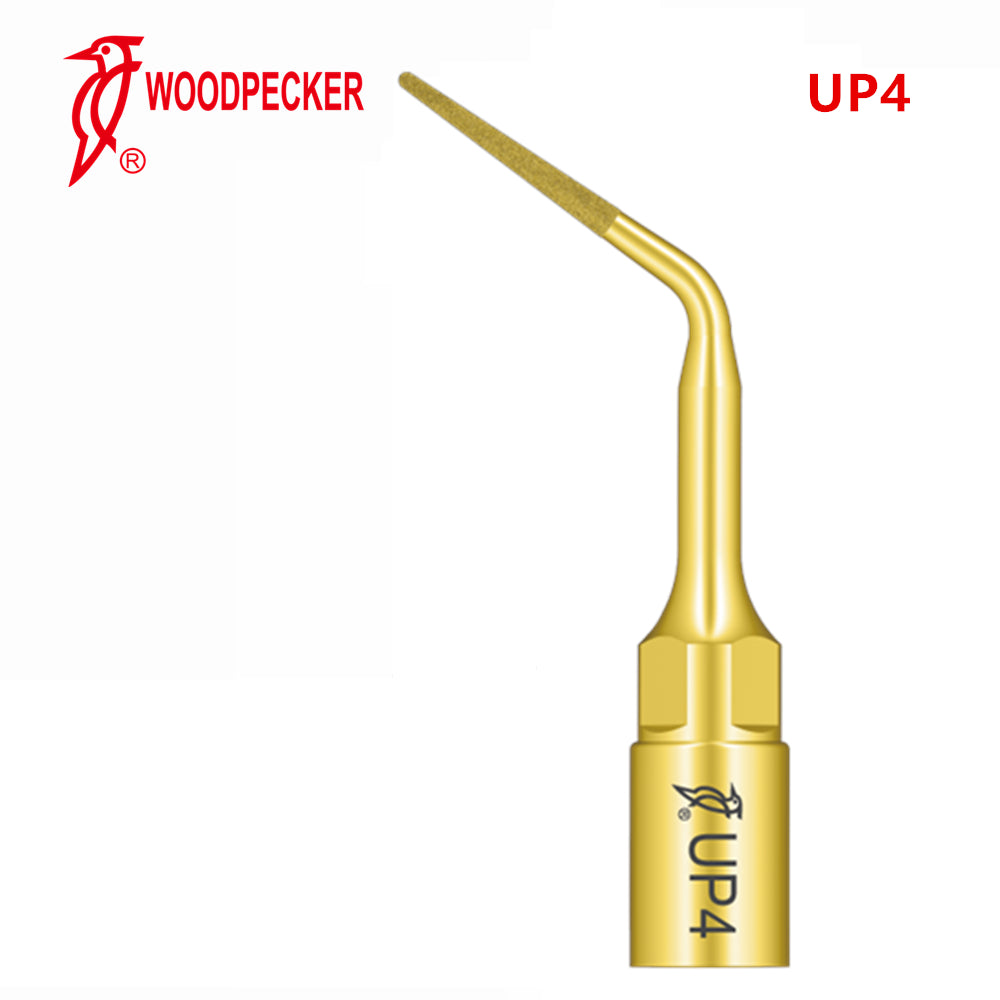

UP4
Diamond-coated (40μm), for apical debridement and root planning.

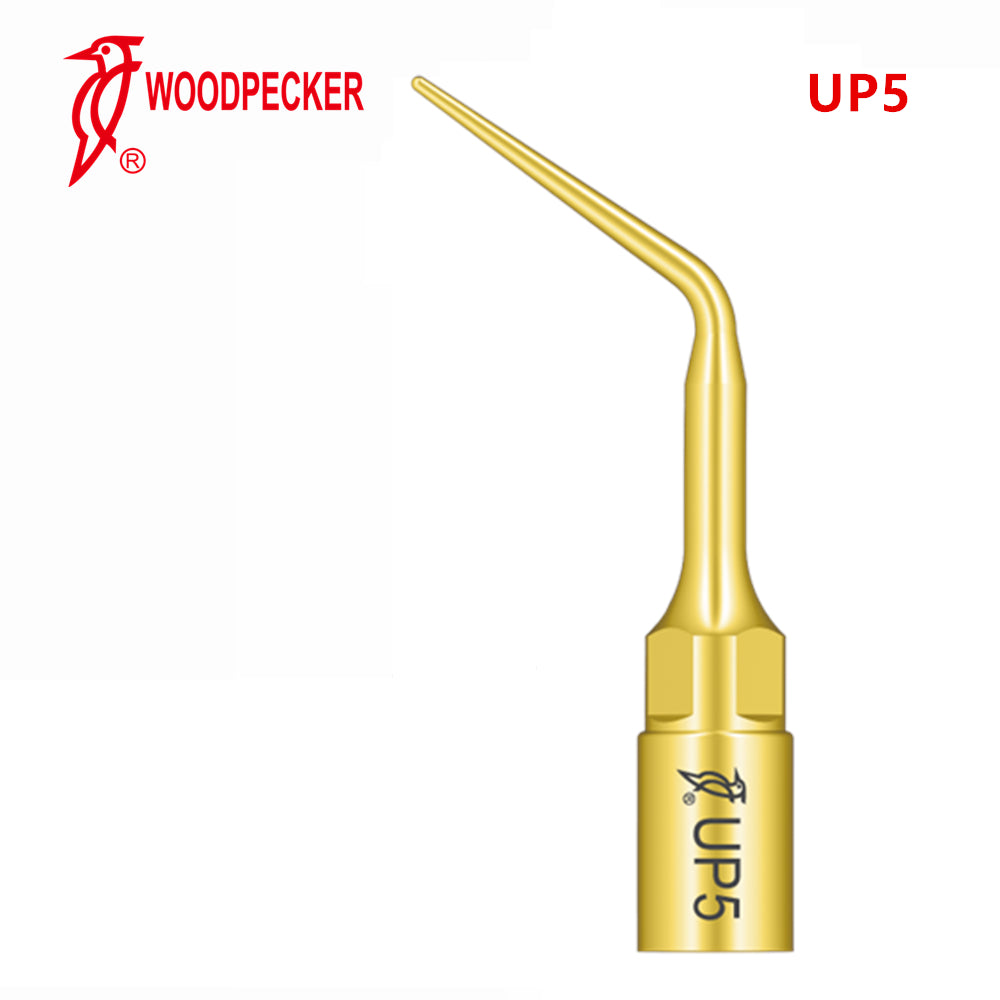

UP5
For fine root planning.

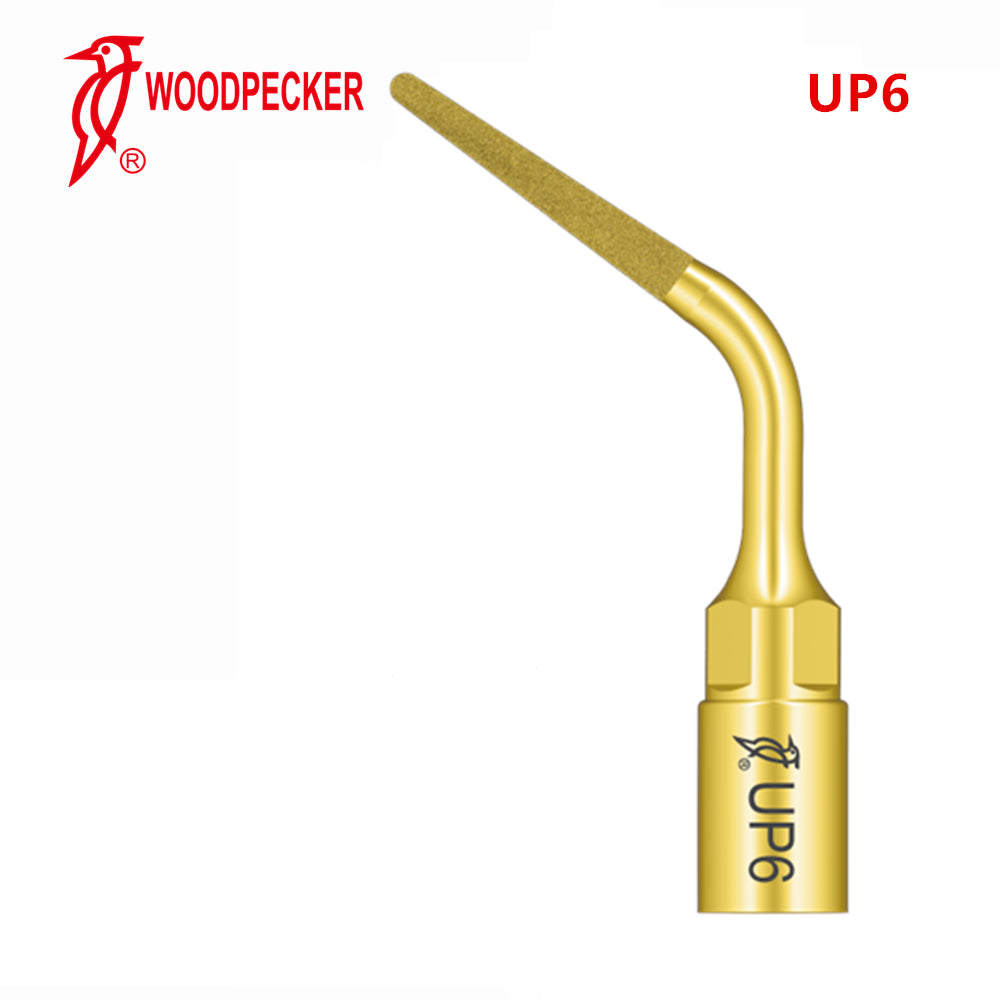

UP6
Diamond-coated (40μm) tip for fine osteoplasty: interproximal osteoplasty and root planning.

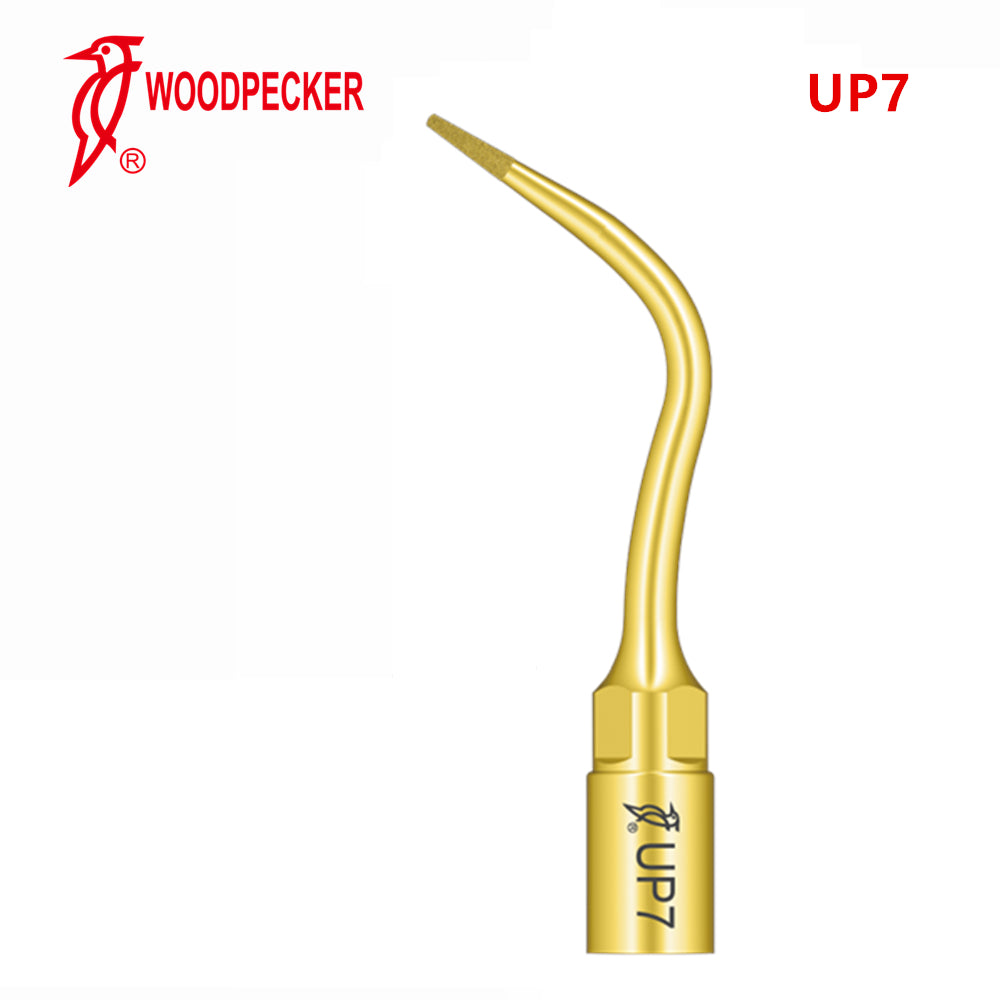

UP7
Diamond-coated (40μm), for root canal locating and removal of calcifications in the coronal 1/3 part of root canal, and can also be used for fine osteoplasty.
