Description
SS--for Osteotomy SL-for Sinus Lifting
SE-for Endodontics Unit SC-for Extraction
SI-for Implantation SP-for Periodontal Surgery
All tips are individual single package

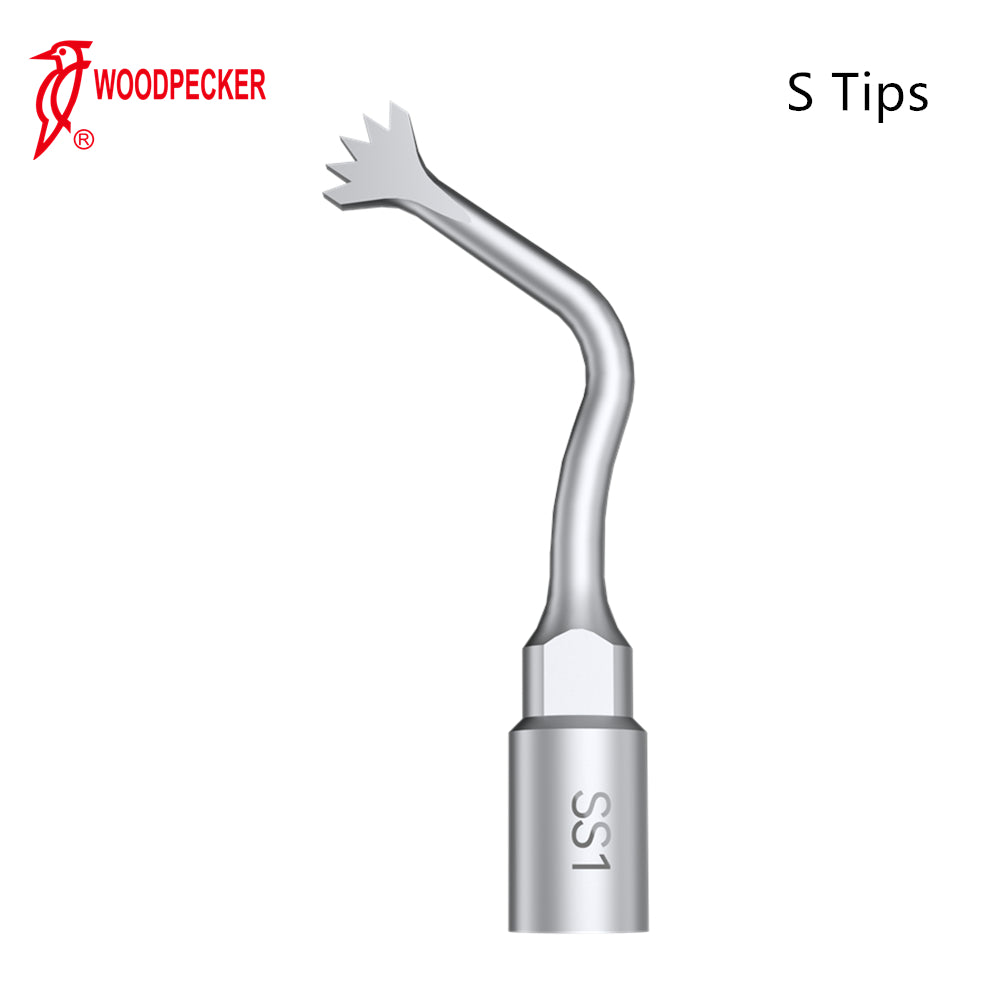

SS1
Efficient osteotomy for larger bone sections in maxillofacial surgery and also for incisional extraction of wisdom teeth.

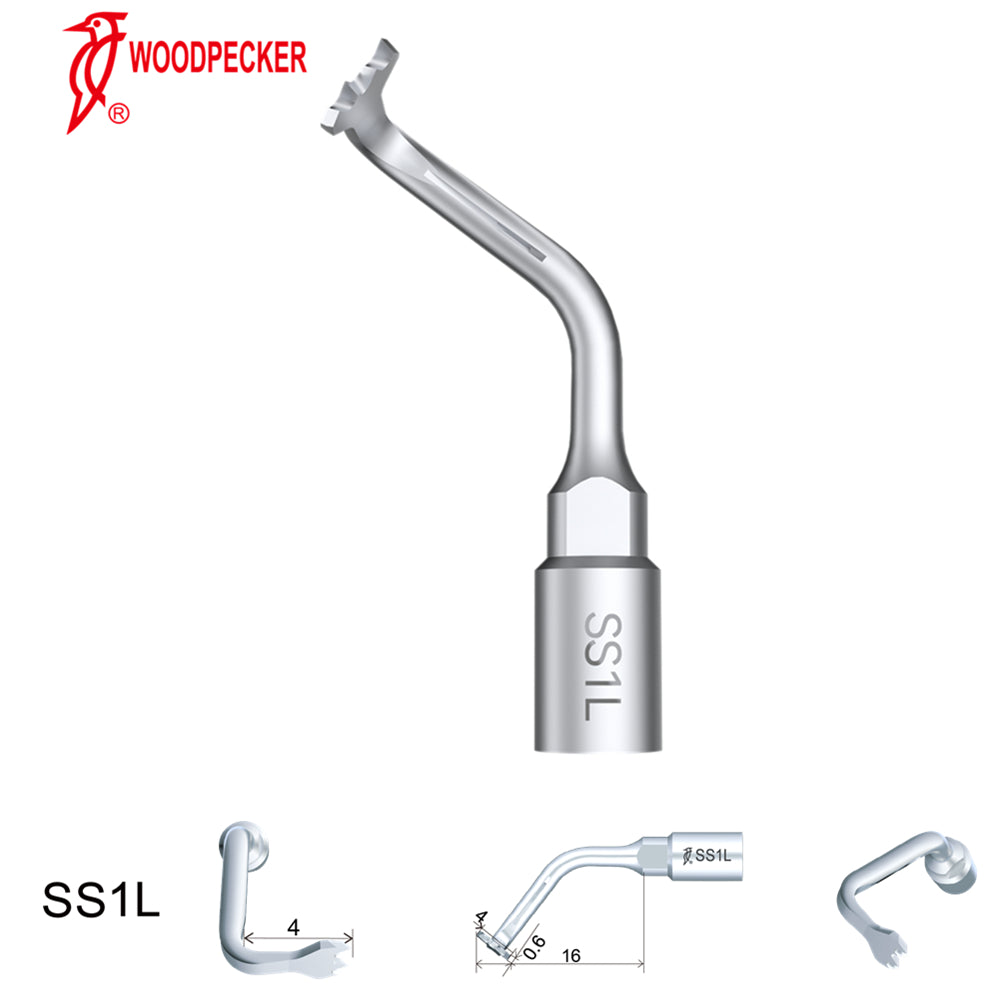

SS1L
Left angle 90°, osteotomy on the maxilla and mandible.

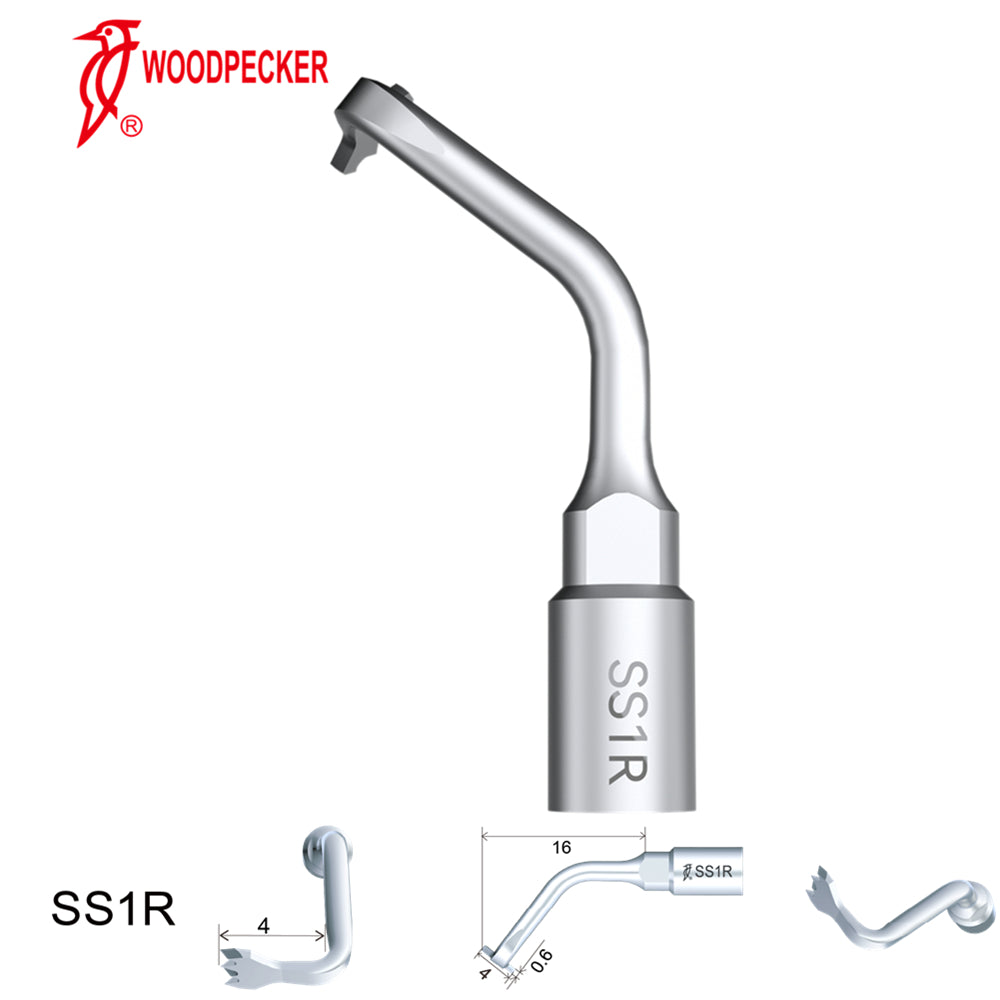

SS1R
Right angle 90°, osteotomy on the maxilla and mandible.

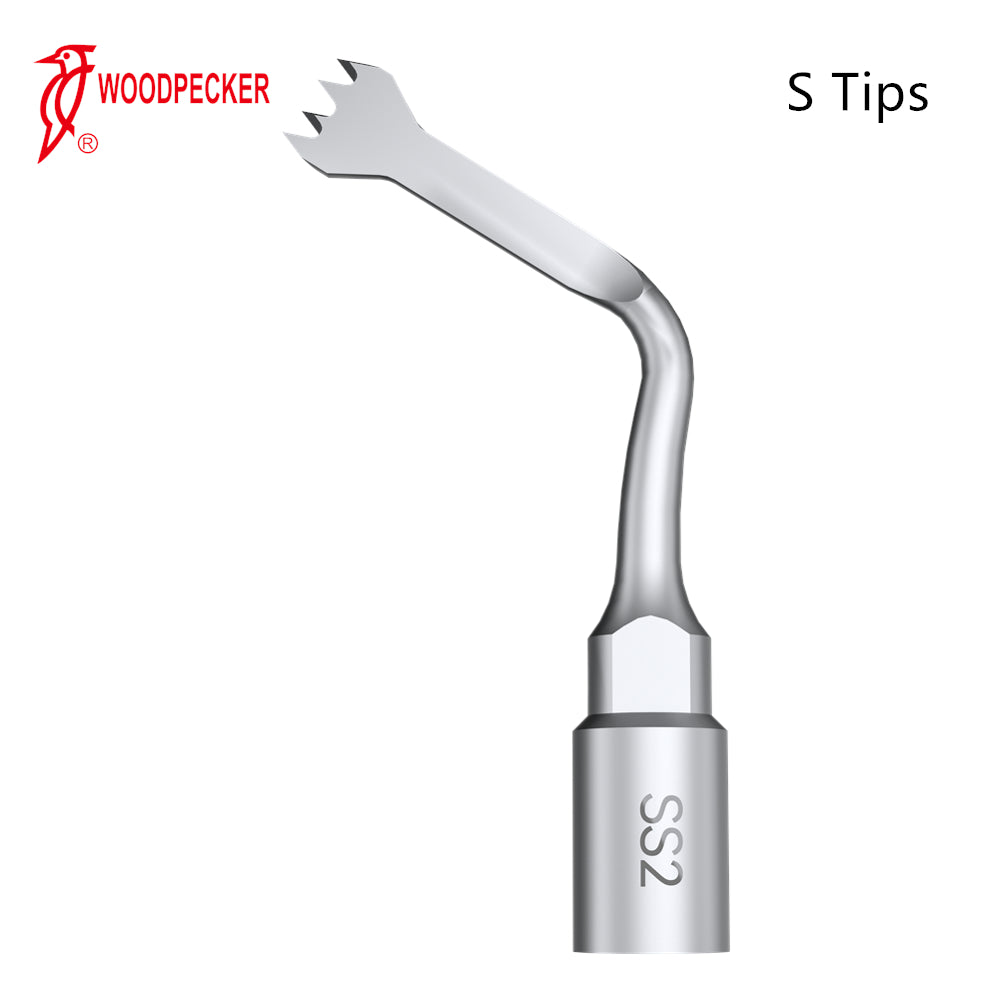

SS2
High-effectiveness osteotomy on the maxilla and mandible (ridge expansion, corticotomy, bone grafting).

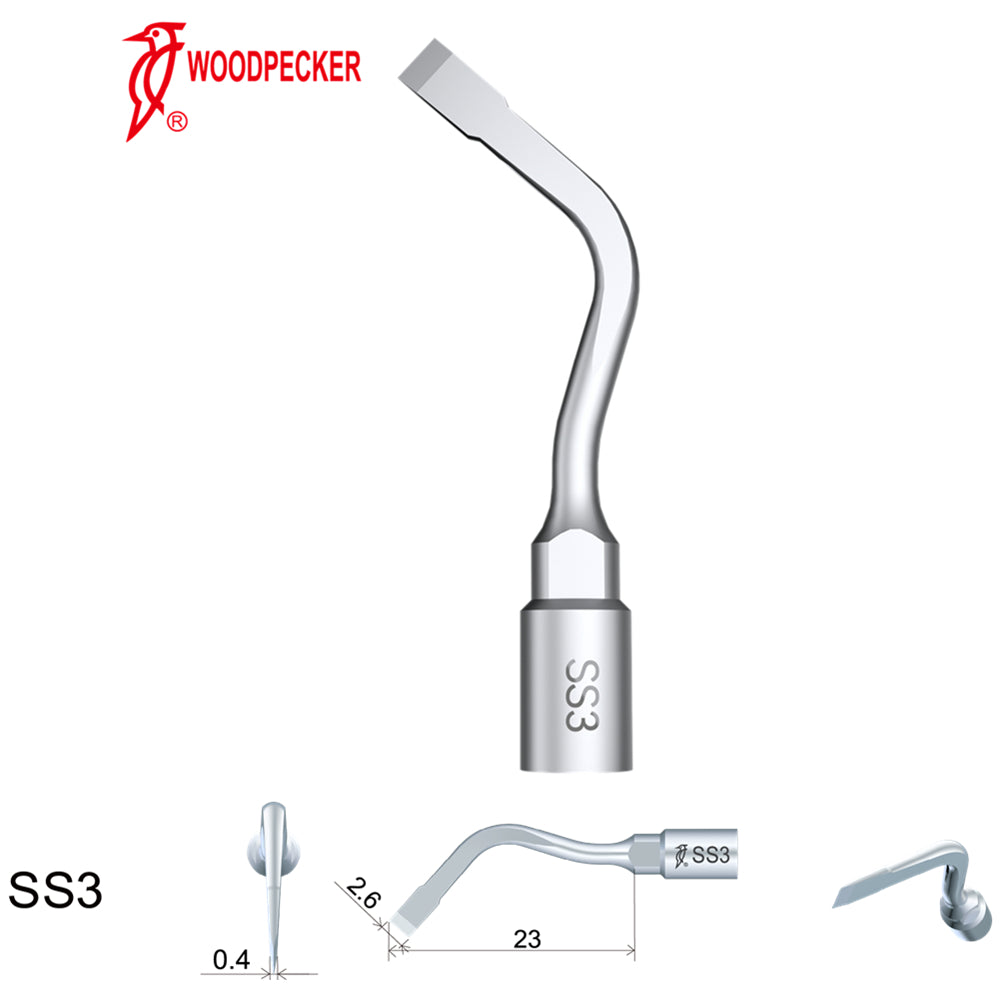

SS3
Osteotomy: Osteotomy of high precision in anatomically thin structures.

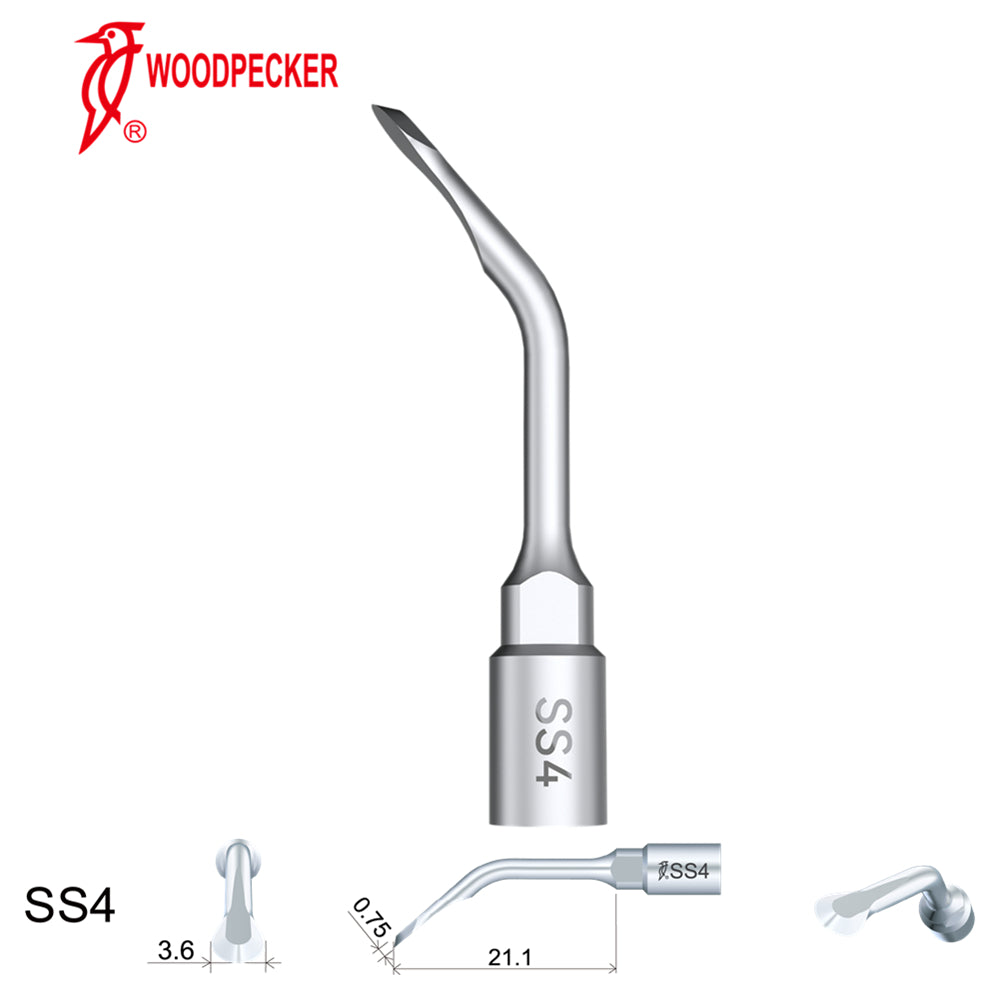

SS4
Universal osteoplasty: periodontal ostectomy, harvesting of bone particles or chips, inflammatory tissue removal.

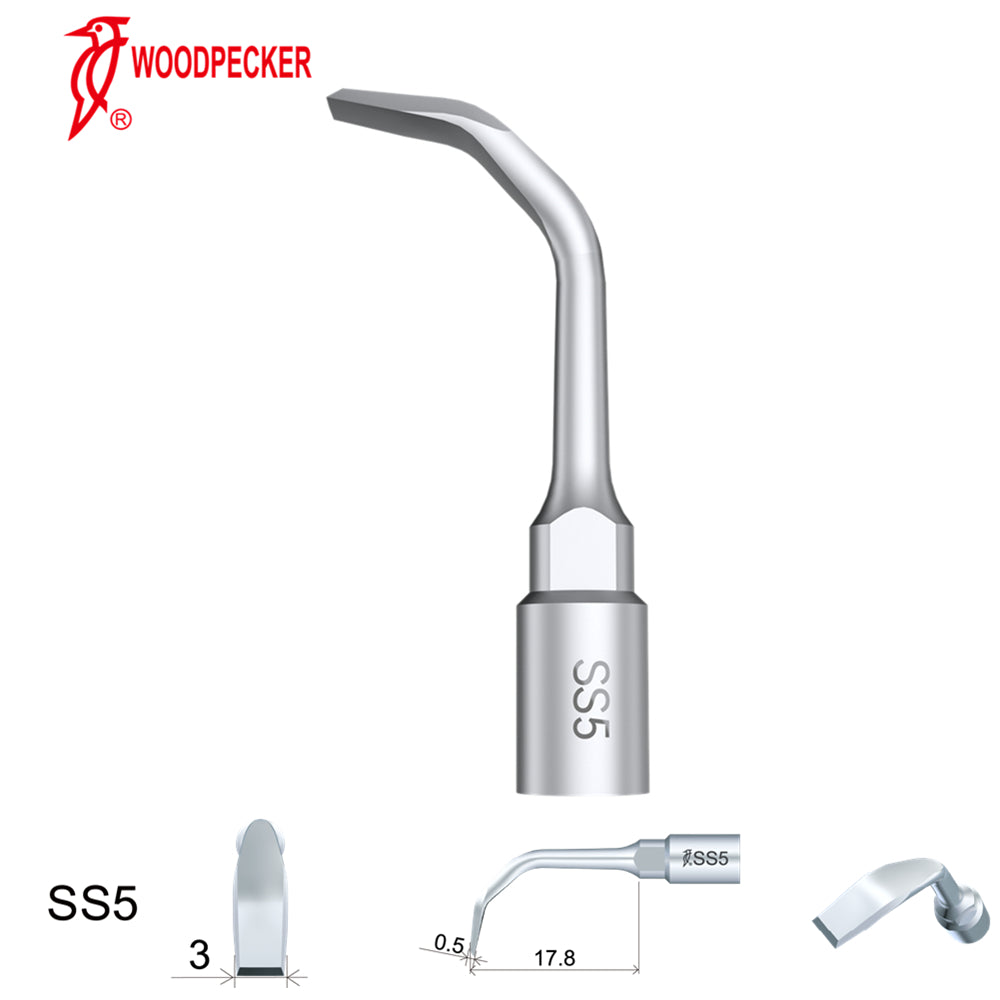

SS5
High-efficiency osteoplasty: for bone remodeling or harvesting of bone particles or chips.

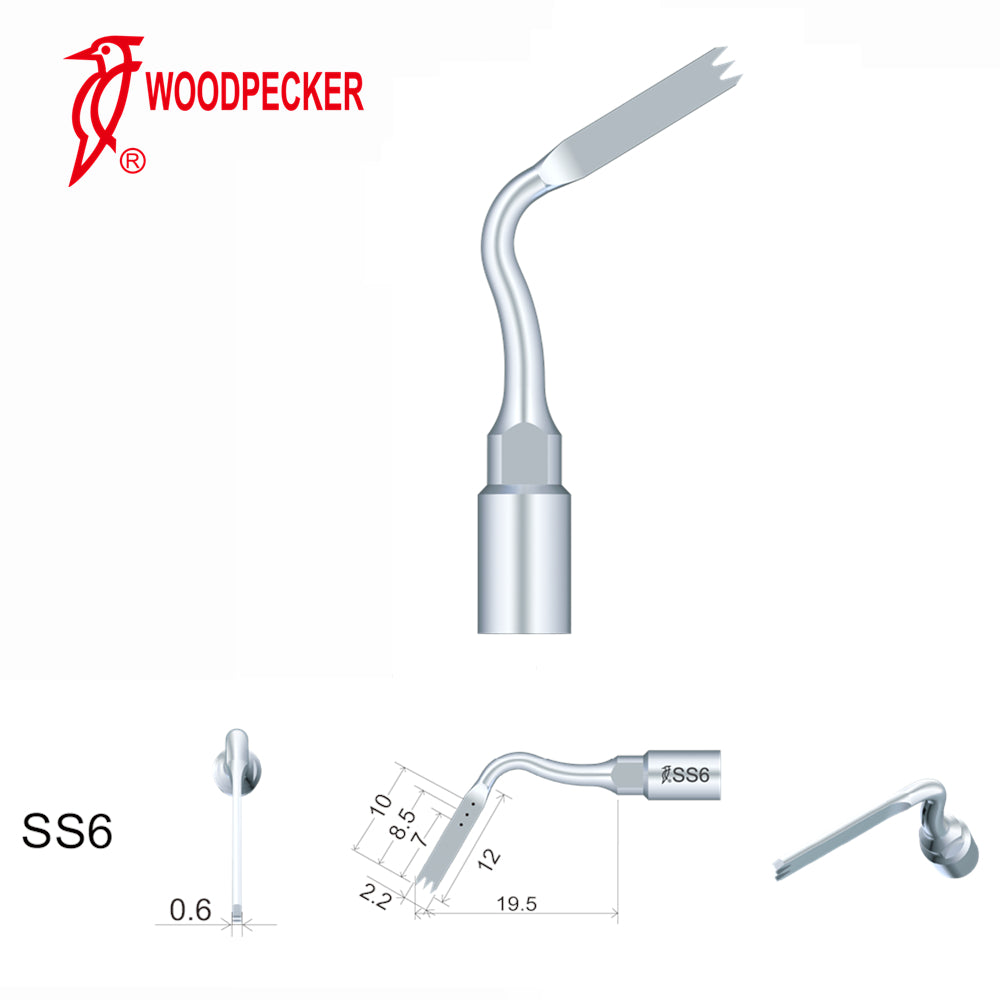

SS6
Osteotomy: Osteotomy of high precision in anatomically thin structures (ridge expansion, corticotomy).

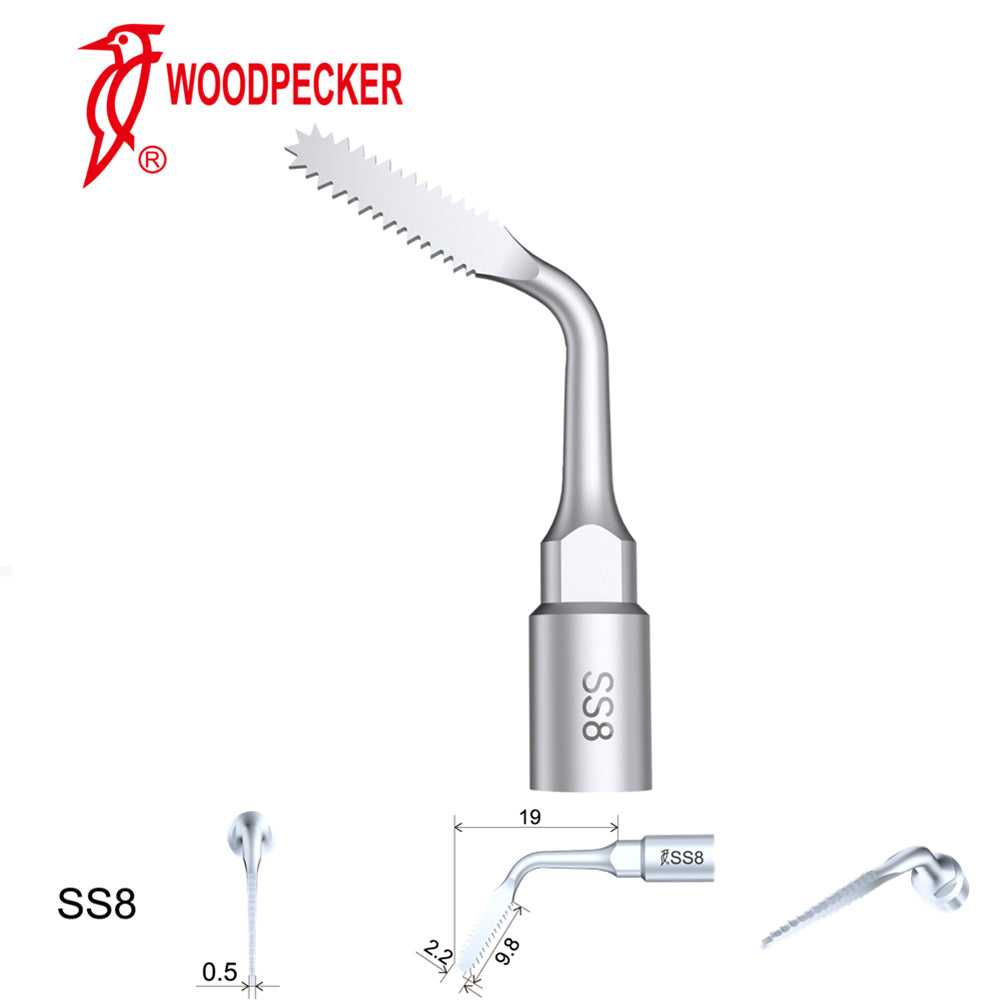

SS8
Multi-faceted distribution of blade teeth, suitable for various osteotomies.

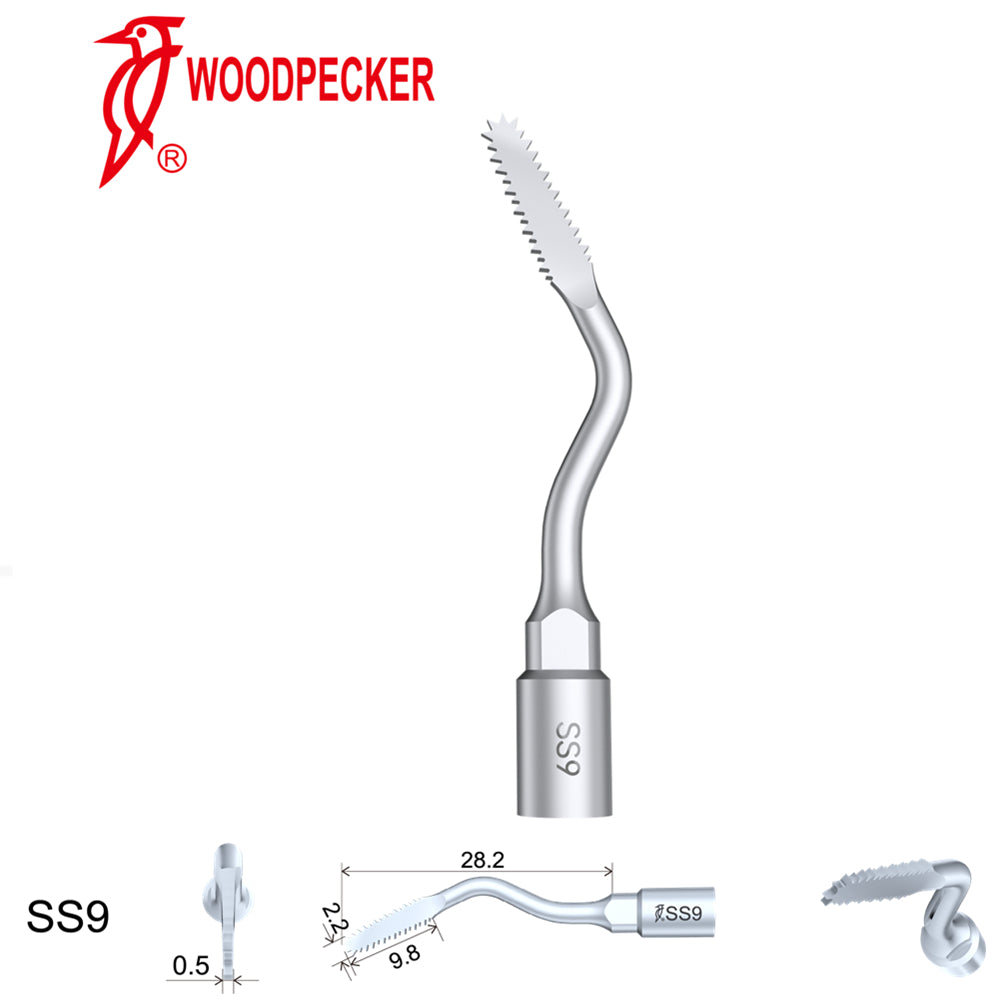

SS9
Multi-faceted distribution of blade teeth, suitable for various osteotomies.

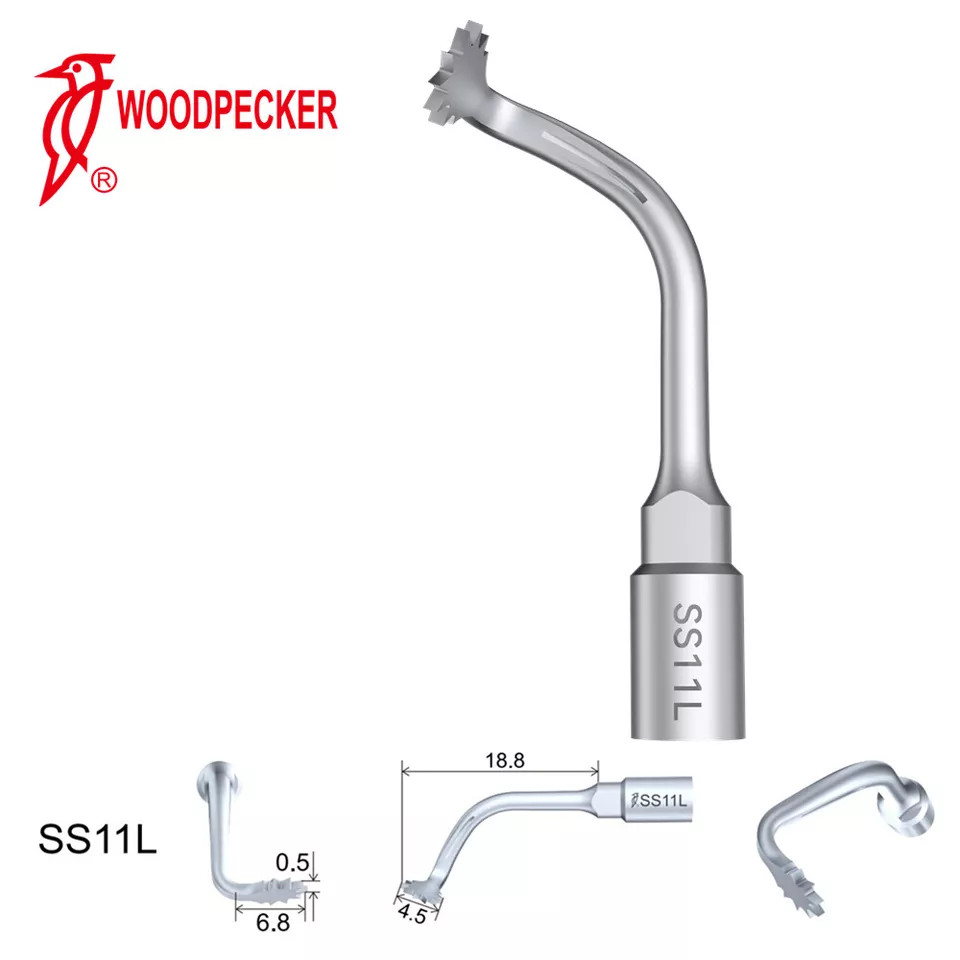

SS11L
Left angle 90°, circumferential teeth, for osteotomy in special bone positions.

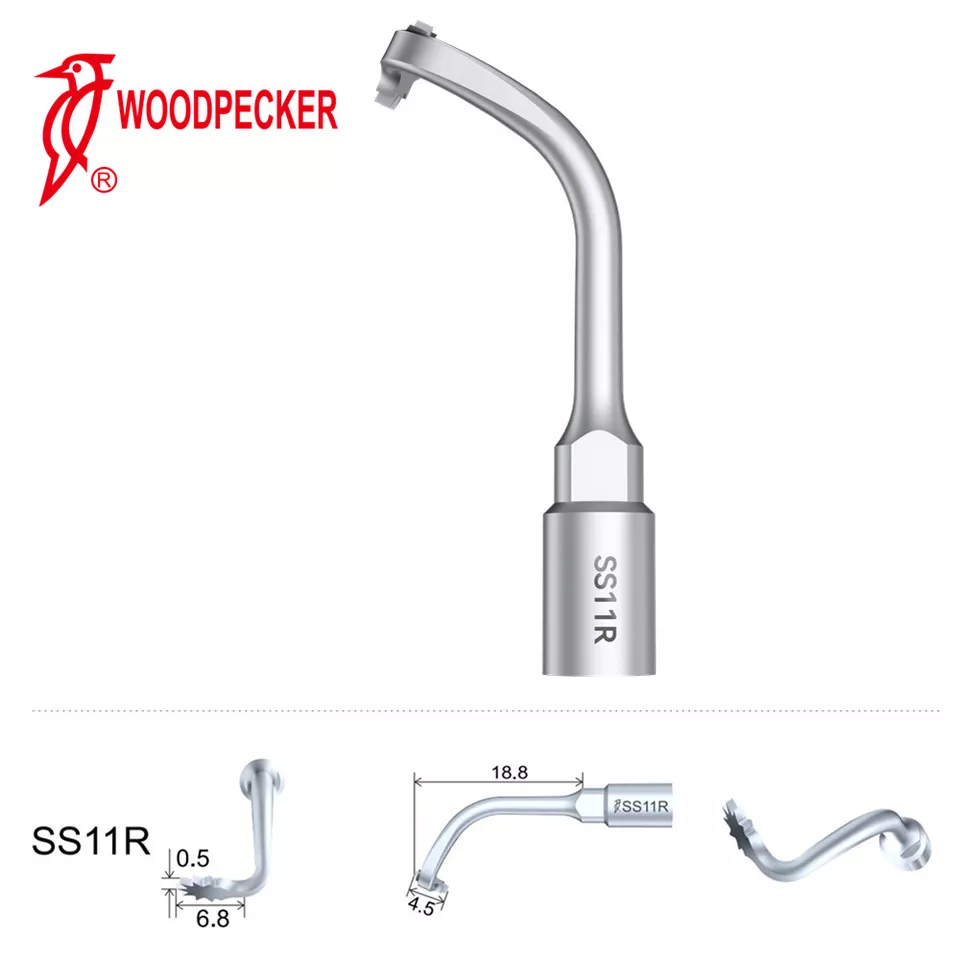

SS11R
Right angle 90°, circumferential teeth, for osteotomy in special bone positions.

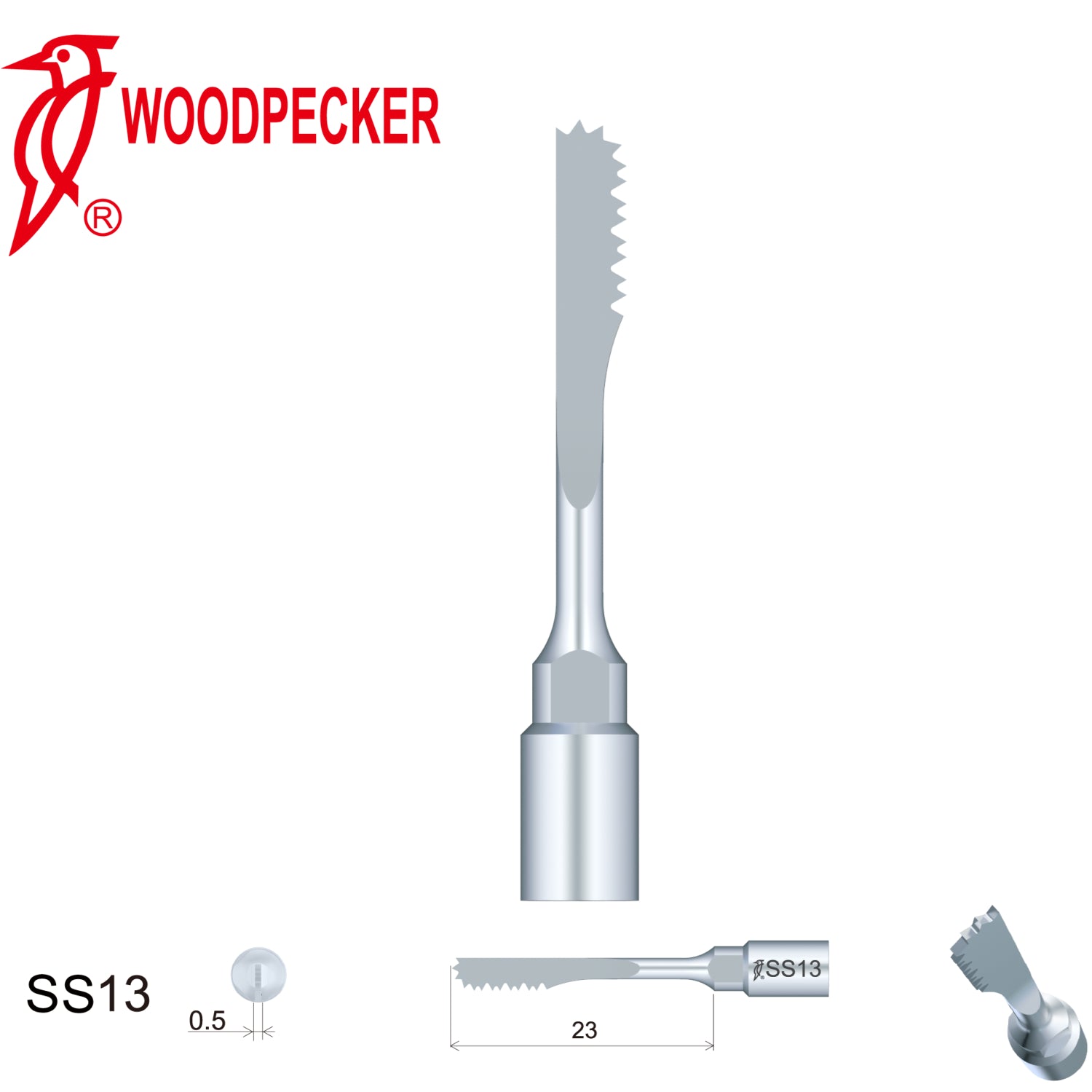

SS13
For osteotomy and also for apex resection in the posterior tooth area in apical surgery.

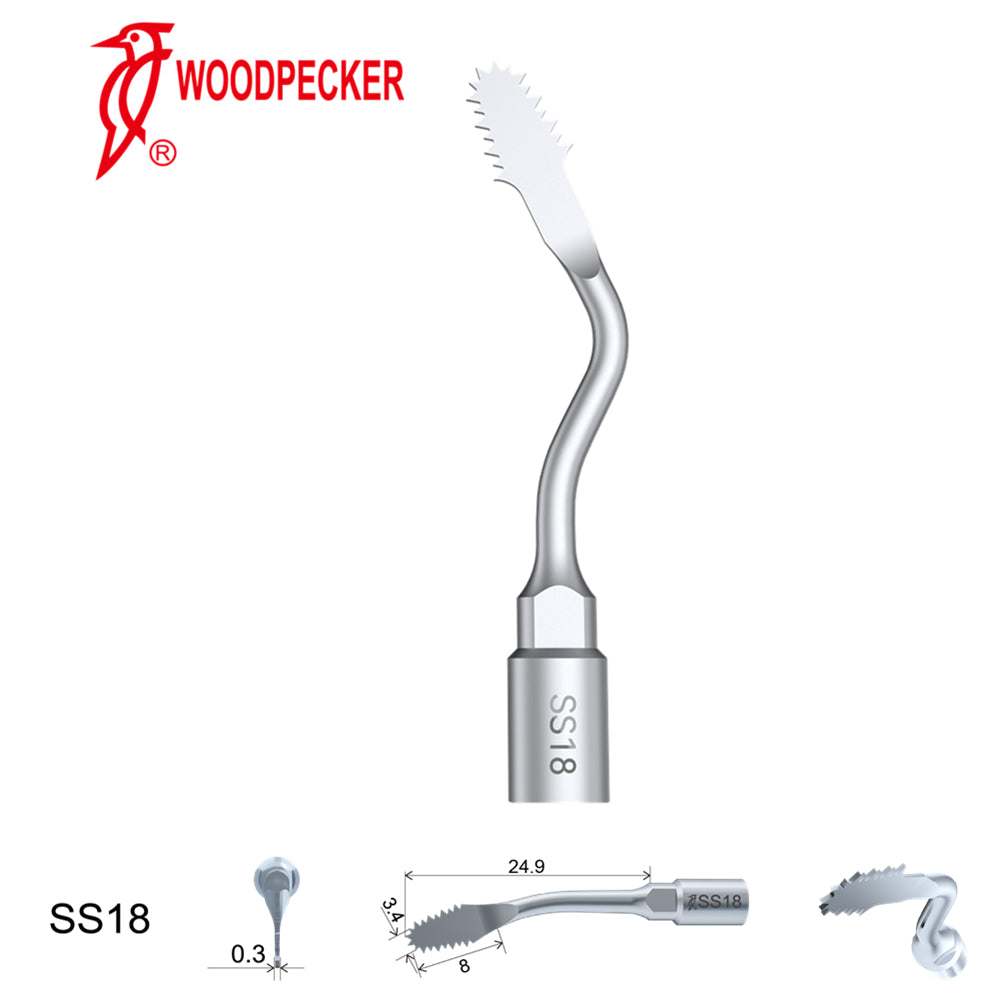

SS18
Extremely thin, for efficient osteotomy and also for apex resection.

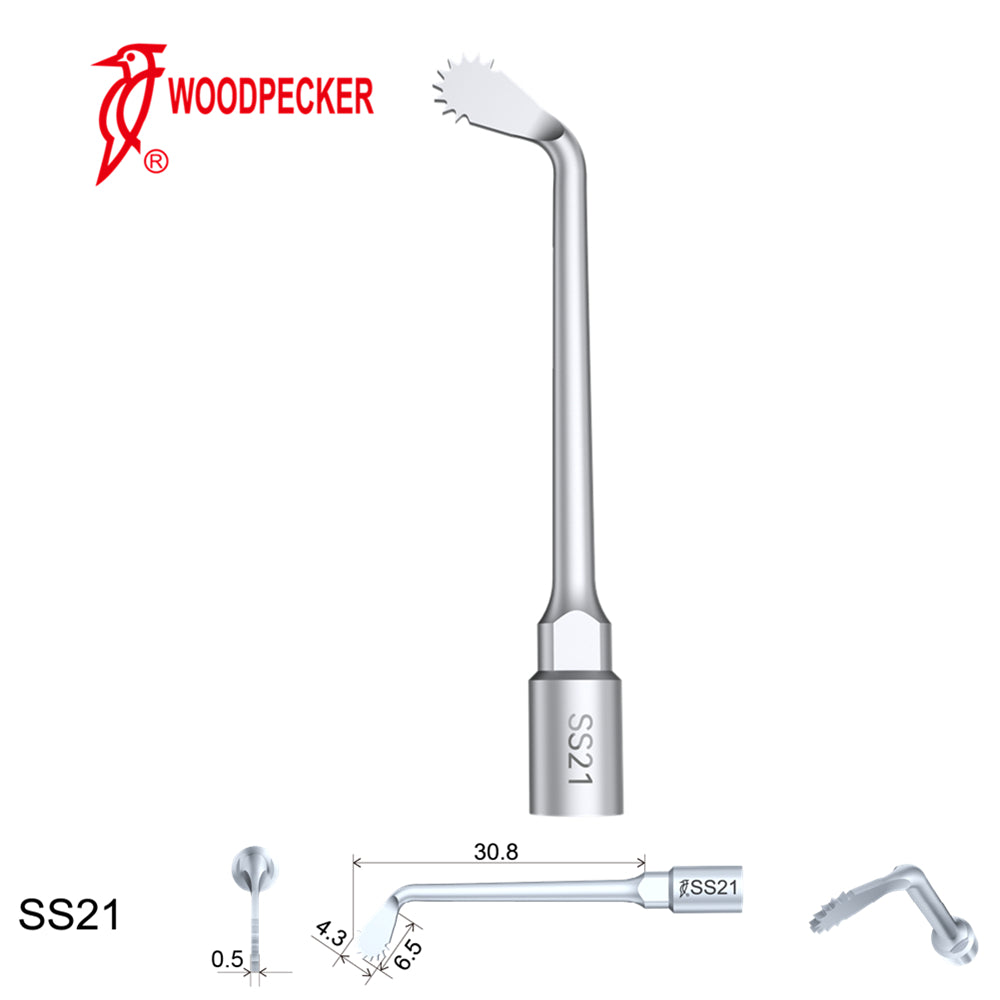

SS21
For osteotomy. Fan-shaped serration, convenient for multi-angle cutting.
sharp tip

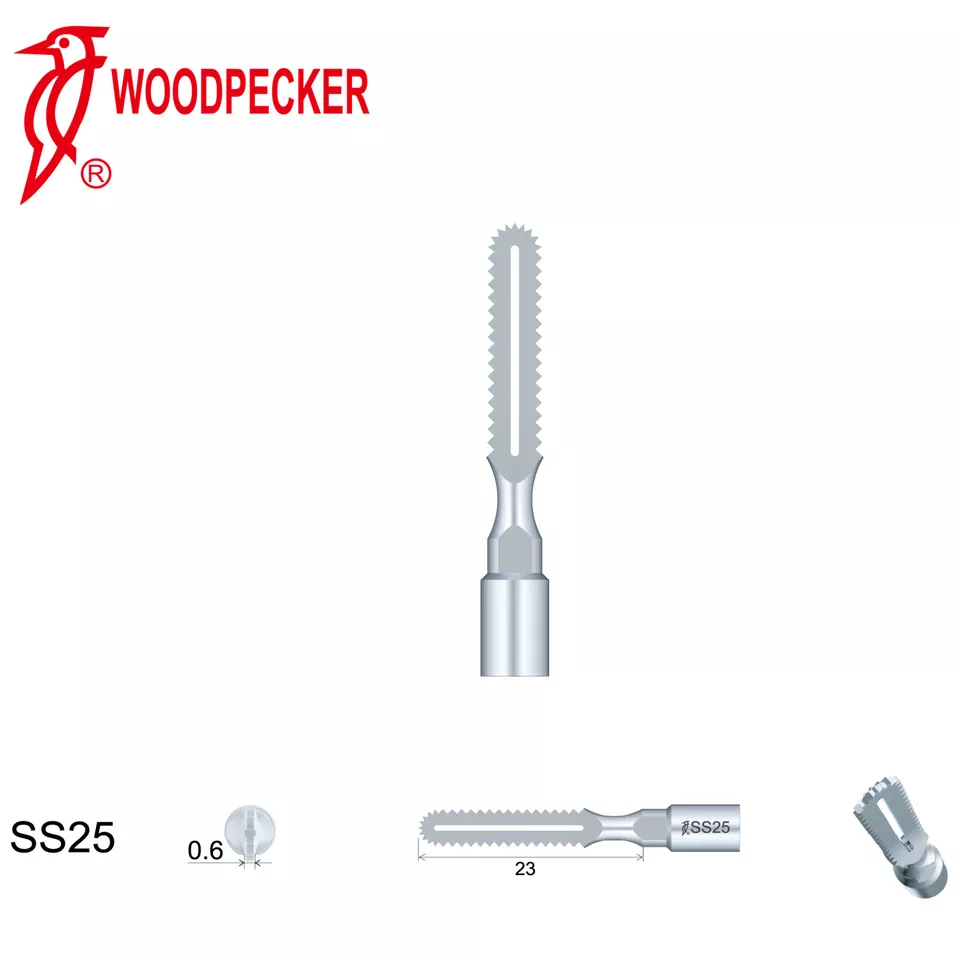

SS25
For bone surgery.

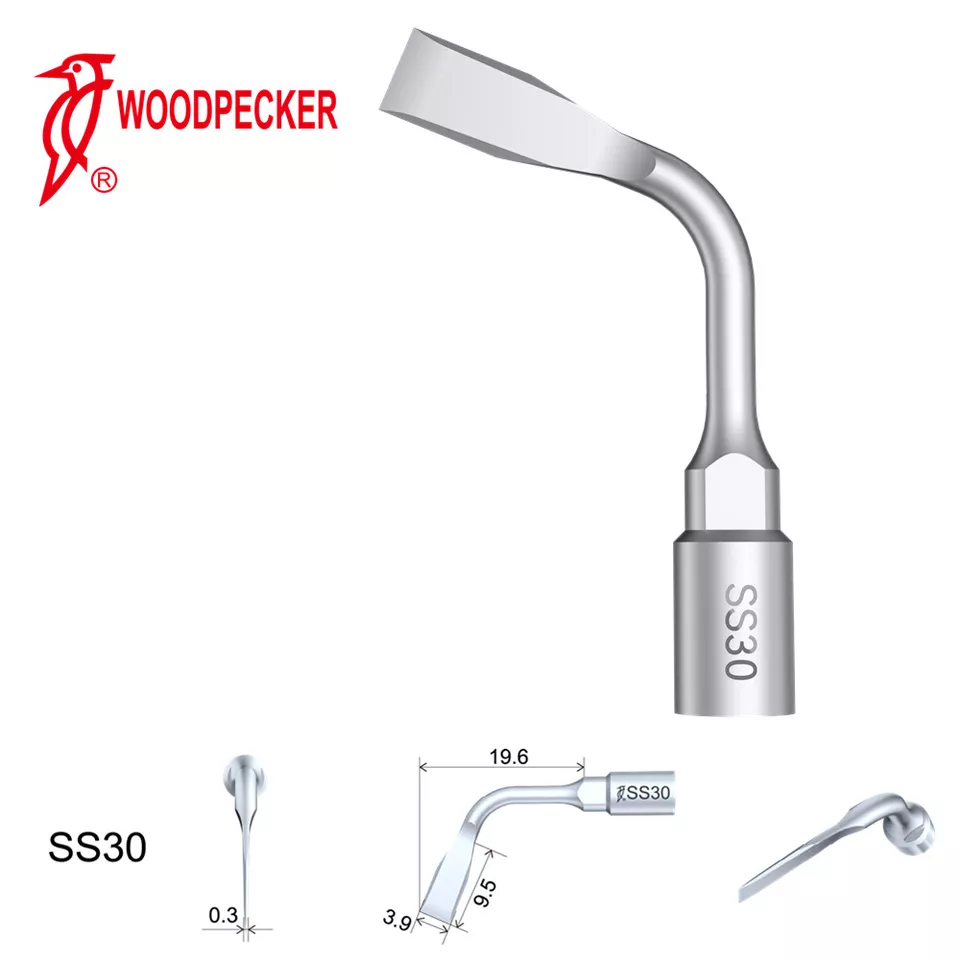

SS30
Extremely thin, for cutting trajectory positioning and bone cutting in bone splitting technique.

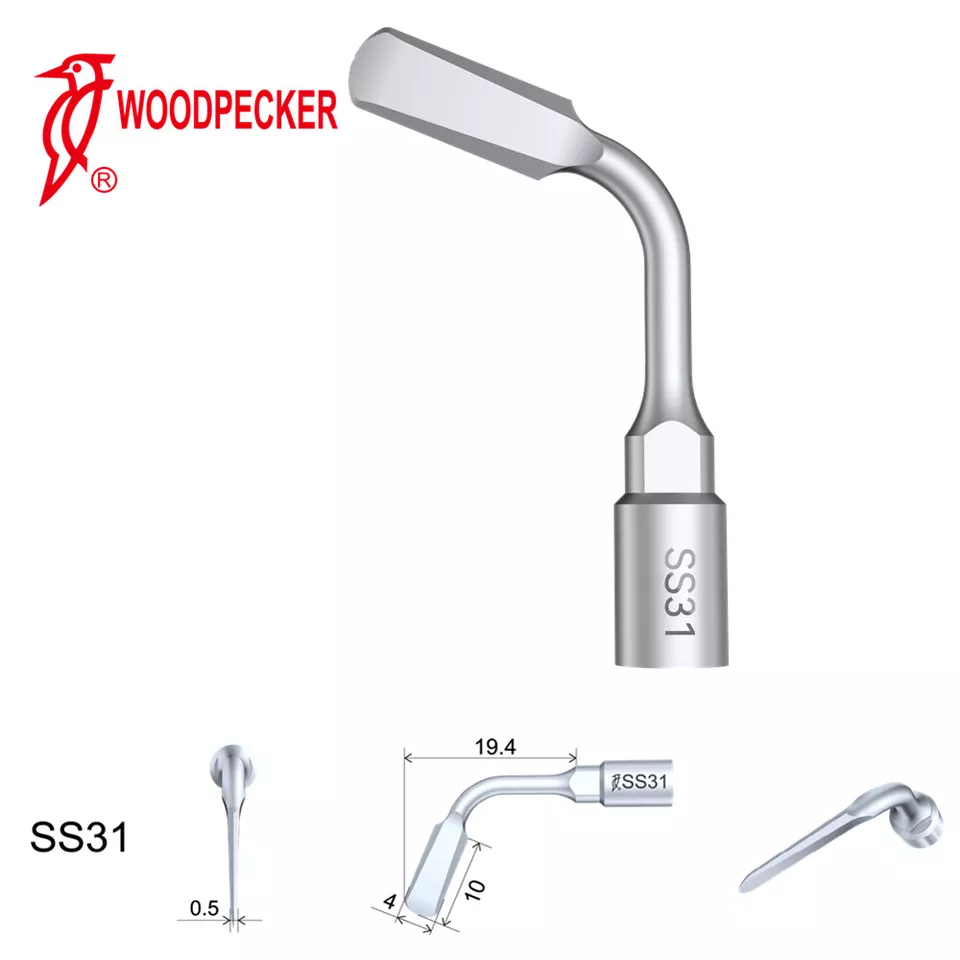

SS31
Recutting on the bone cutting track in bone splitting technique, used after SS30.

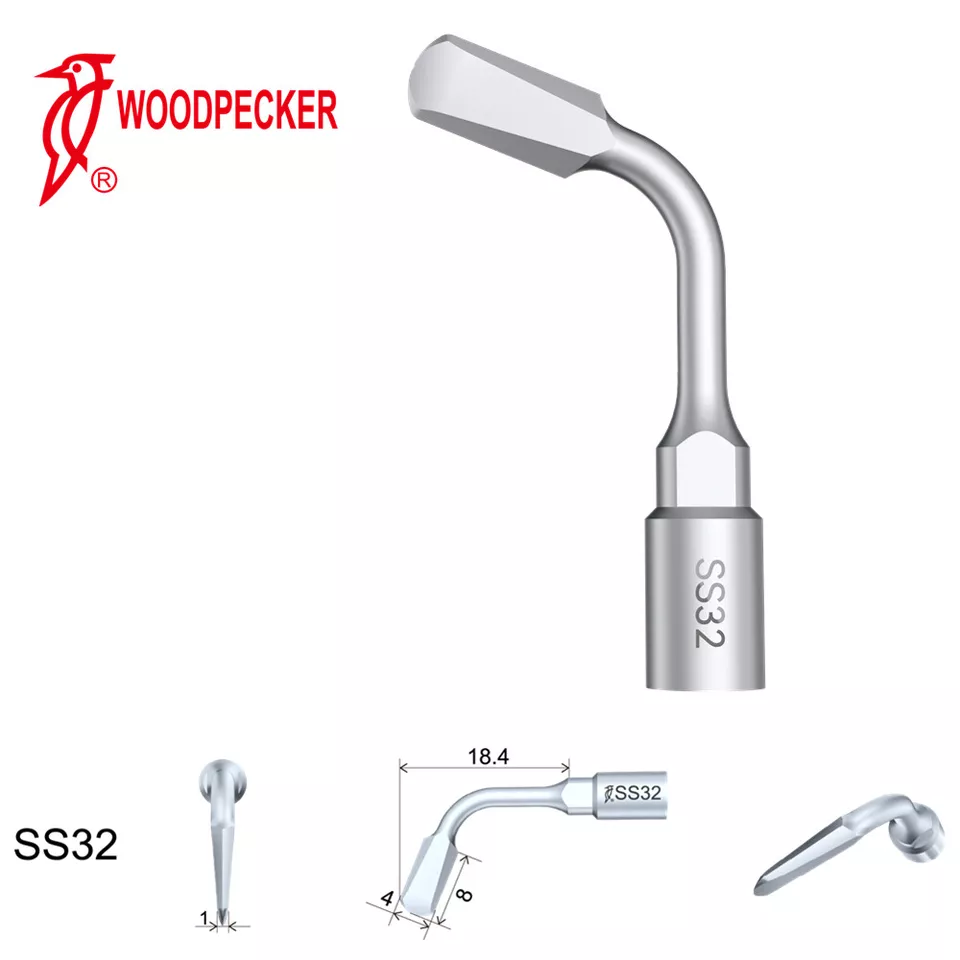

SS32
For bone expansion in bone splitting technique. Conical sharp tip head, 1.8mm thickness at the front 8mm part.

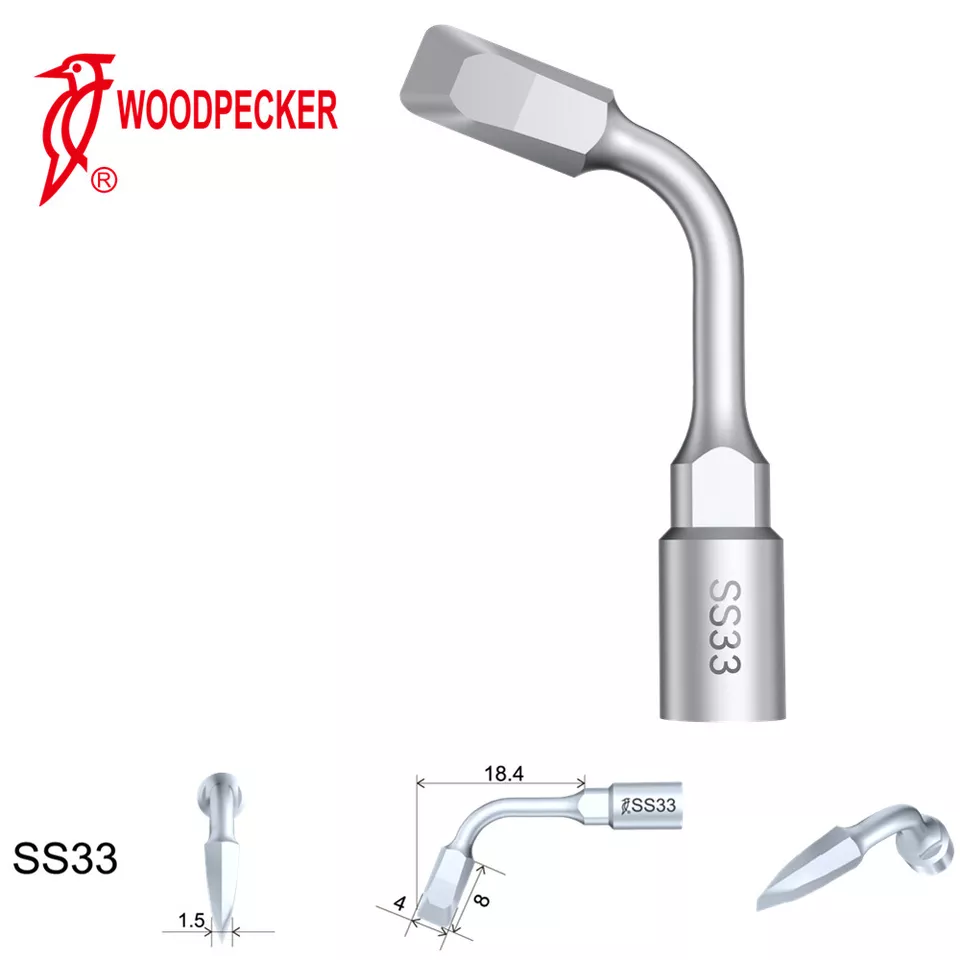

SS33
For bone expansion in bone splitting technique. Conical sharp tip head, 2.75 thickness at the front 8mm part.

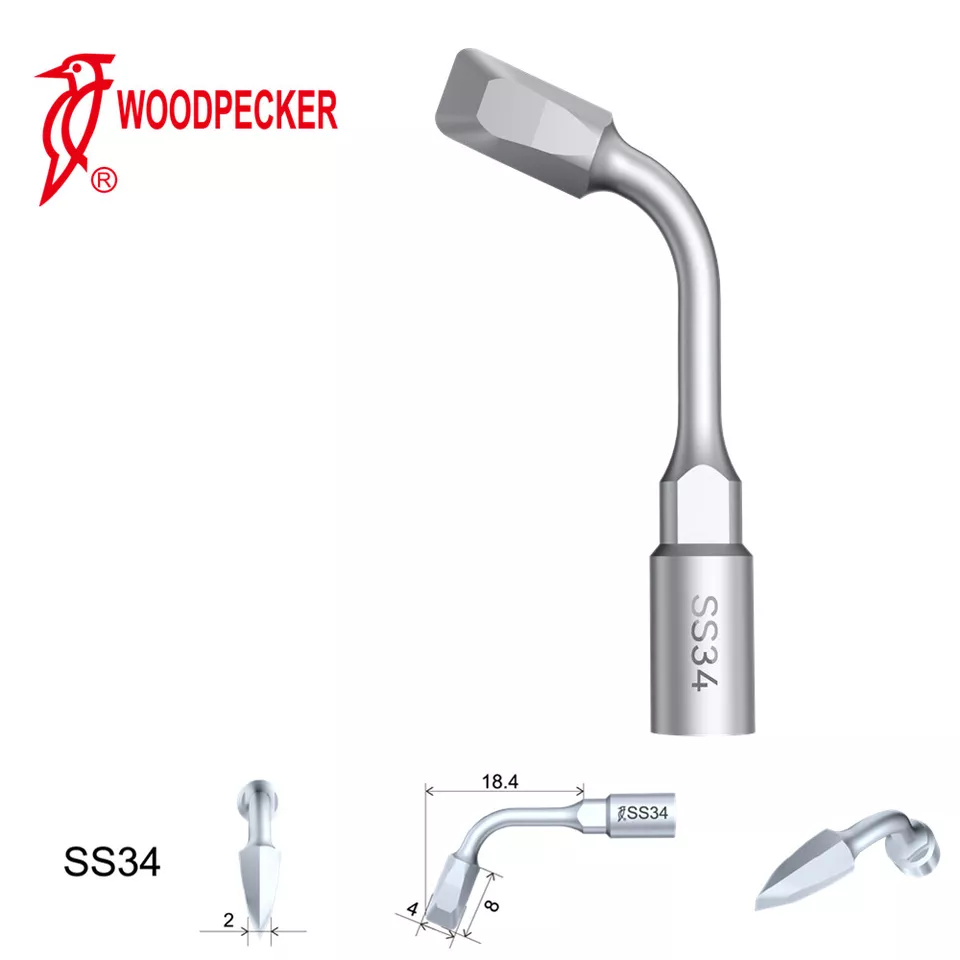

SS34
For bone expansion in bone splitting technique. Conical head, 3.75 thickness at the front 8mm part.

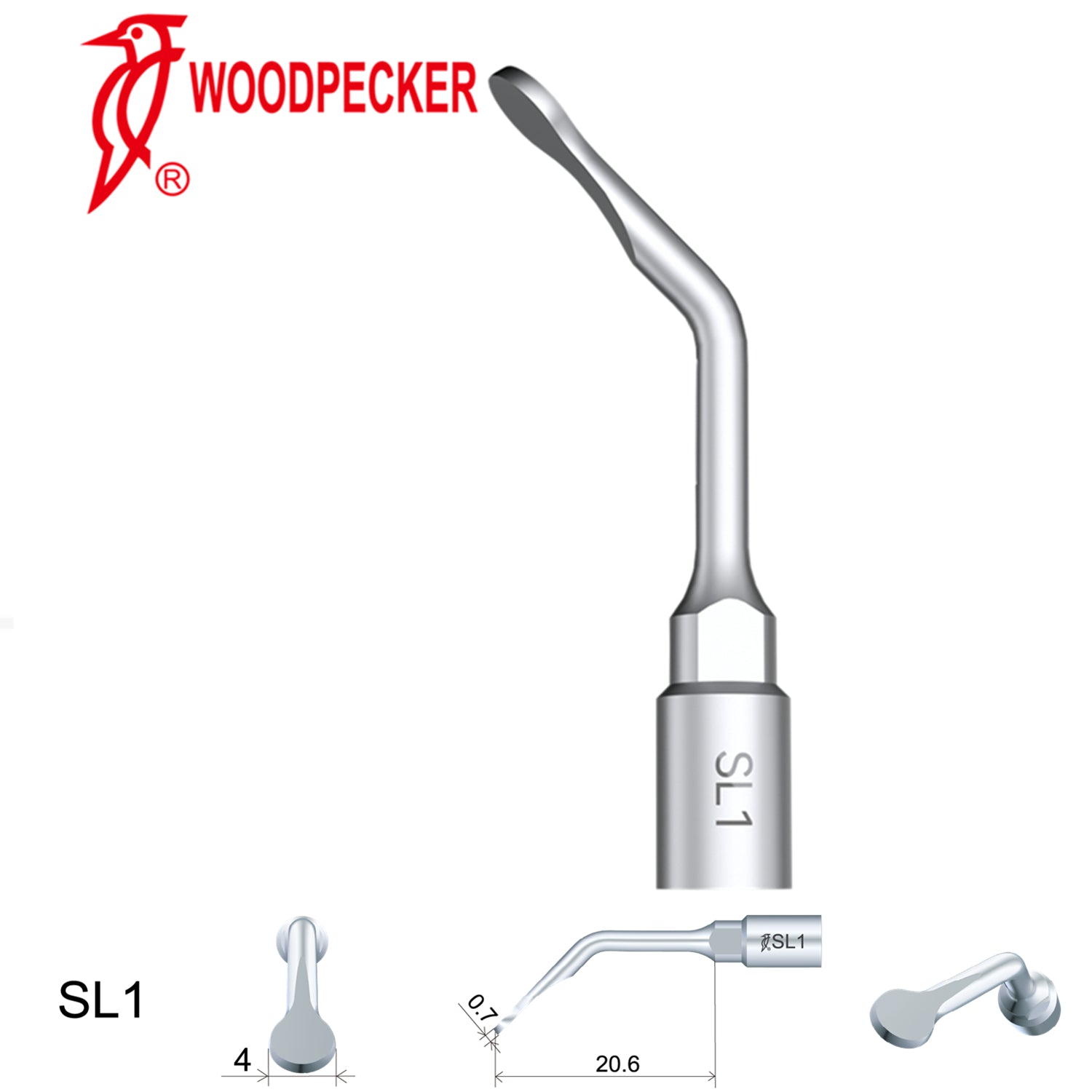

SL1
Tip angle 120°. For maxillary sinus membrane detachment and elevation without damaging the maxillary sinus mucosa.

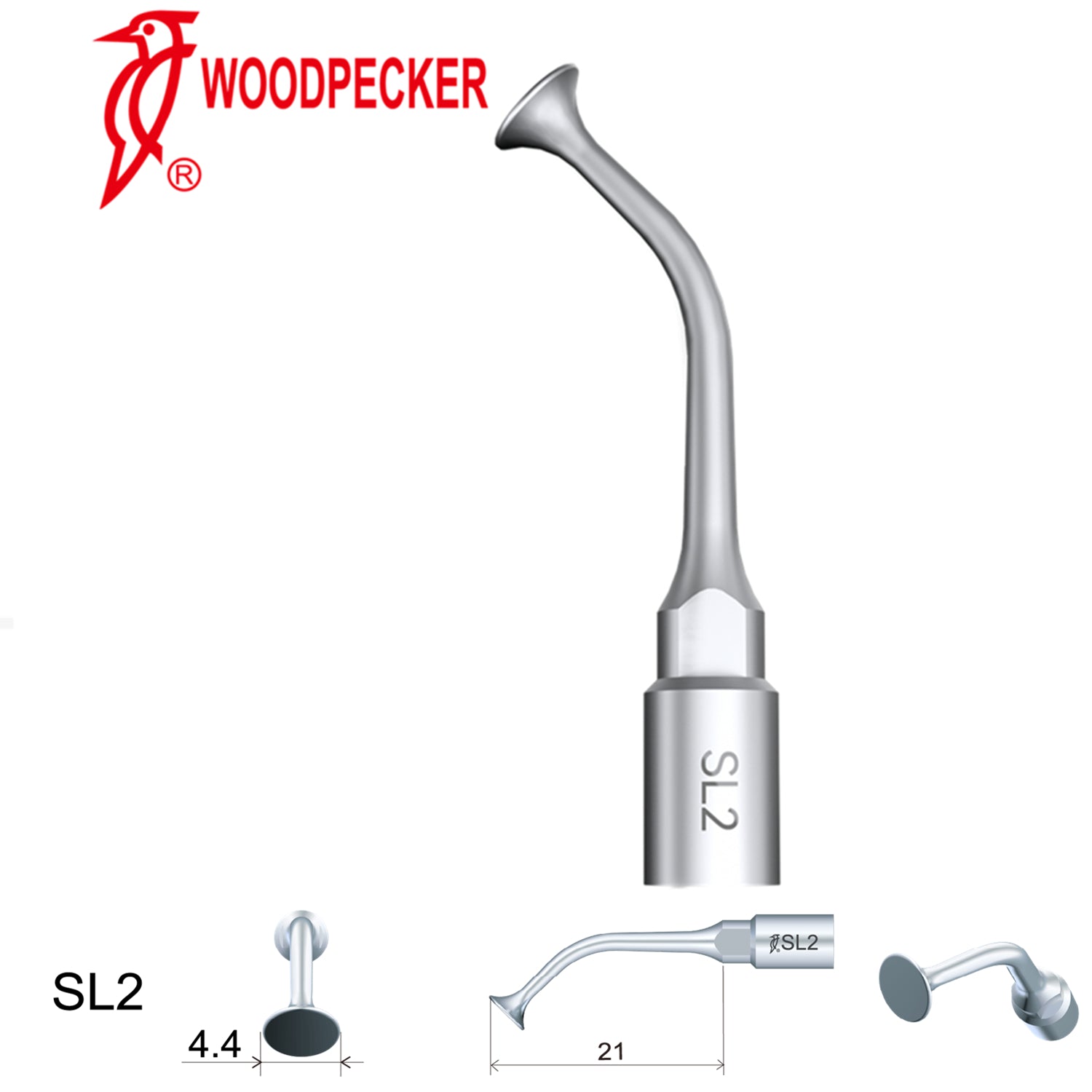

SL2
For nasal mucosa separation: detachment of the maxillary sinus mucosa.

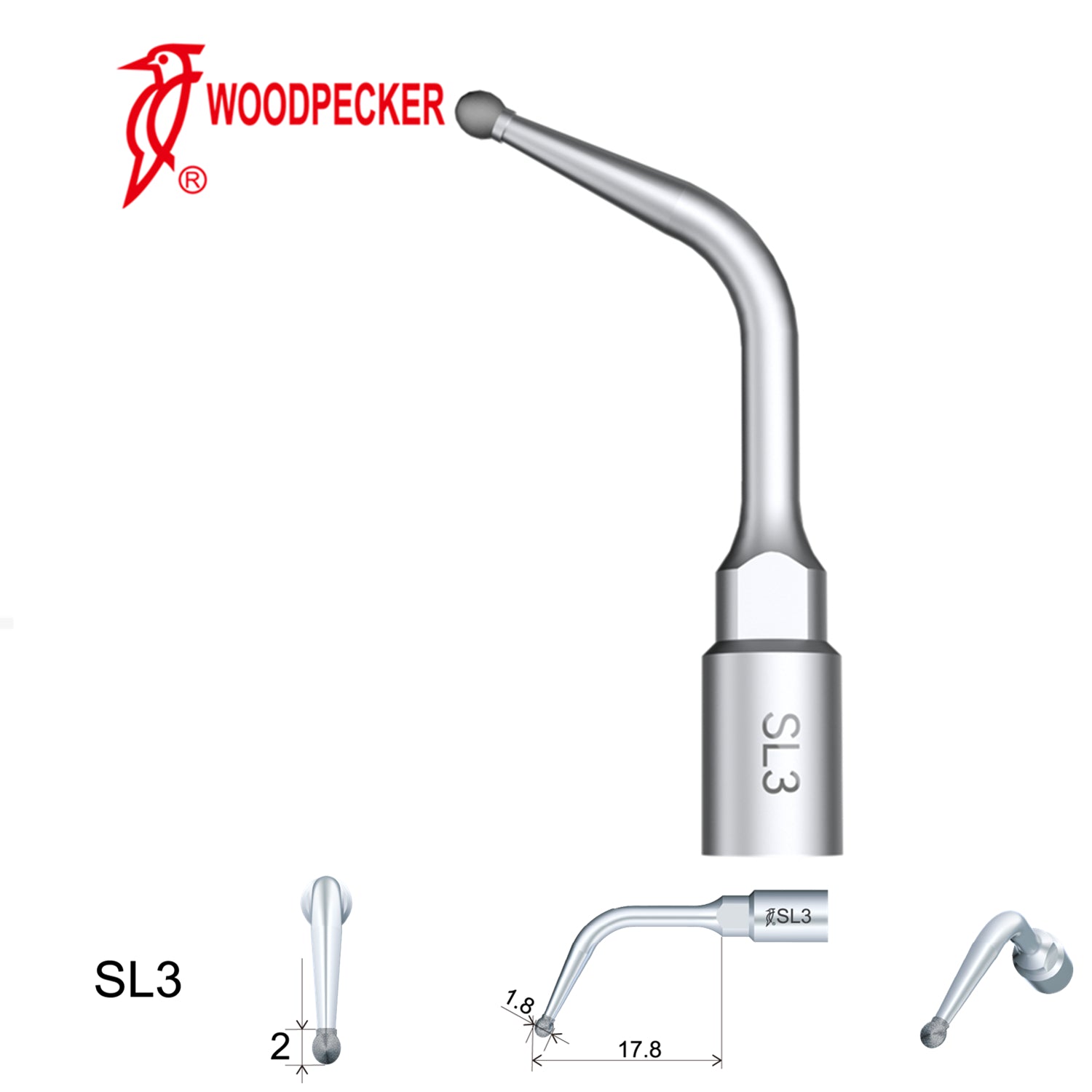

SL3
Diamond-coated (100μm) tip for fine osteotomy or osteoplasty: for non-traumatic osteotomy close to soft tissue and sensitive areas.

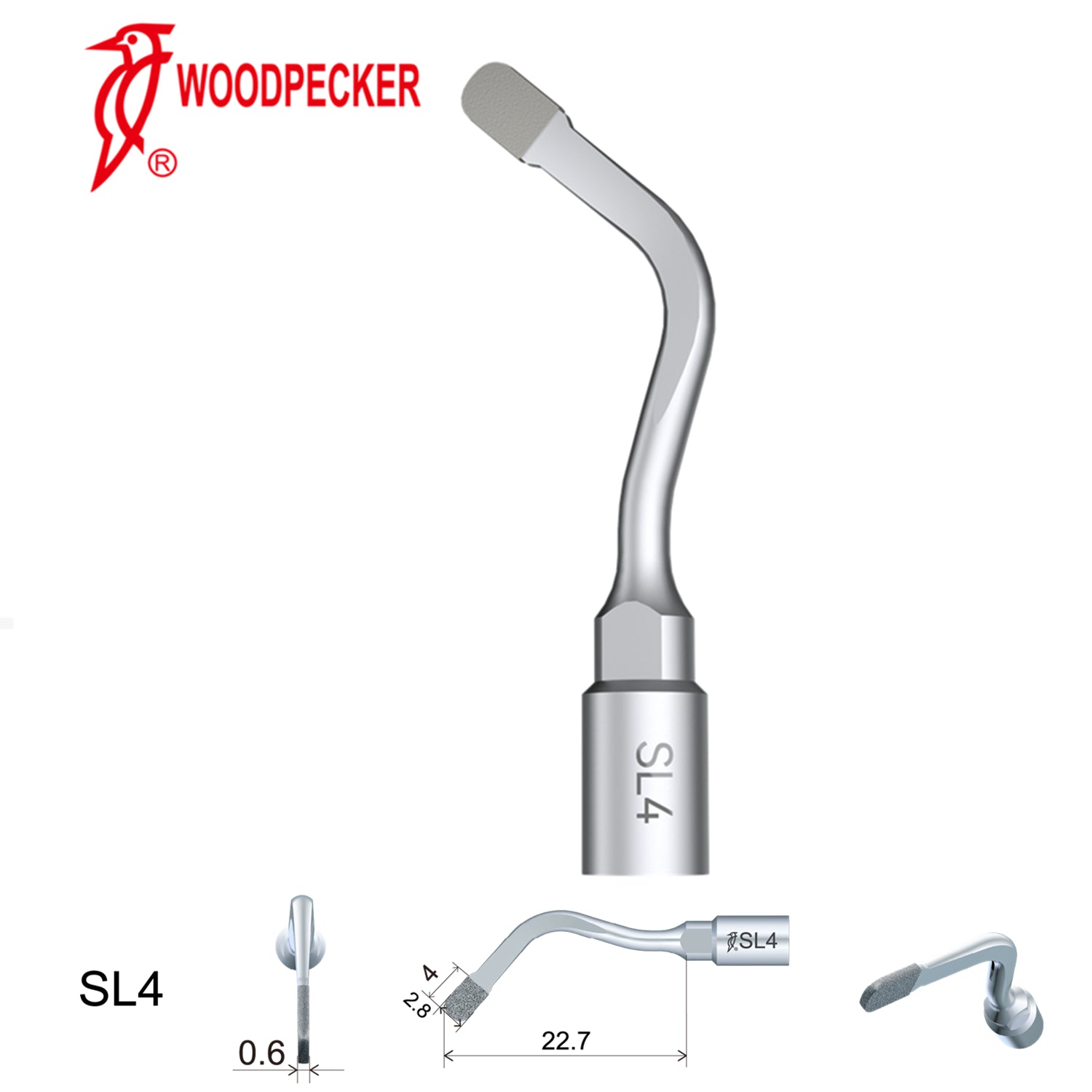

SL4
Diamond-coated (100μm) tip for fine osteotomy: for cutting of extremely-thin bone, to avoid soft tissue damage (nasal mucosa, vessel, alveolar nerve).

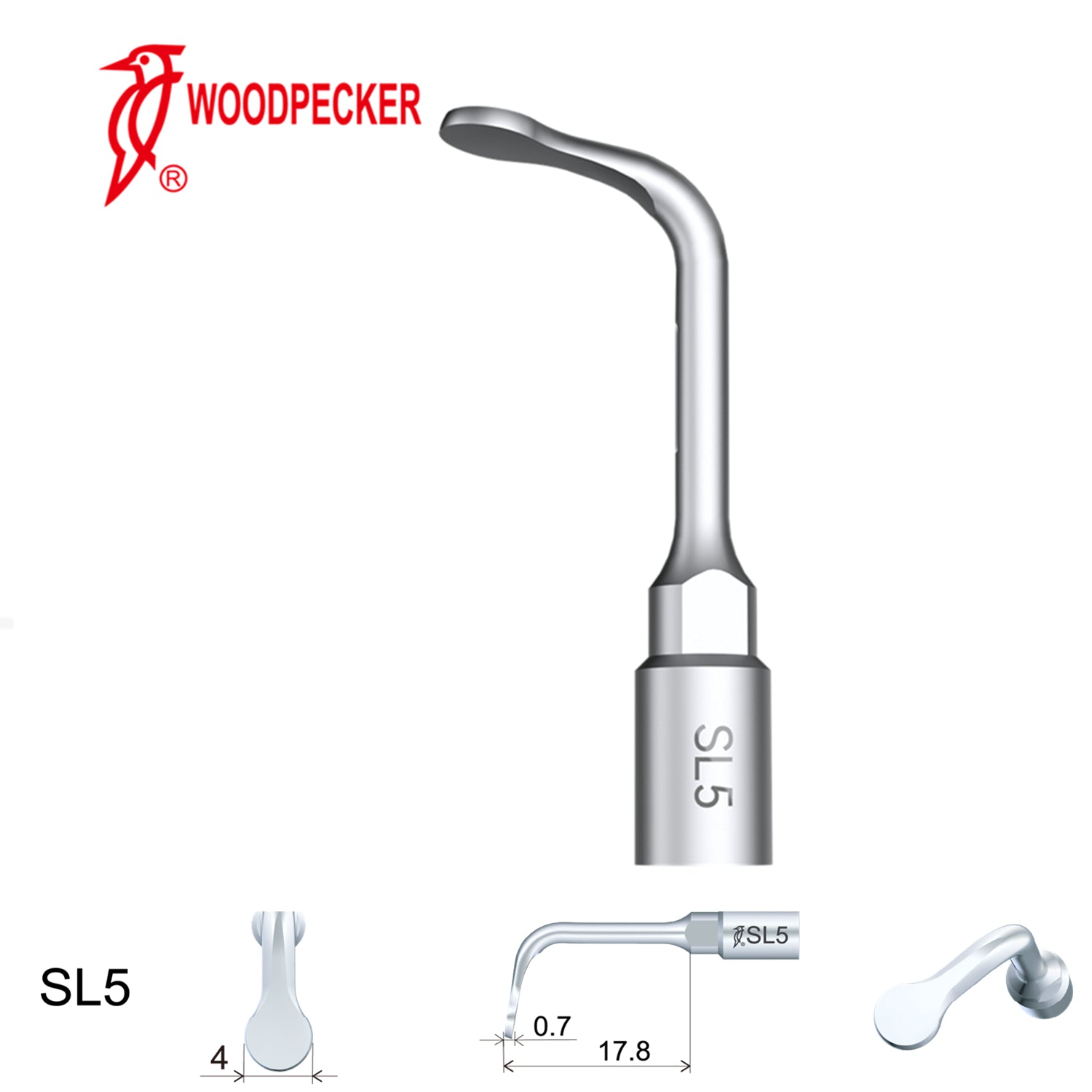

SL5
Tip angle 95°. For maxillary sinus membrane detachment and elevation without damaging the maxillary sinus mucosa.

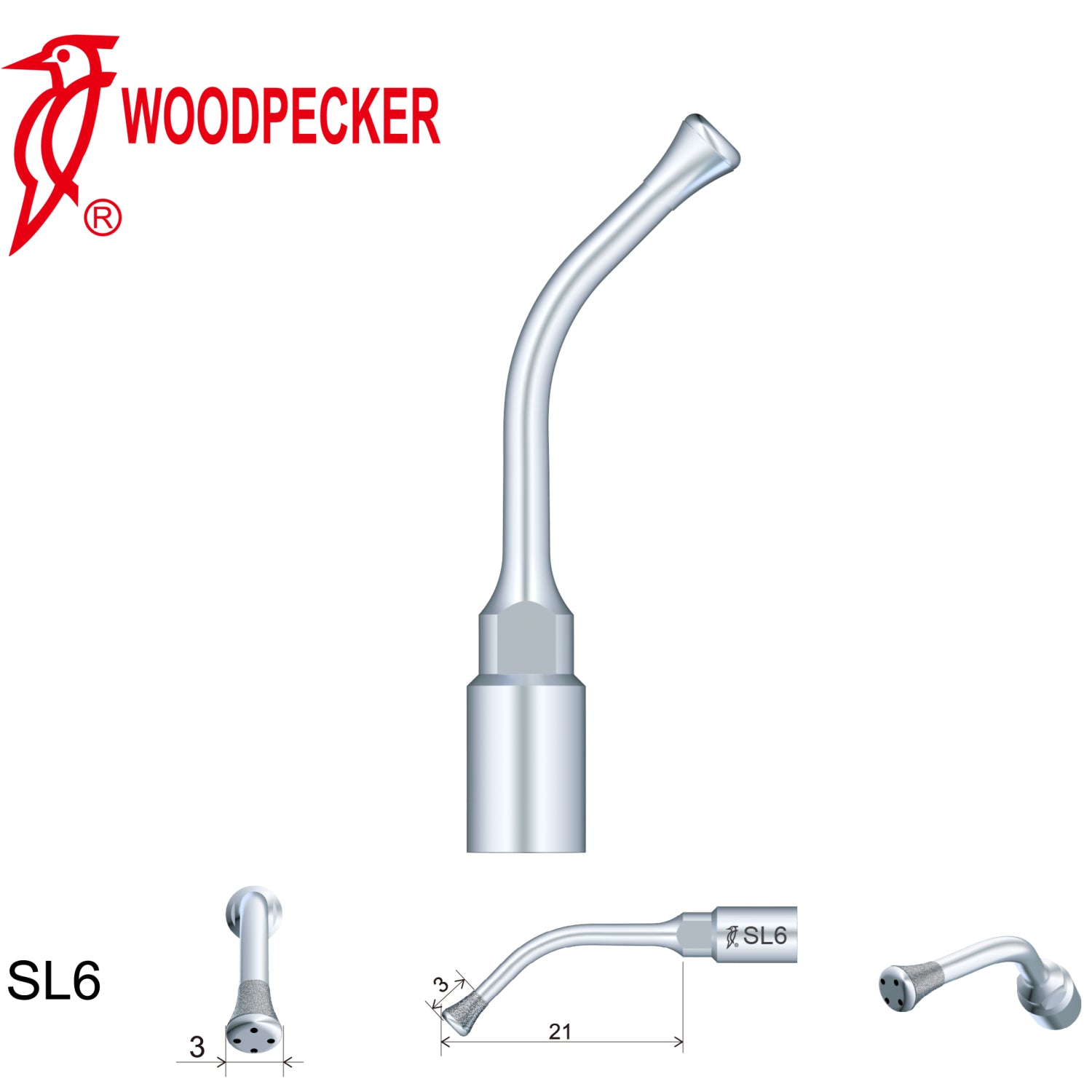

SL6
Φ3mm head with four water outlets, for better separation of the maxillary sinus periosteum. The diamond-coated portion allows for trimming of the edges of the bone window.

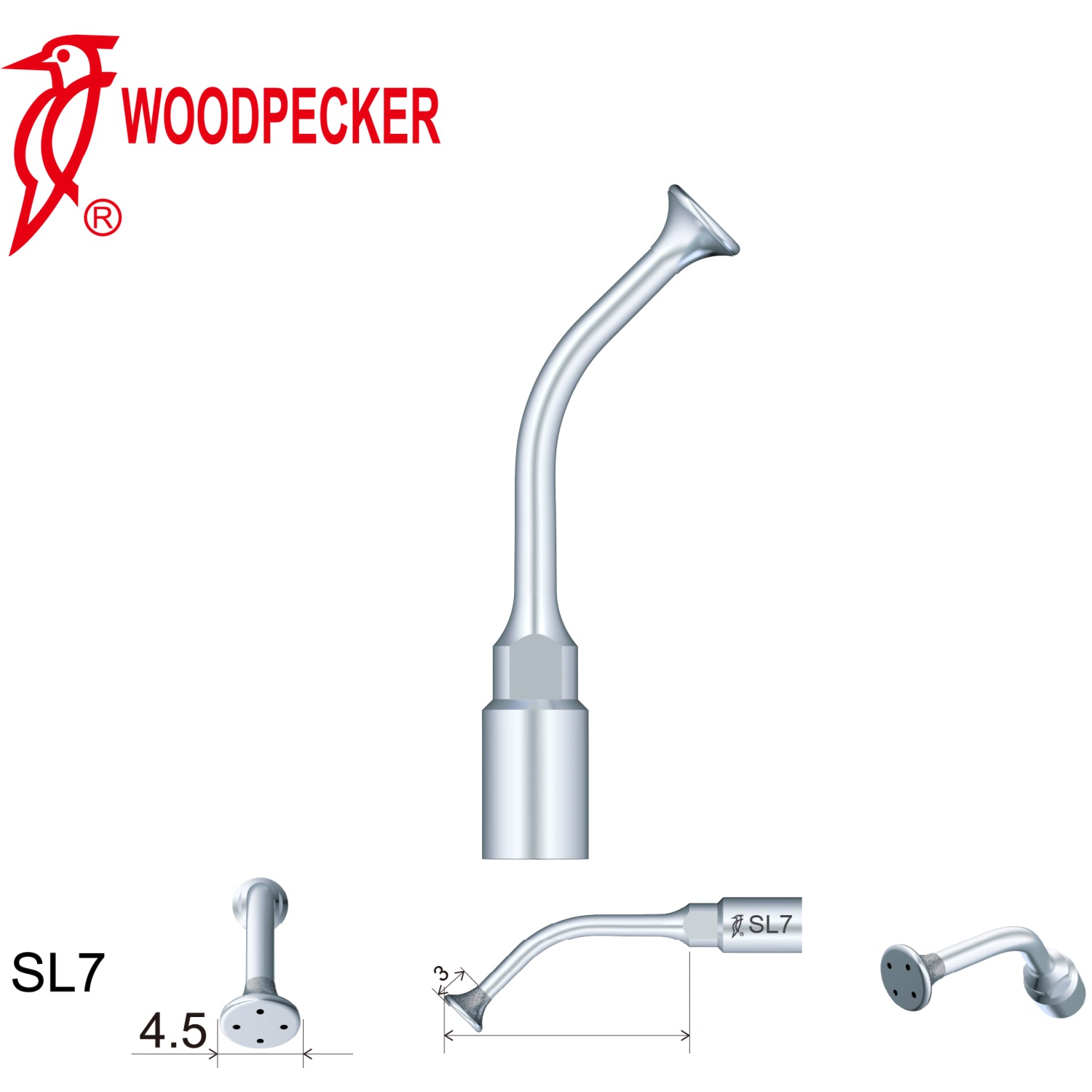

SL7
Φ4.5mm head with four water outlets, for better separation of the maxillary sinus periosteum. The diamond-coated portion allows for trimming of the edges of the bone window.

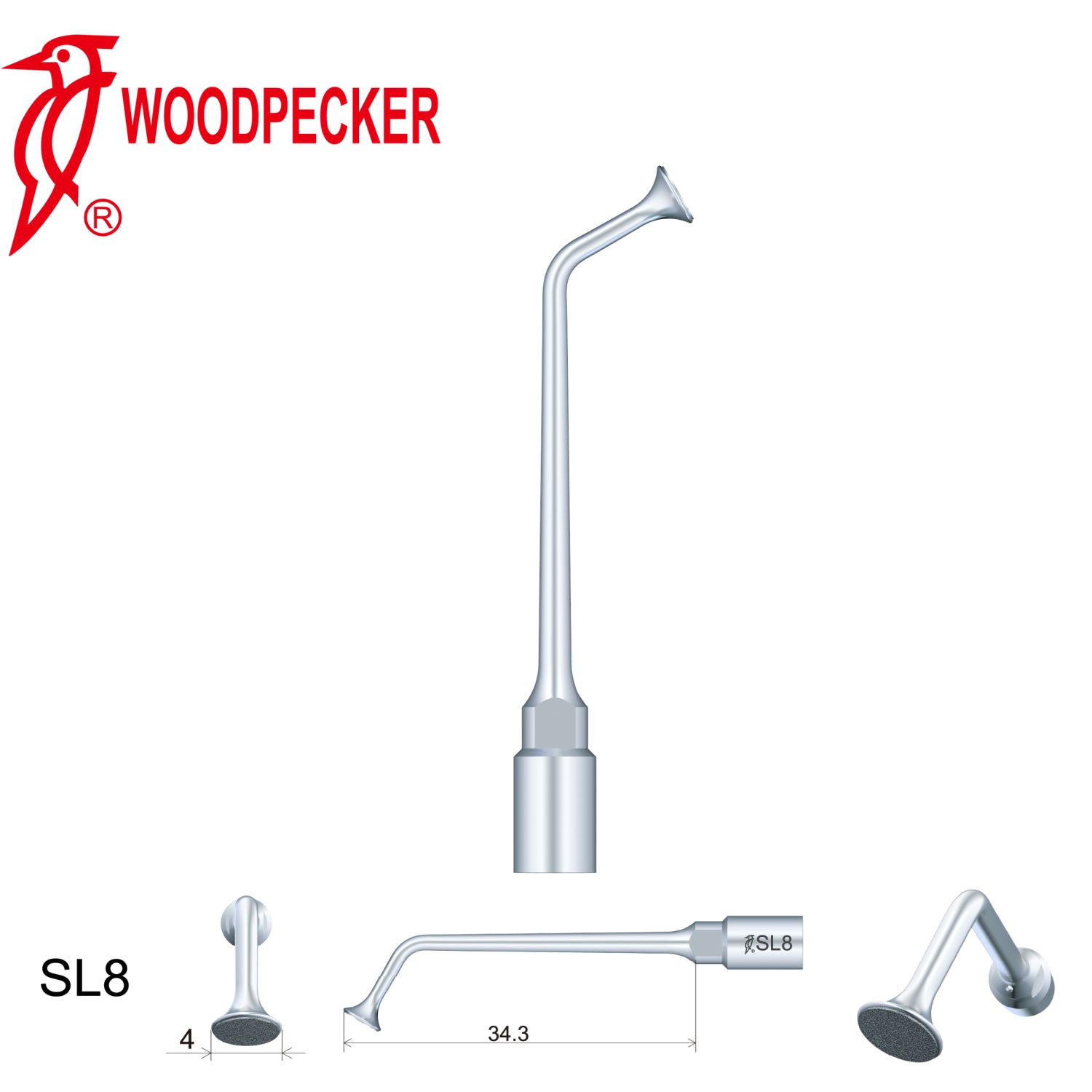

SL8
Diamond-coated (100μm) tip for fine osteotomy or osteoplasty: for non-traumatic osteotomy close to soft tissue and sensitive areas.

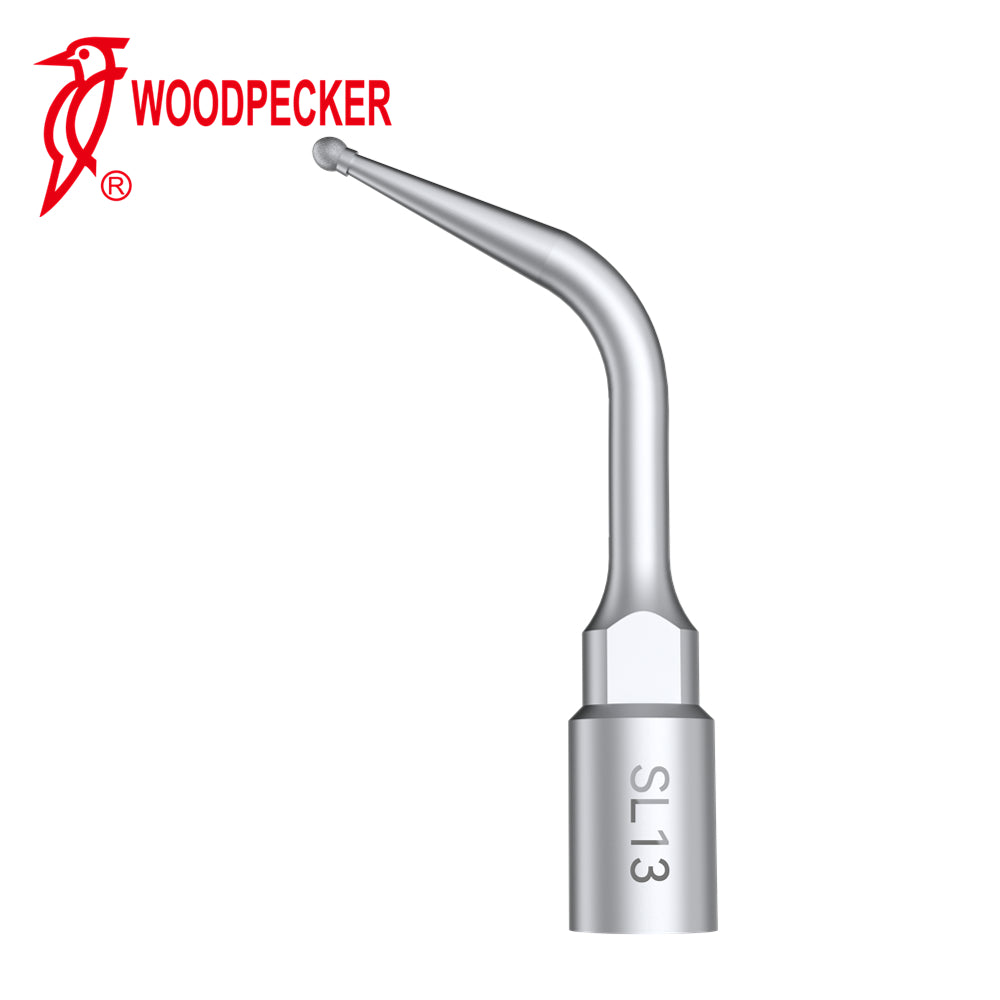

SL13
Diamond-coated, for osteoplasty and bone trimming in the interproximal area, often used in crown lengthening.

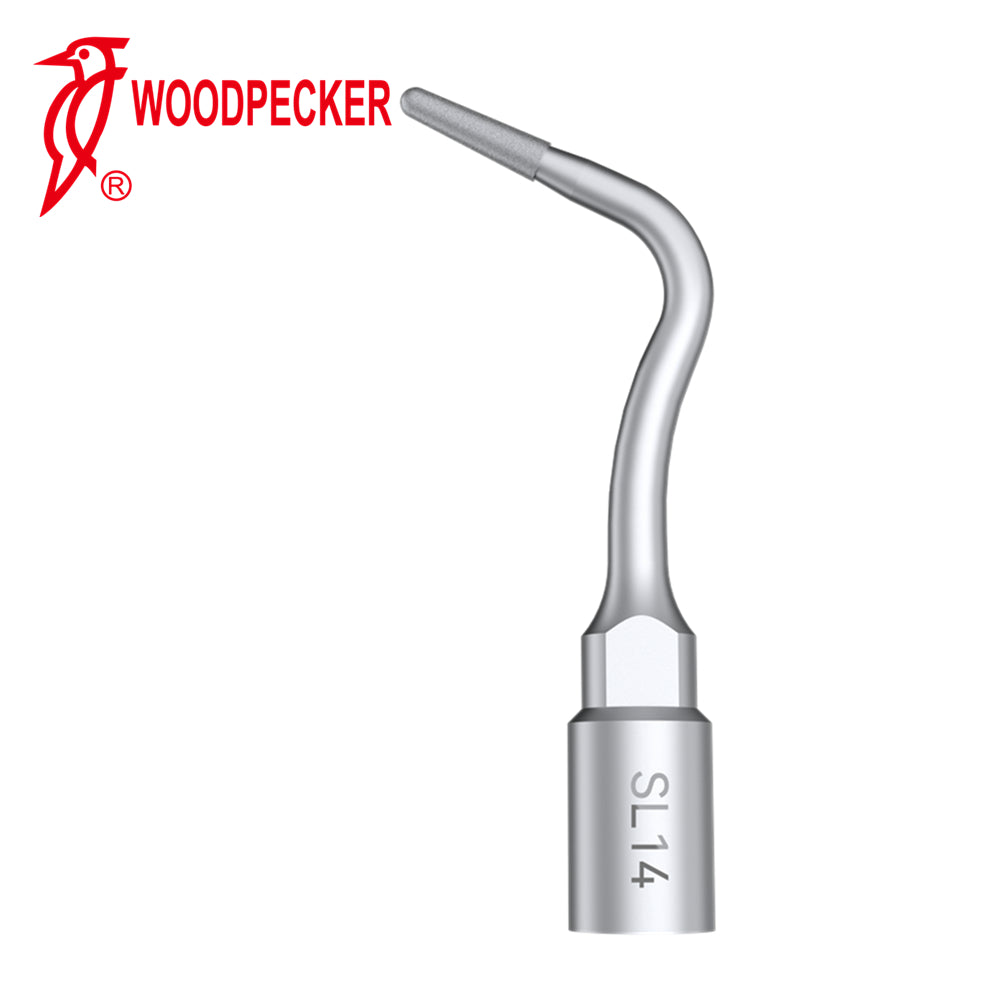

SL14
Diamond-coated, for osteoplasty and bone trimming in the interproximal area, often used in crown lengthening.

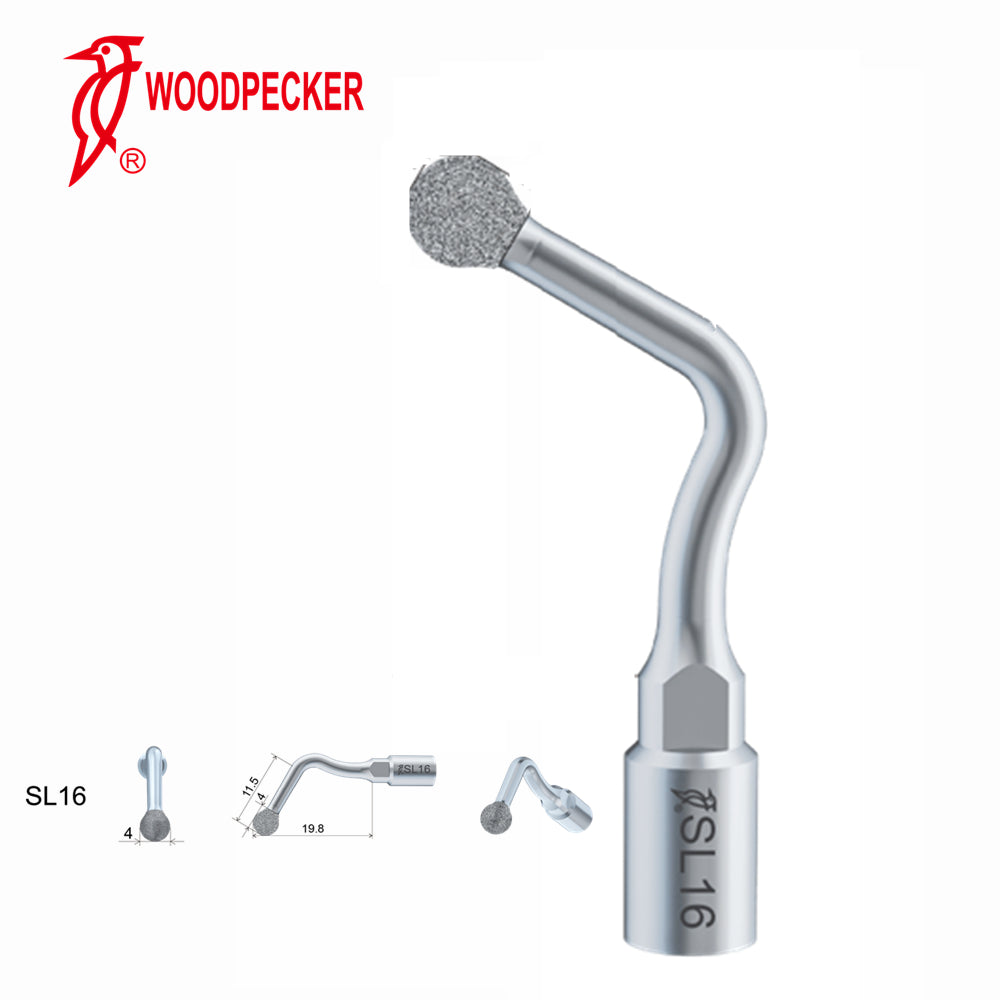

SL16

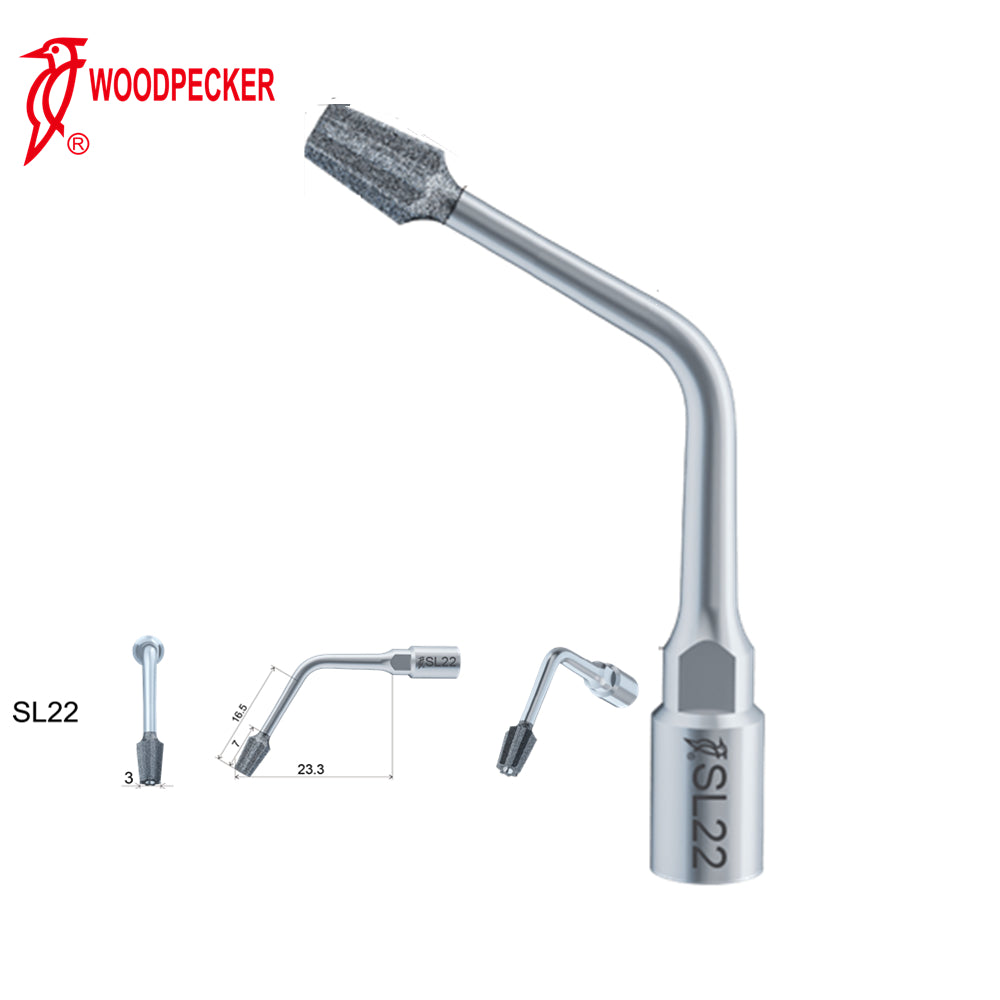

SL22

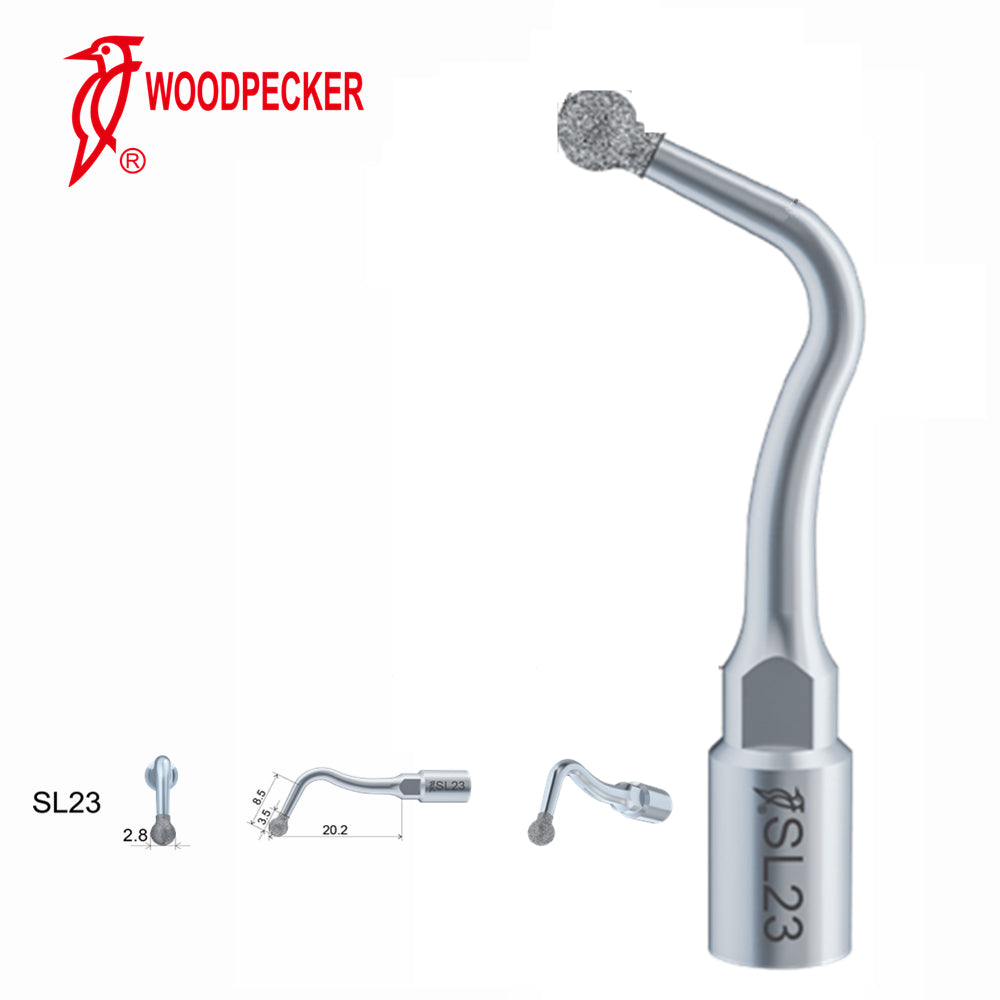

SL23

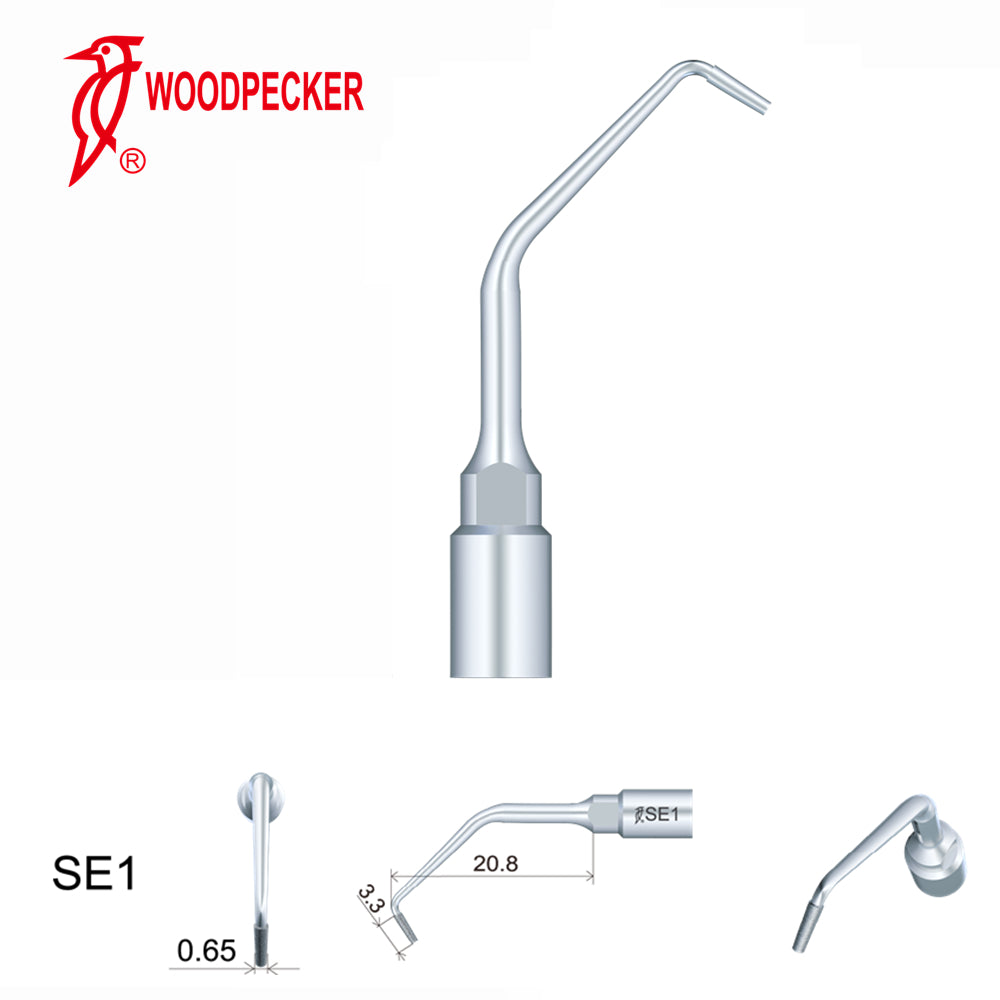

SE1
Diamond-coated (40μm) tip for apical debridement: for high-efficiency root-end preparation and apical surgery. Diamond-coated part is 3.3mm in length.

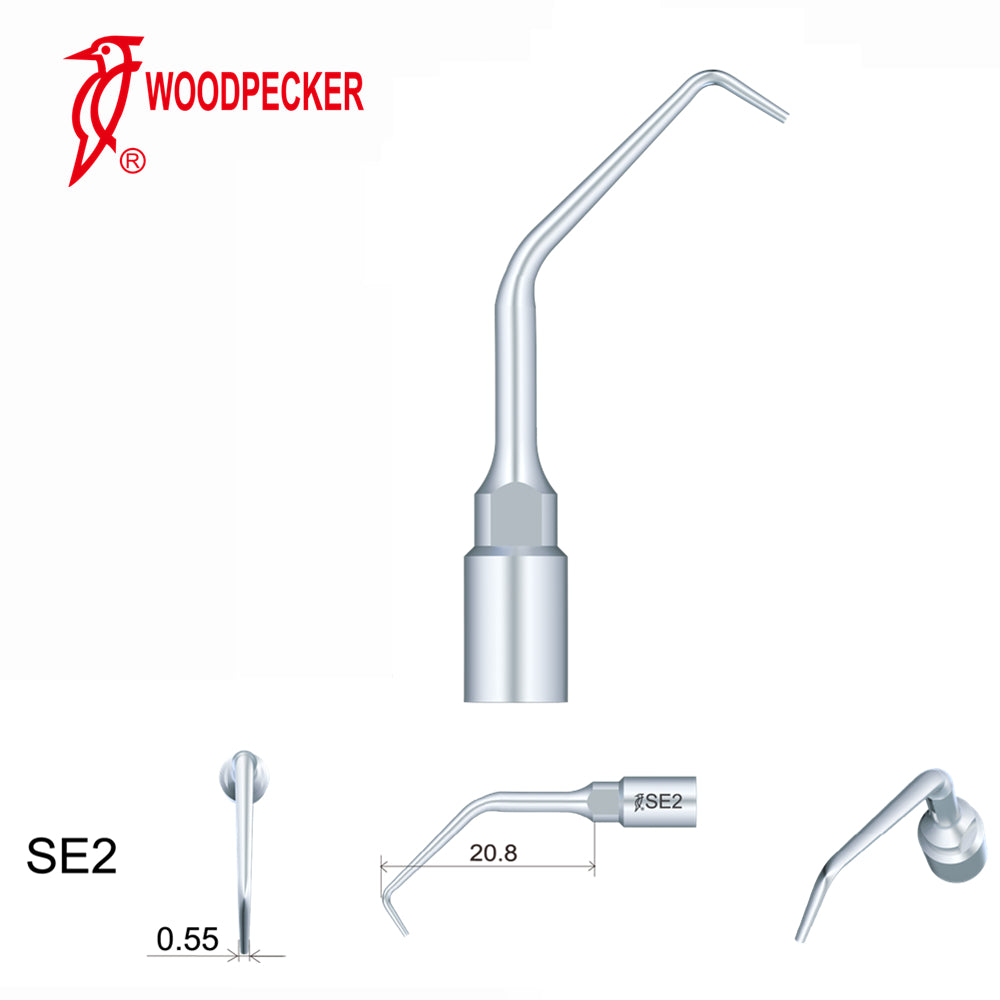

SE2
Polishing the canal wall in apical debridement. The tip smooth part is 4.5 mm in length.

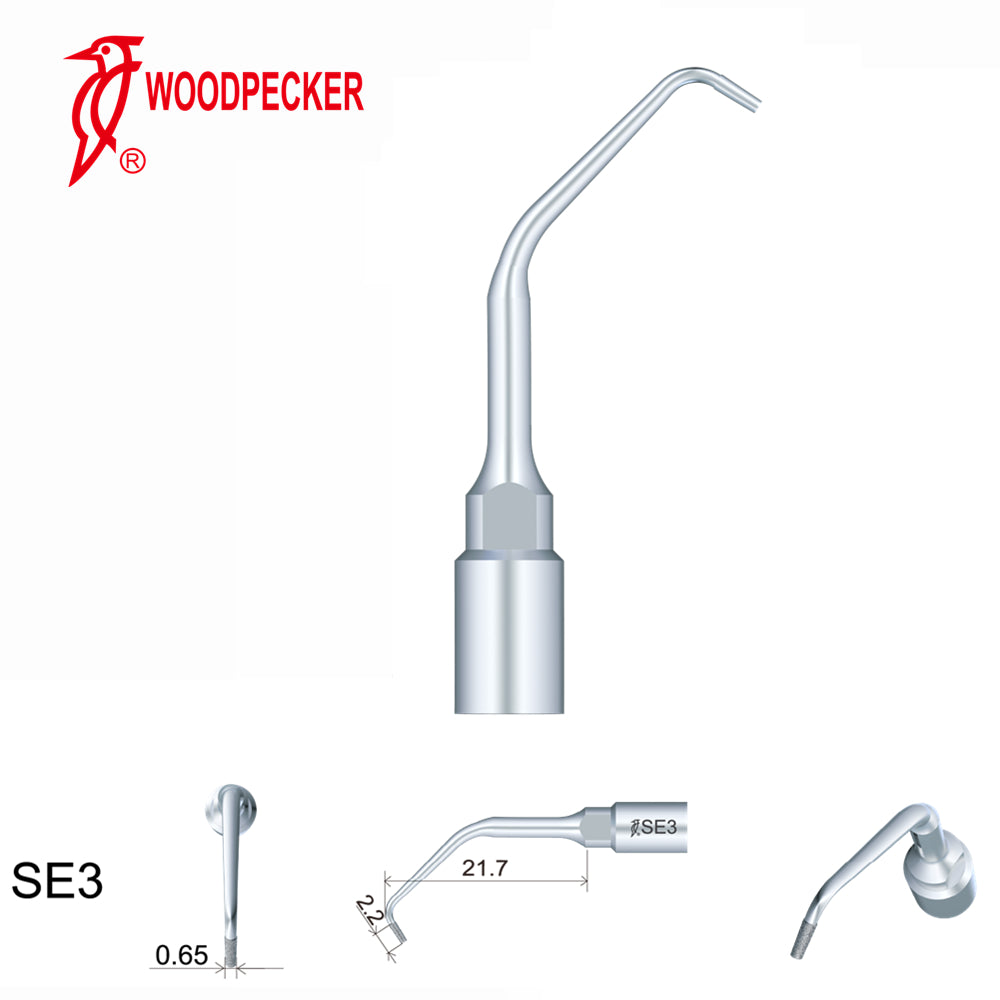

SE3
Diamond-coated (40μm) tip for apical debridement: for high-efficiency root-end preparation and apical surgery. Diamond-coated part is 2.2mm in length.

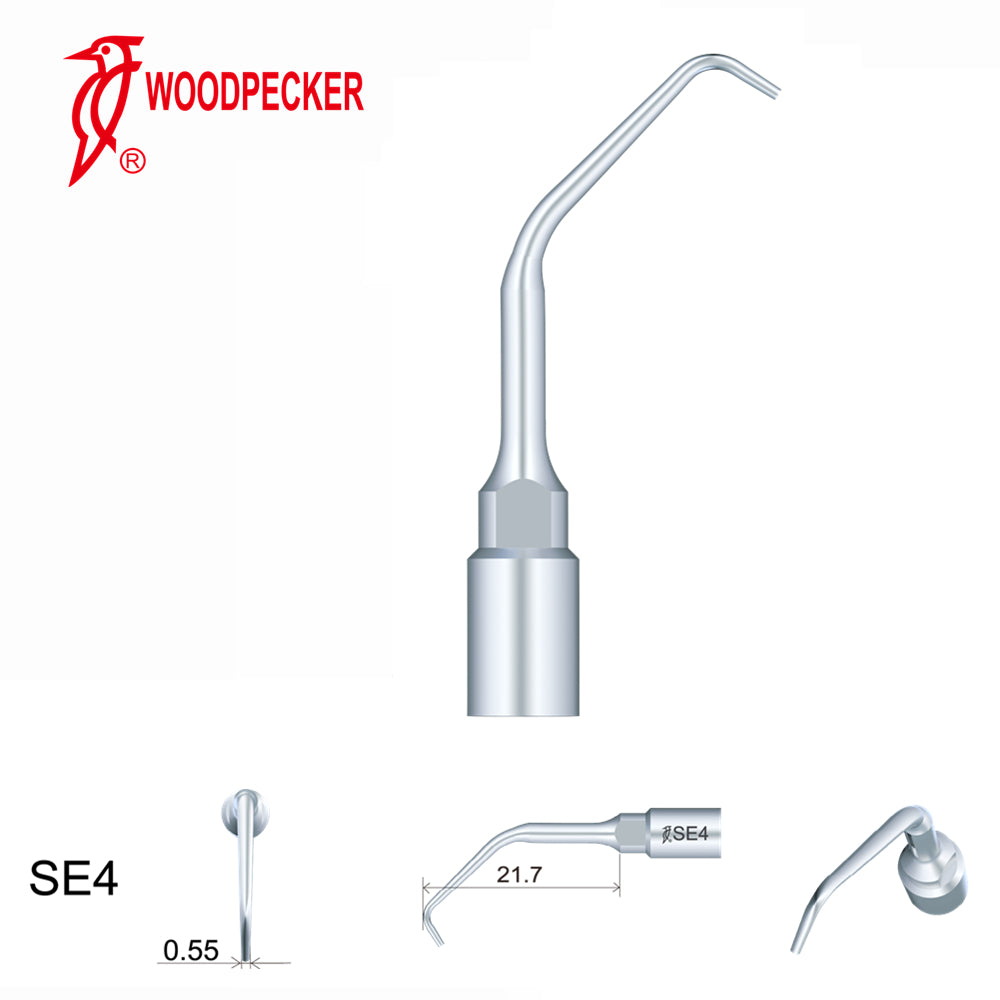

SE4
Polishing the canal wall in apical debridement. The tip smooth part is 3.5 mm in length.

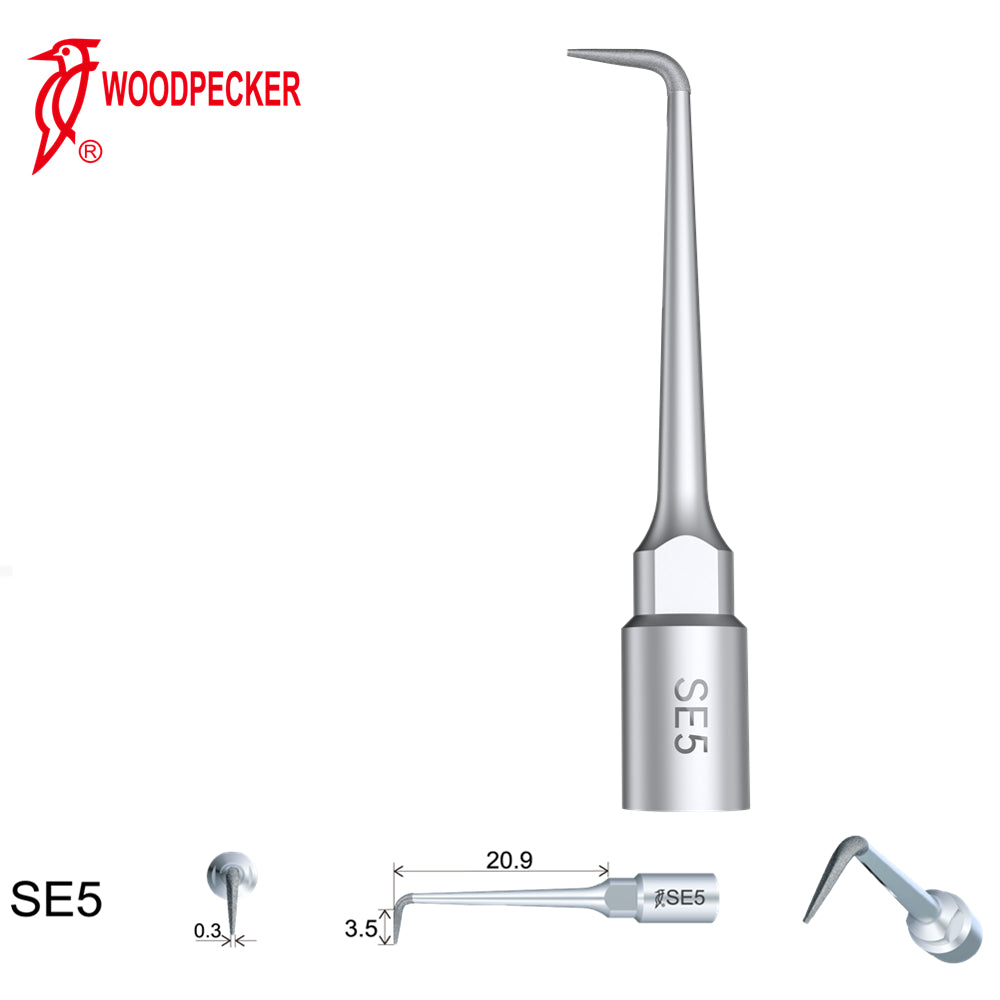

SE5
Diamond-coated, for root-end preparation.

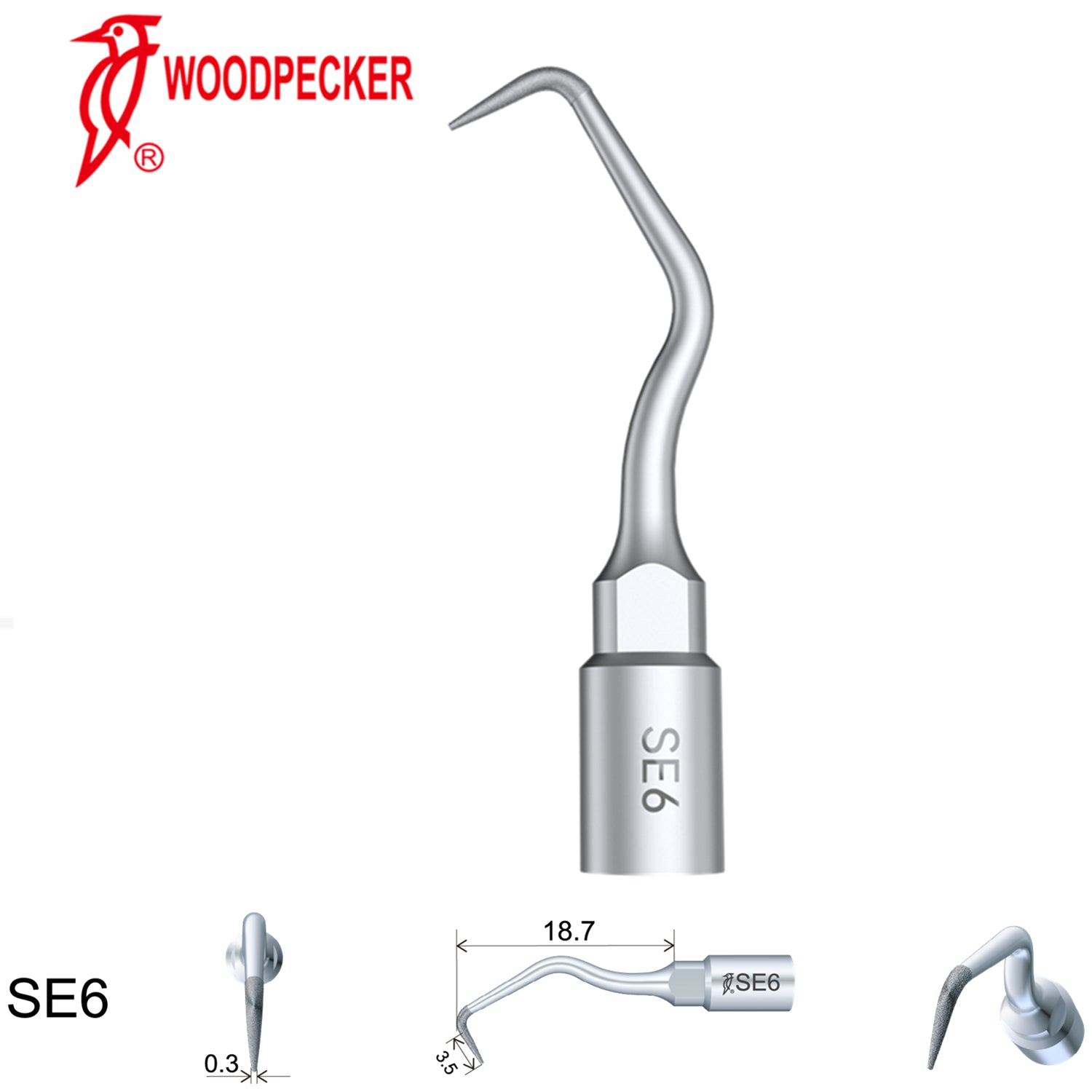

SE6
Diamond-coated, for root-end preparation.

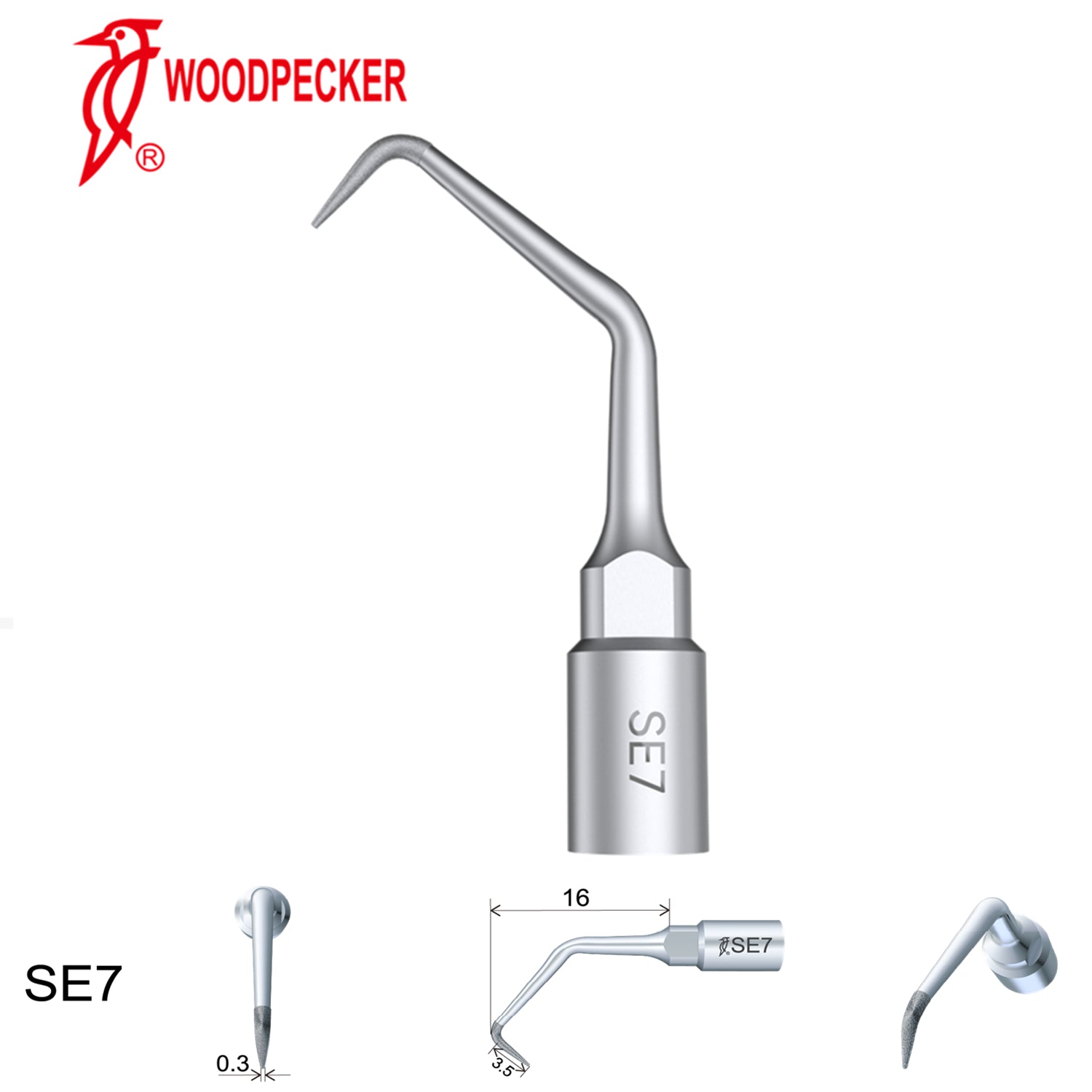

SE7
Diamond-coated, for root-end preparation.

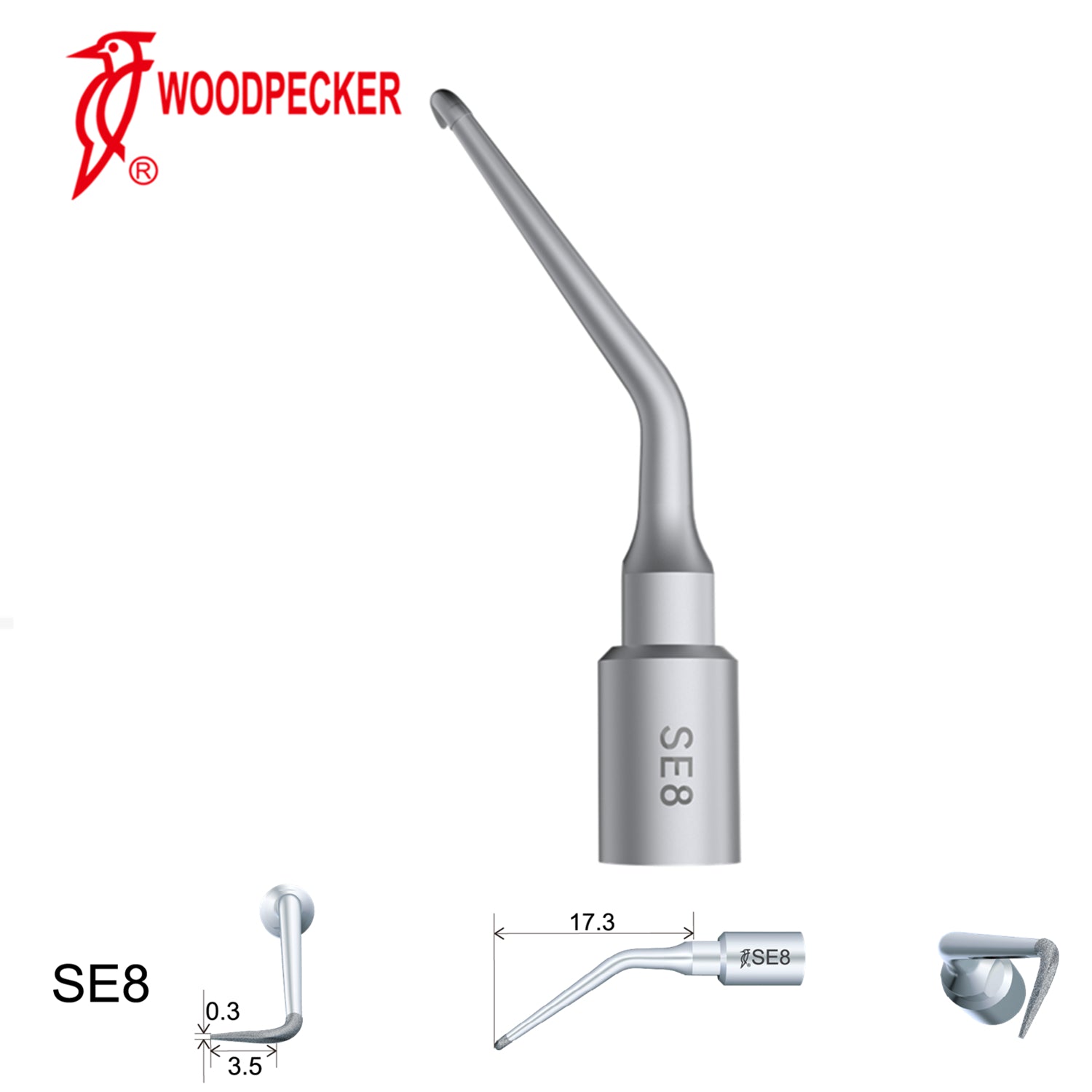

SE8
Diamond-coated, for root-end preparation

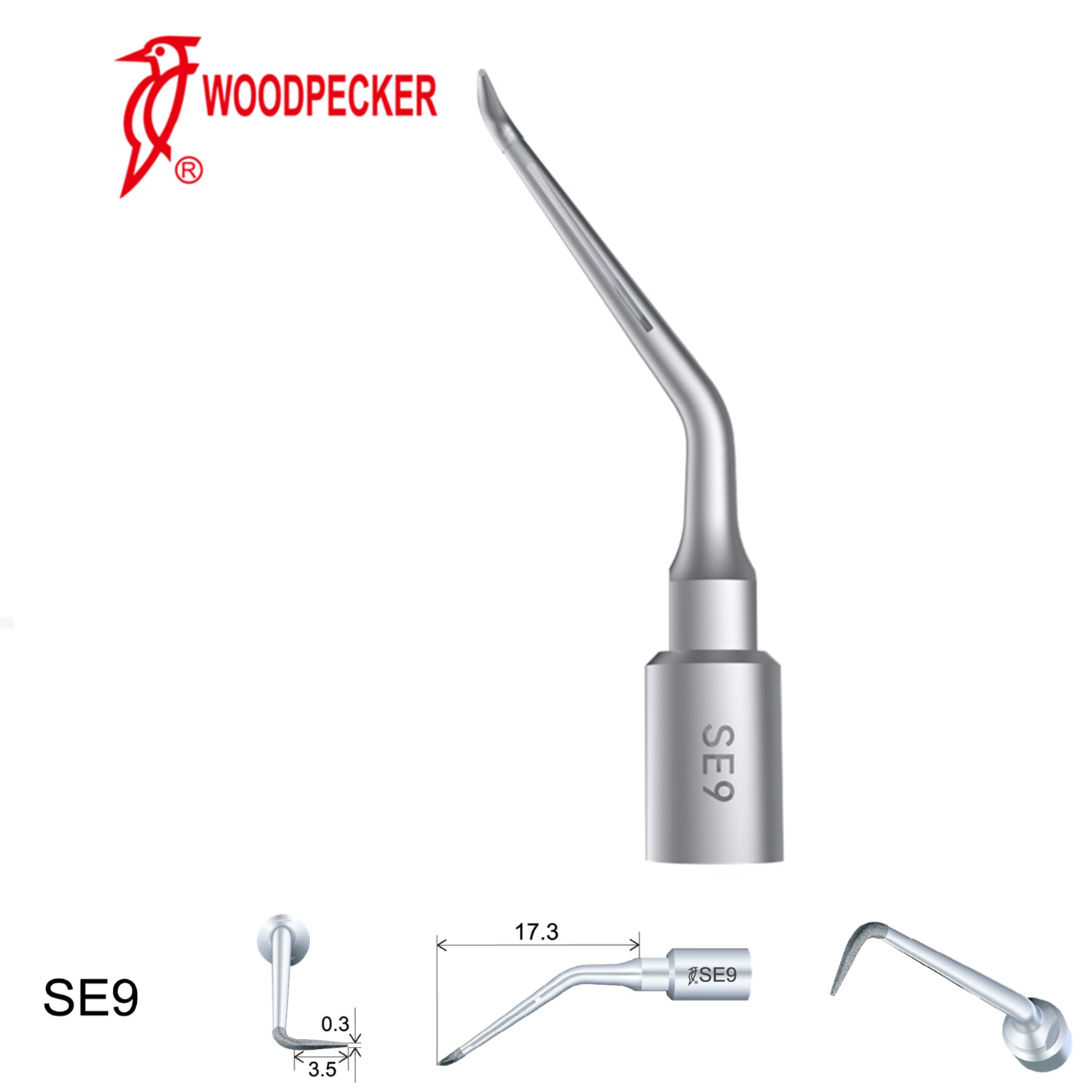

SE9
Right-angled and diamond-coated tip, for root-end preparation.

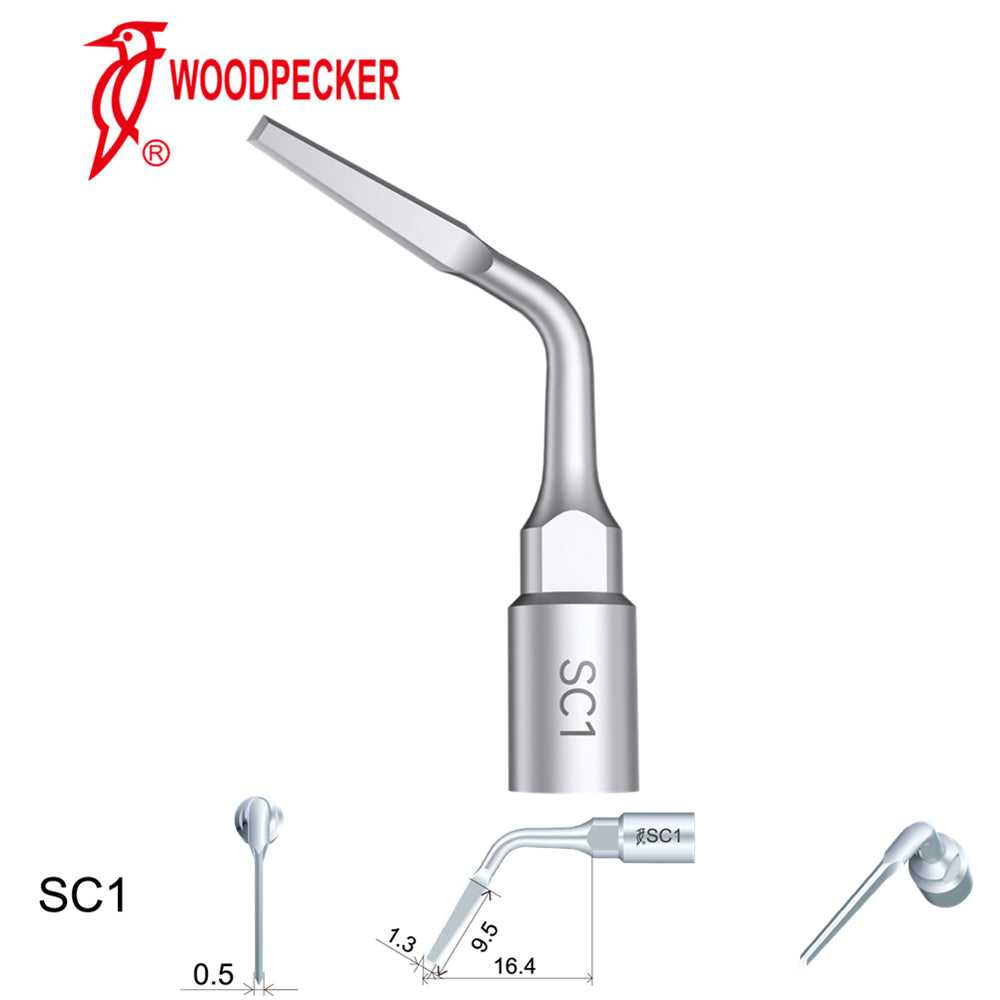

SC1
For minimally invasive removal of ligaments and root surgery.

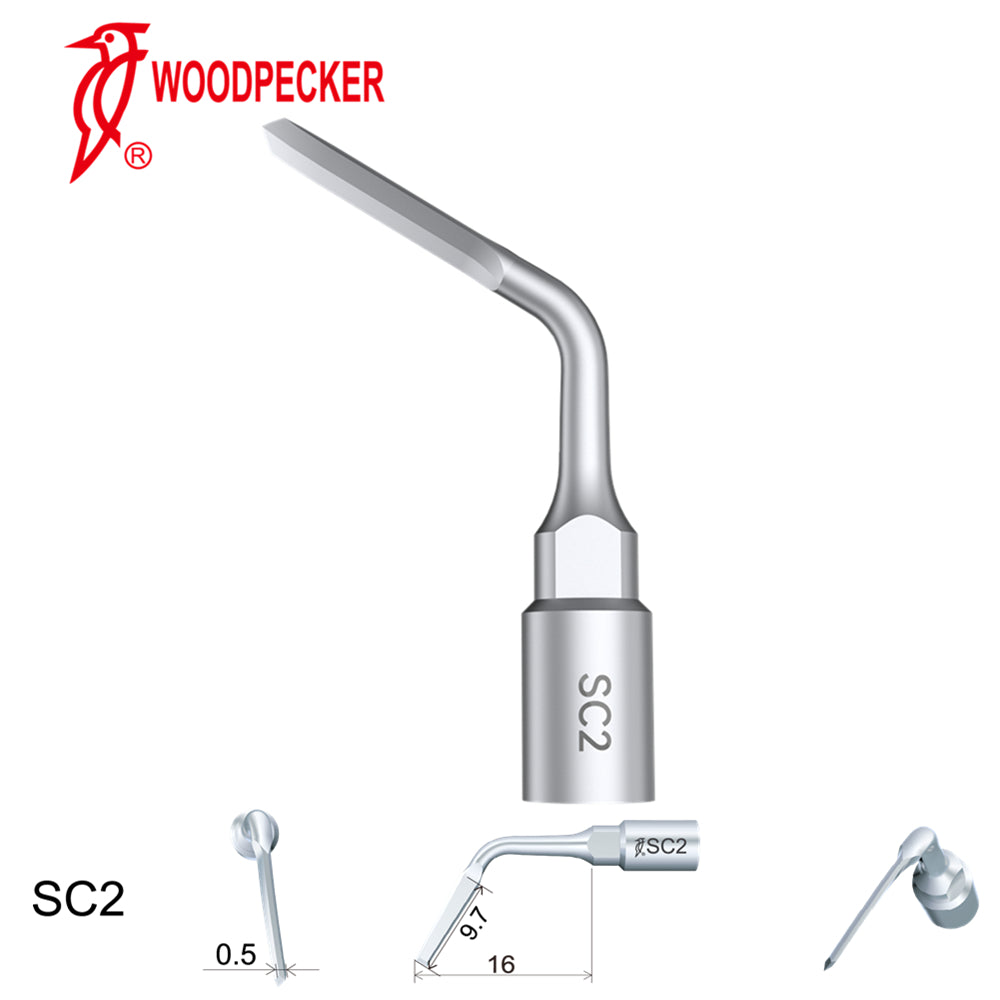

SC2
Left-curved, for minimally invasive removal of ligaments and root surgery in posterior regions.

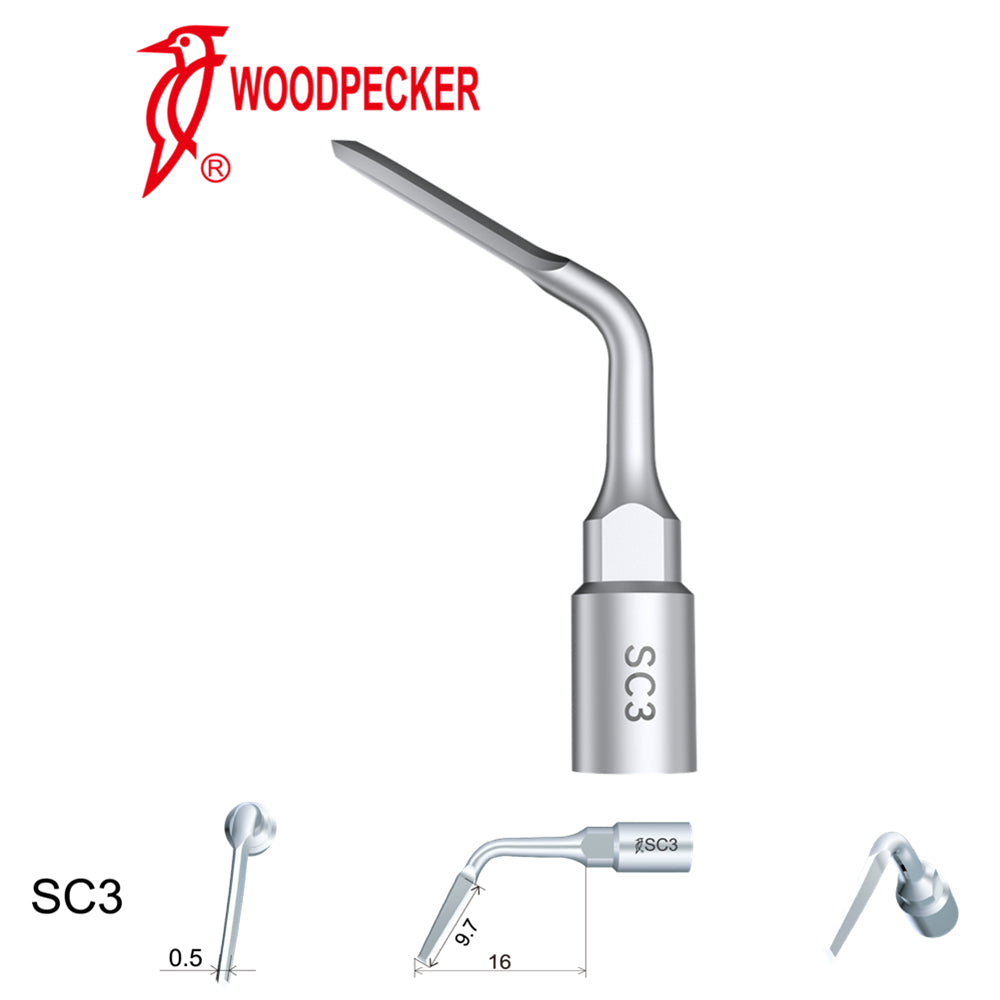

SC3
Right-curved, for minimally invasive removal of ligaments and root surgery in posterior regions.

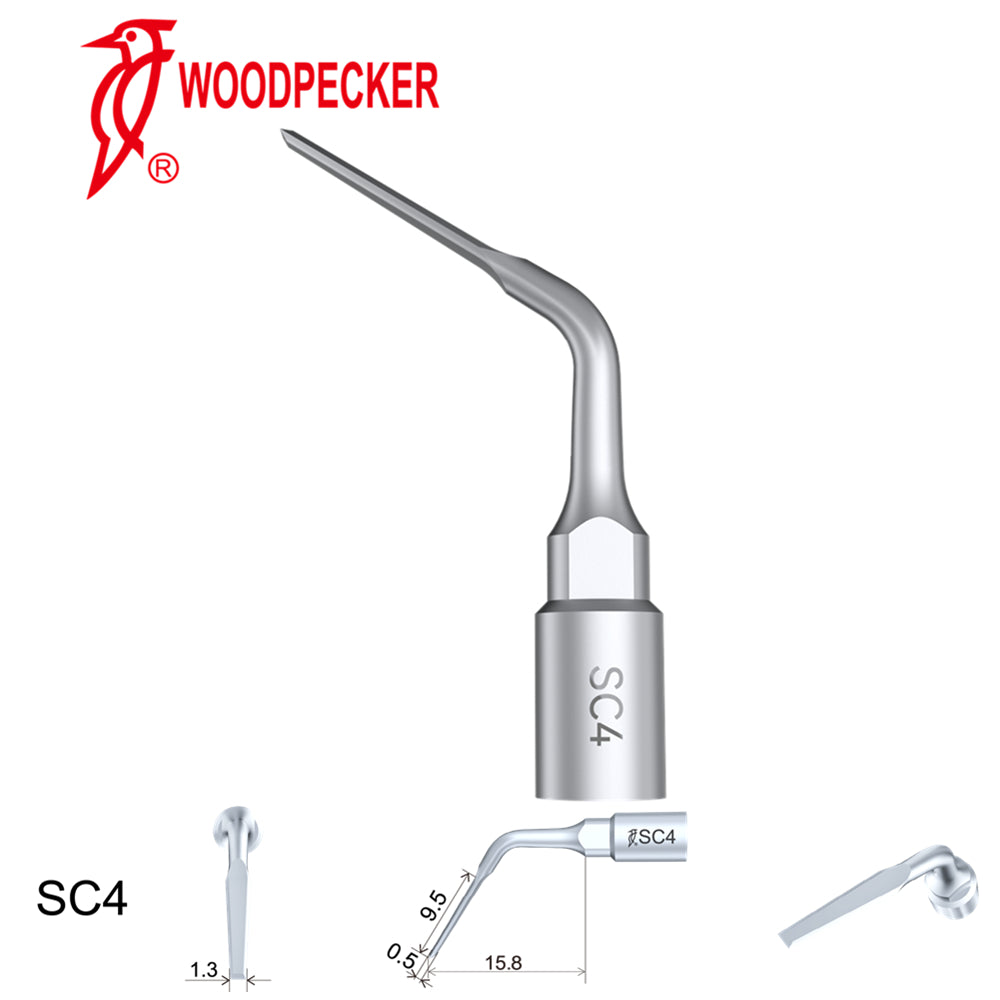

SC4
For distal ligament cutting, minimally invasive extraction.

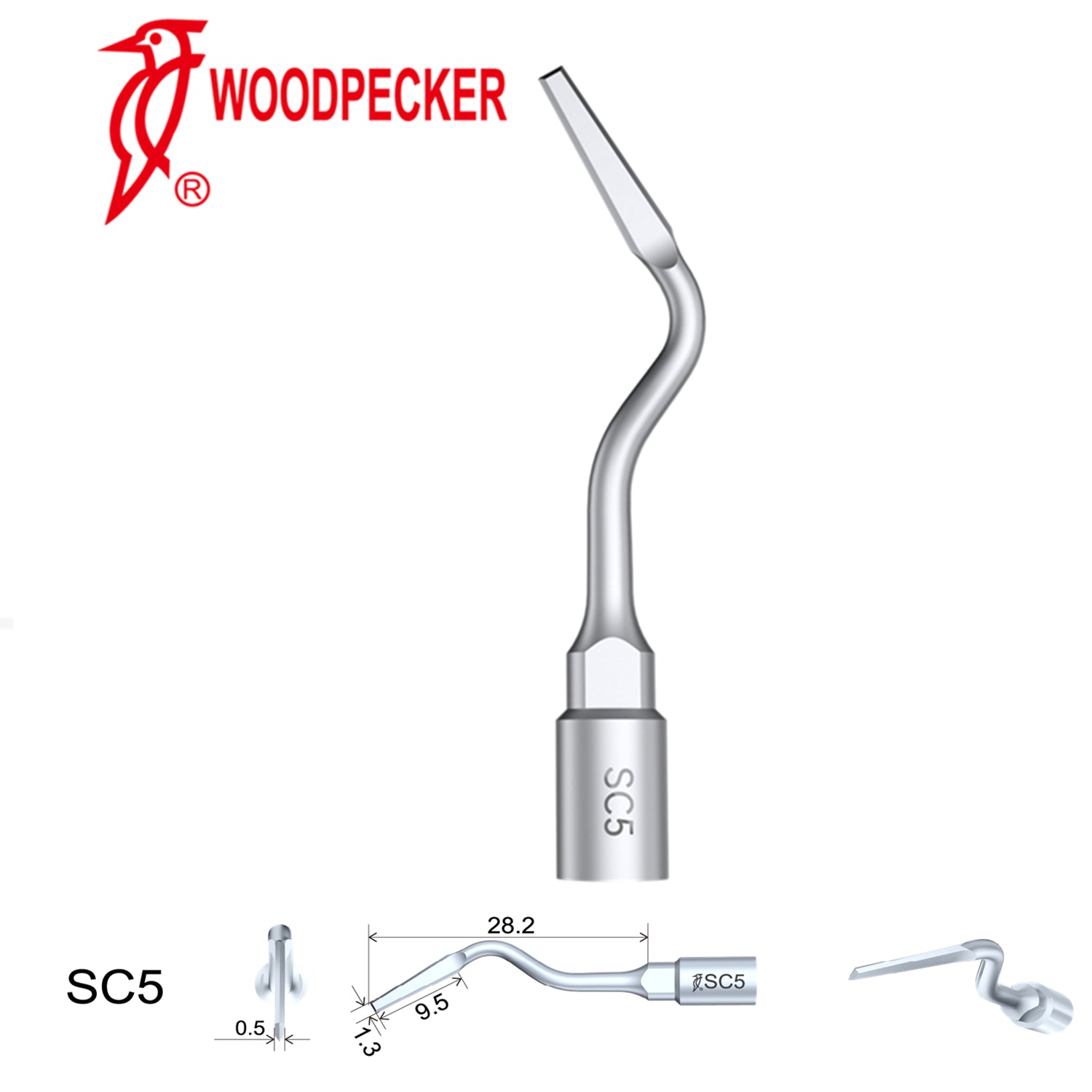

SC5
For minimally invasive cutting of ligaments and gap increase in tooth extraction, especially suitable for the extraction of wisdom teeth with an oblique angle.

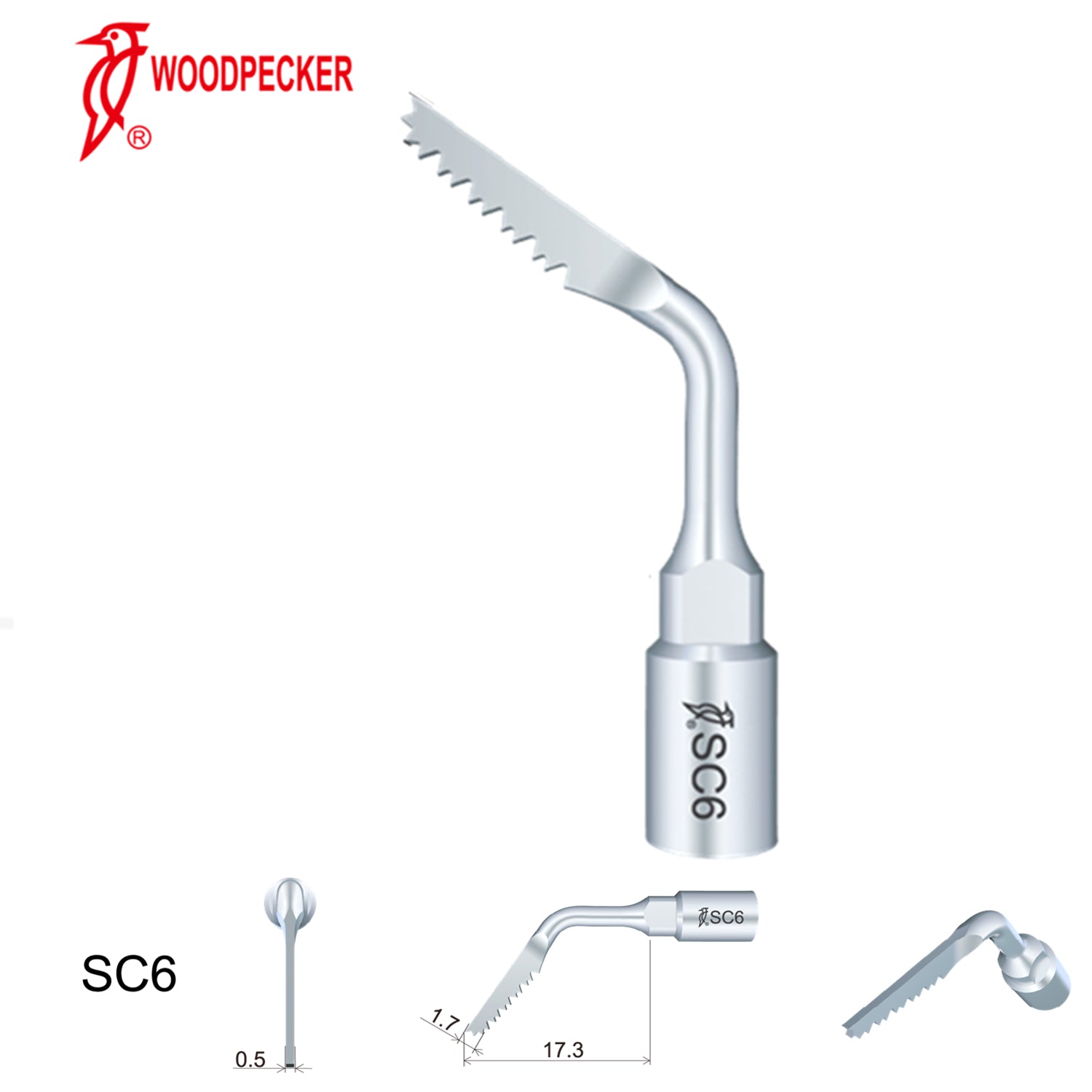

SC6
For tooth extraction and alveolar bone splitting.

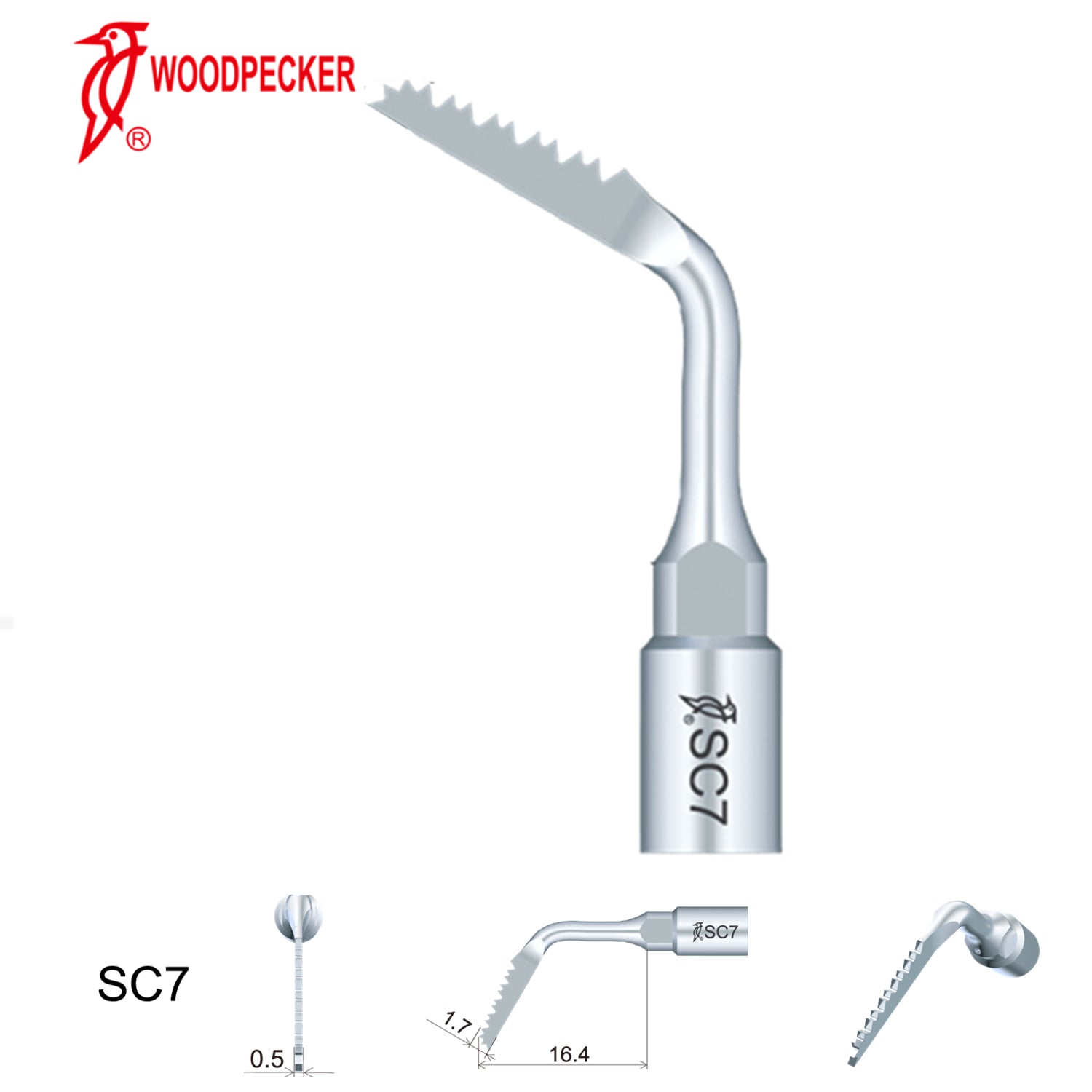

SC7
For tooth extraction and alveolar bone splitting.

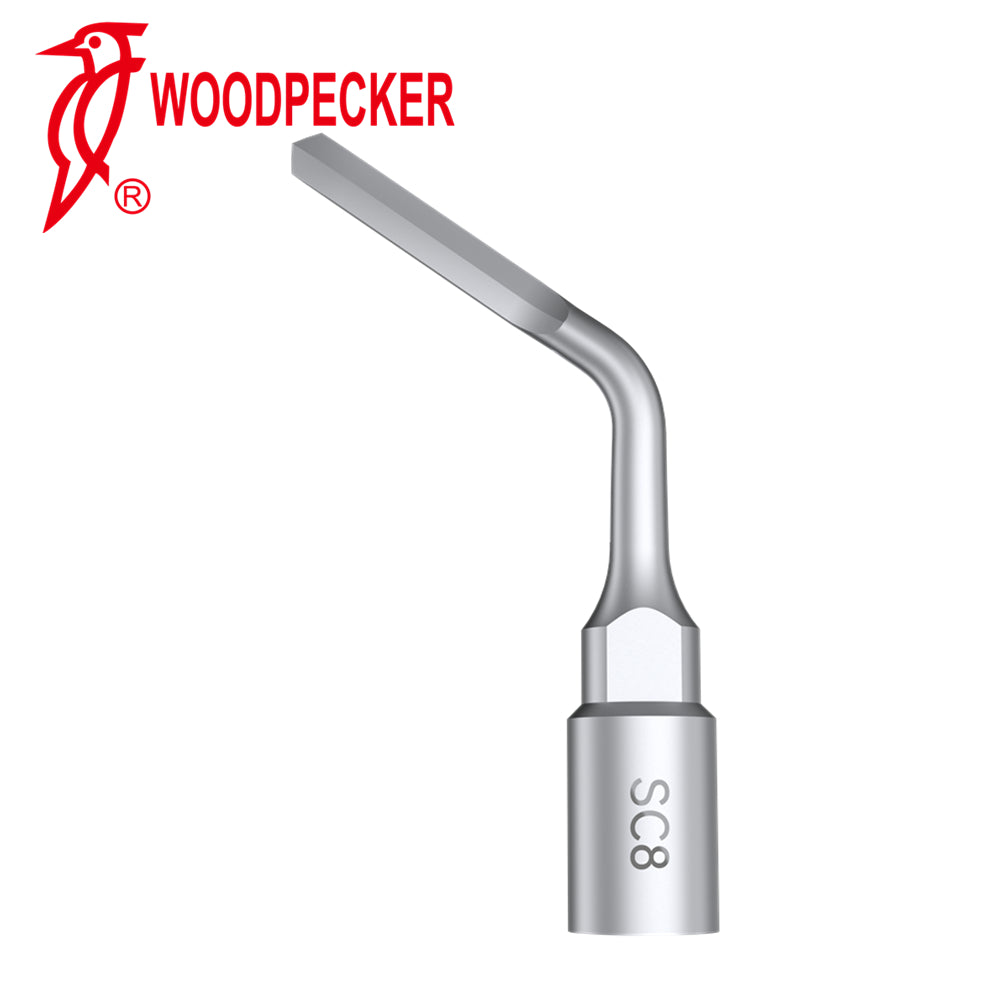

SC8
For minimally invasive cutting of ligaments and gap increase in tooth extraction, with a very sharp and pointed tip extremity.

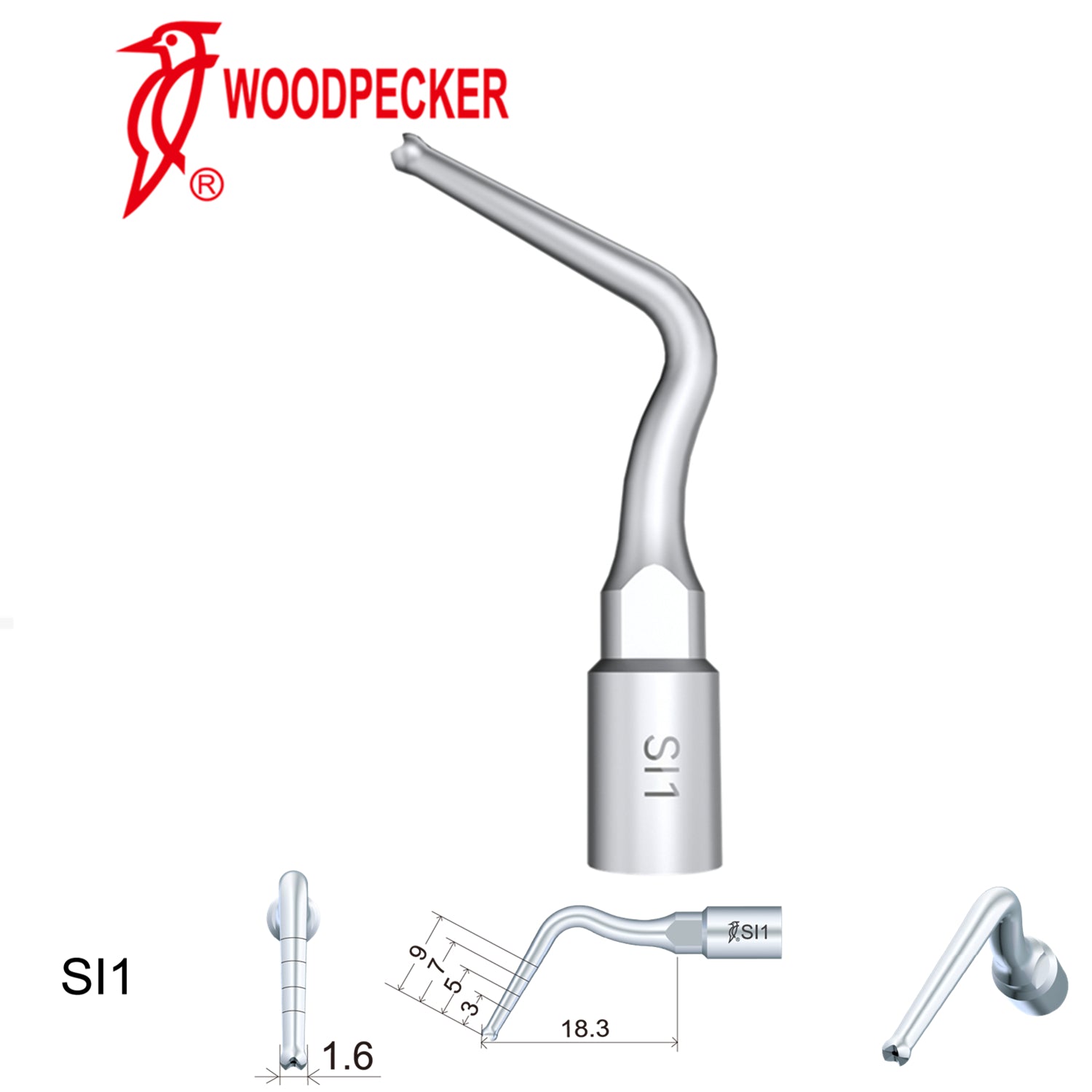

SI1
For implant preparation, with Φ1.6mm head and 9mm tip working length.

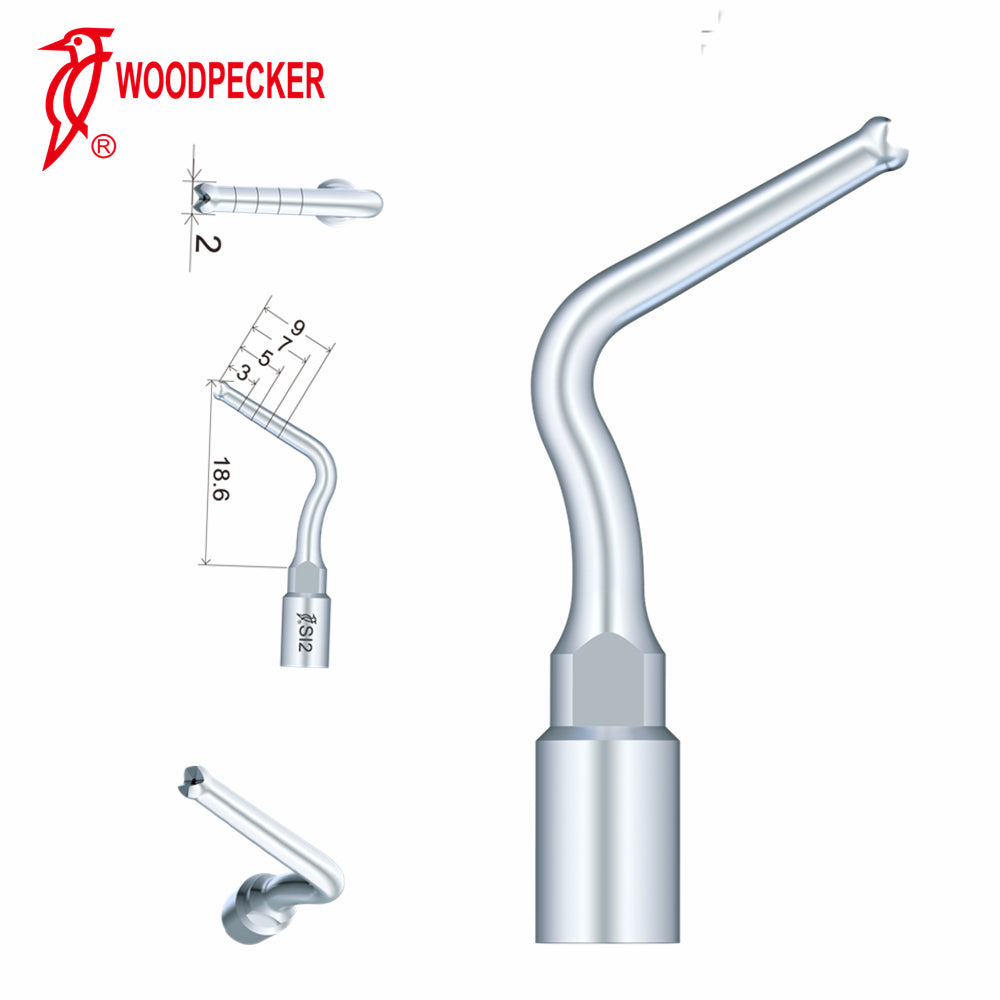

SI2
For implant preparation, with Φ2mm head. There is water out from the tip center to avoid overheating.

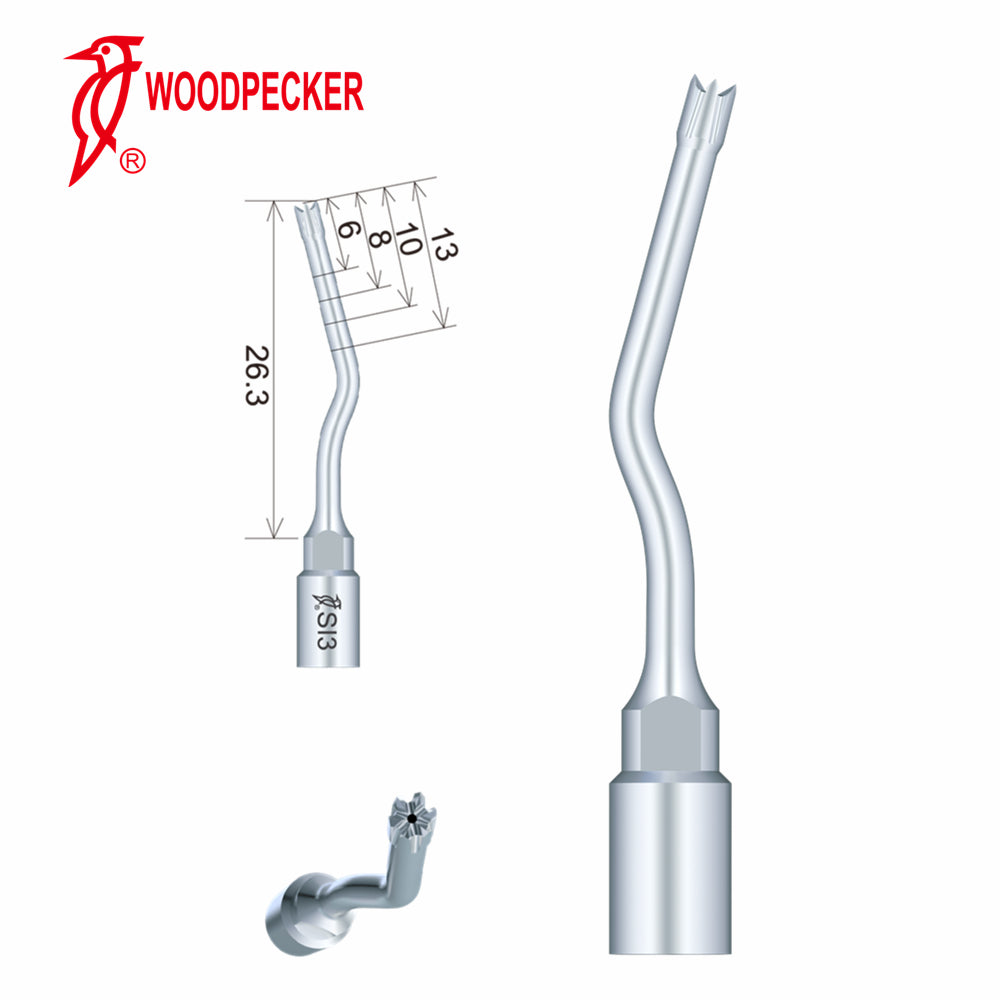

SI3
Φ2mm implant preparation tip used in the anterior regions, with sharp tip extremity and water out from the center.

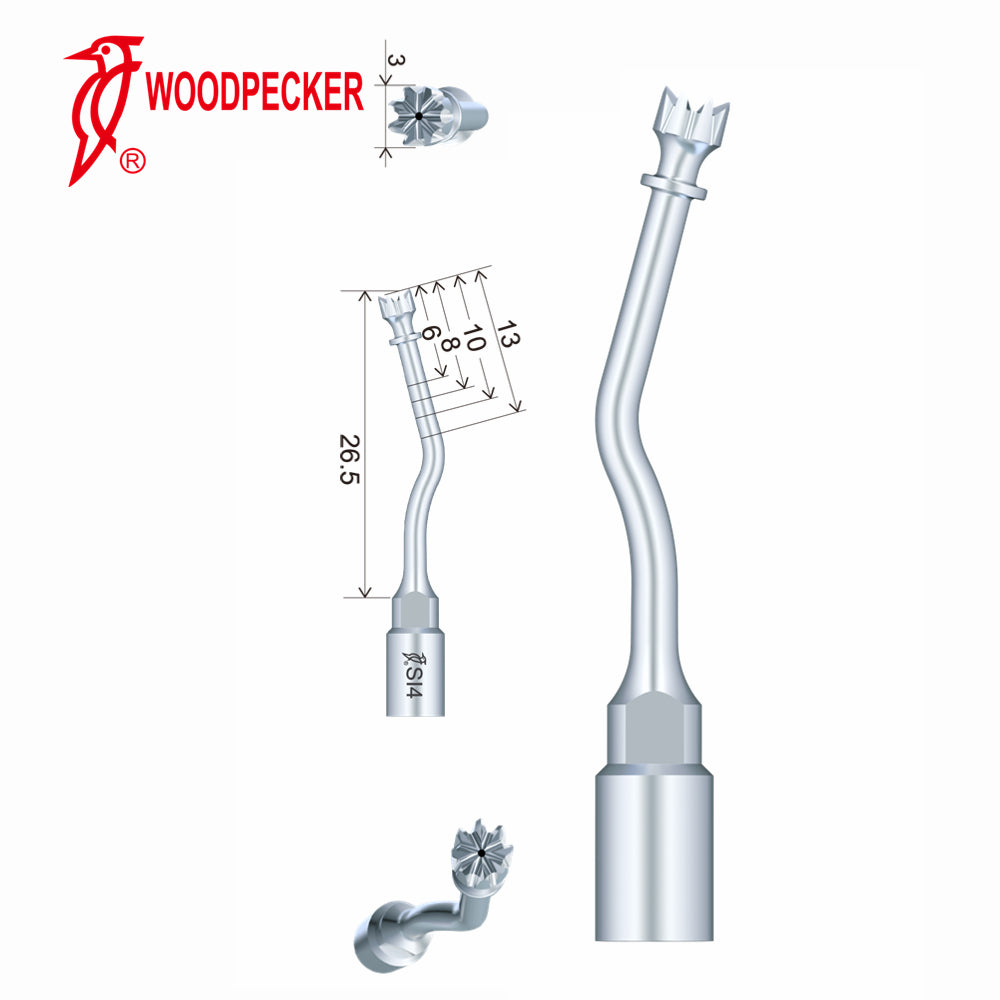

SI4
Φ3mm implant preparation tip used in the anterior regions, with sharp tip extremity and water out from the center.

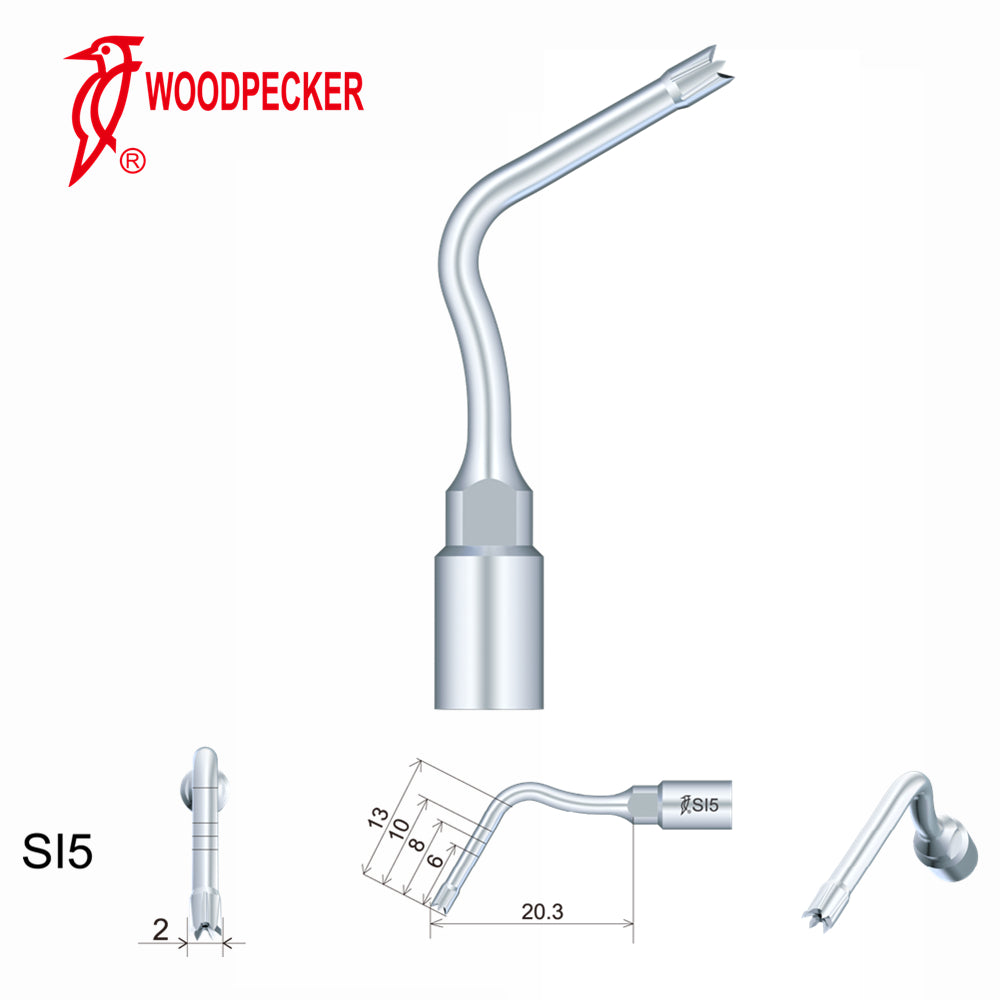

SI5
Φ2mm implant preparation tip used in the posterior regions, with sharp tip extremity and water out from the center.

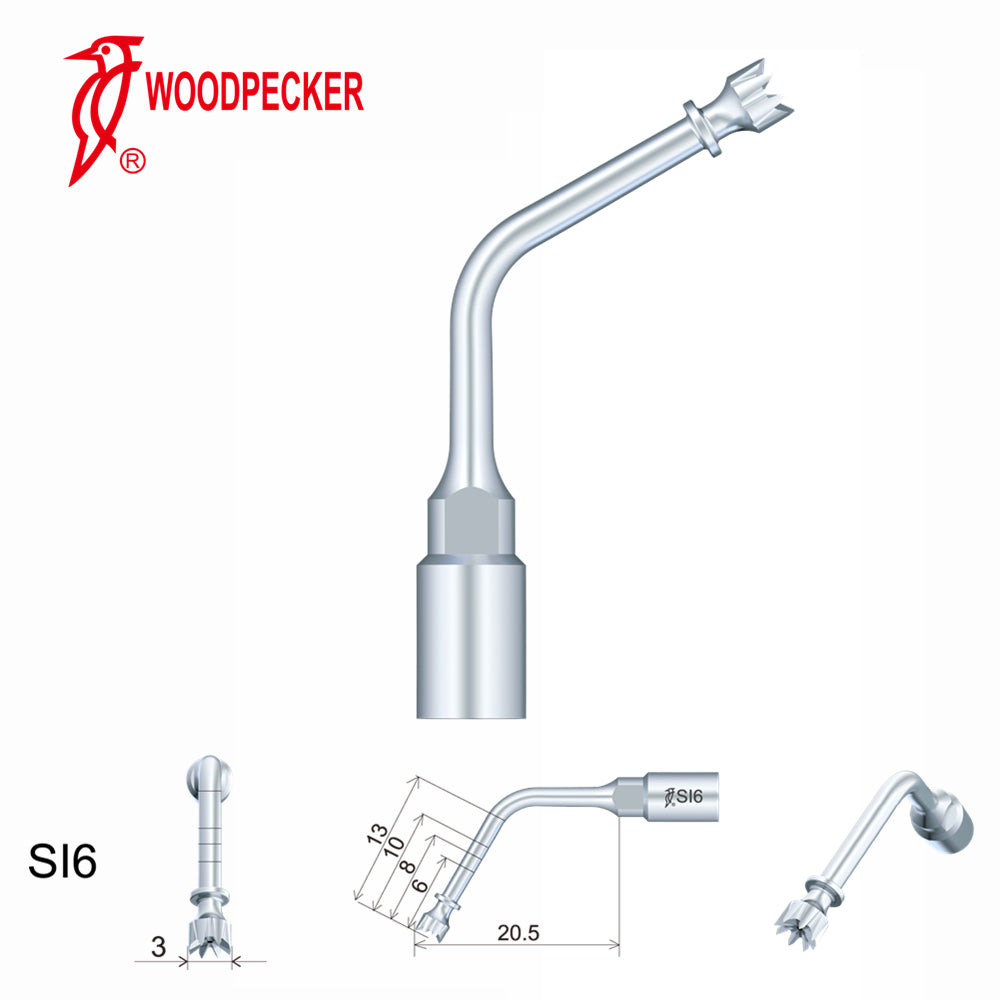

SI6
Φ3mm implant preparation tip used in the posterior regions, with sharp tip extremity and water out from the center.

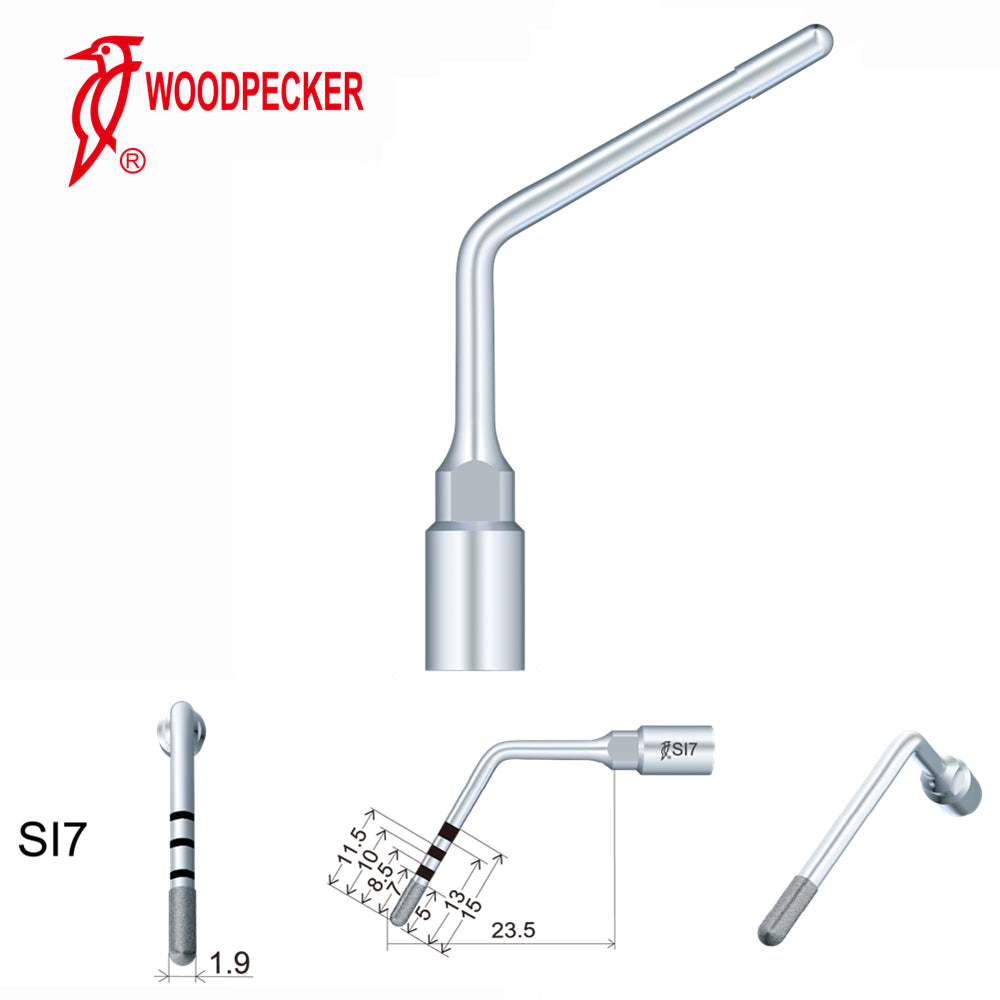

SI7
Diamond-coated (85μm), for finalizing implant site bone preparation close to the alveolar nerve.

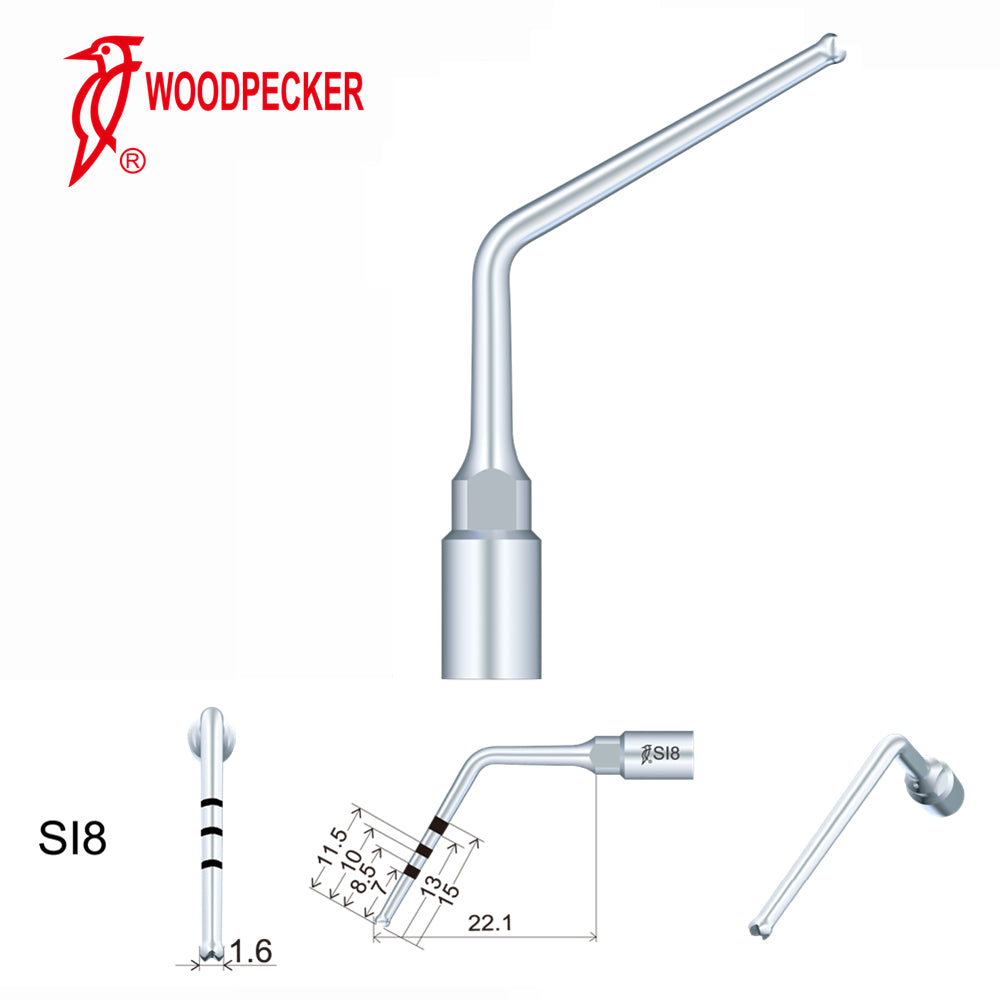

SI8
For implant preparation, with Φ1.6mm head and 9mm tip working length.

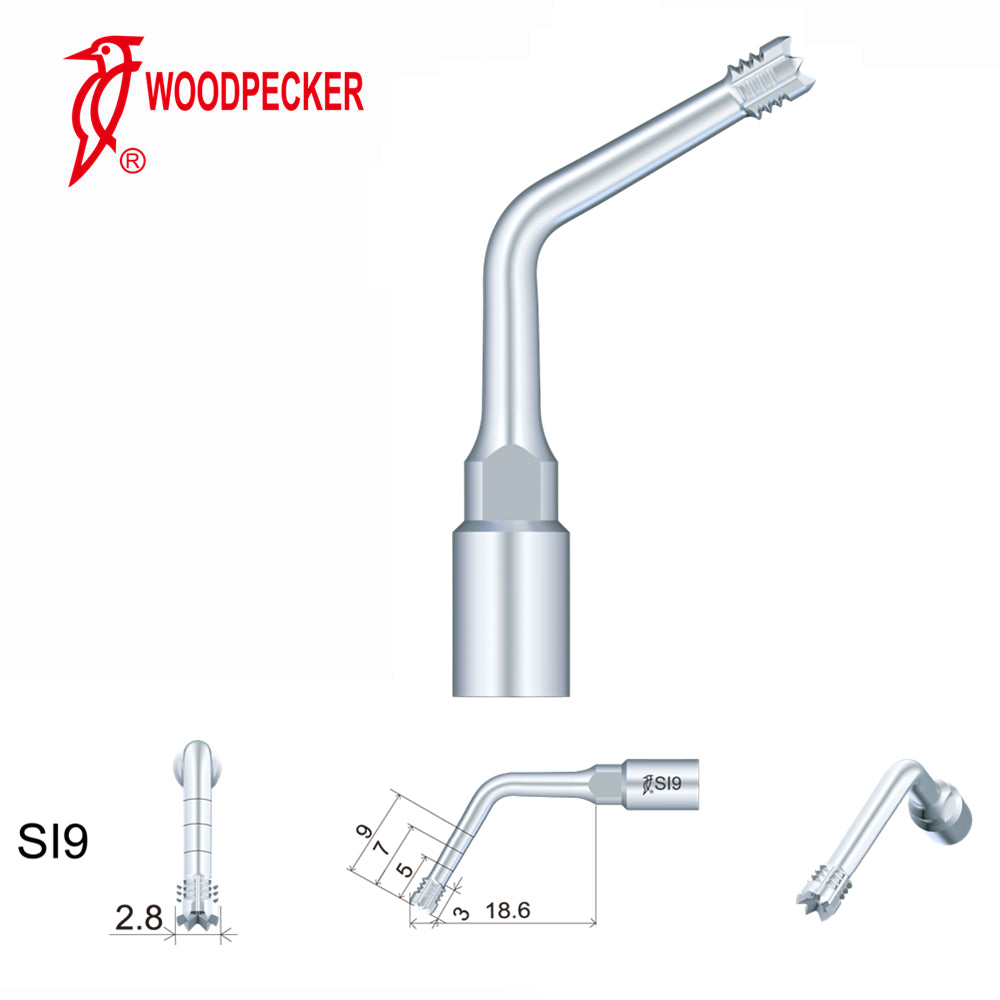

SI9
For implant preparation, with Φ2.8mm head. There is water out from the tip center to avoid overheating.

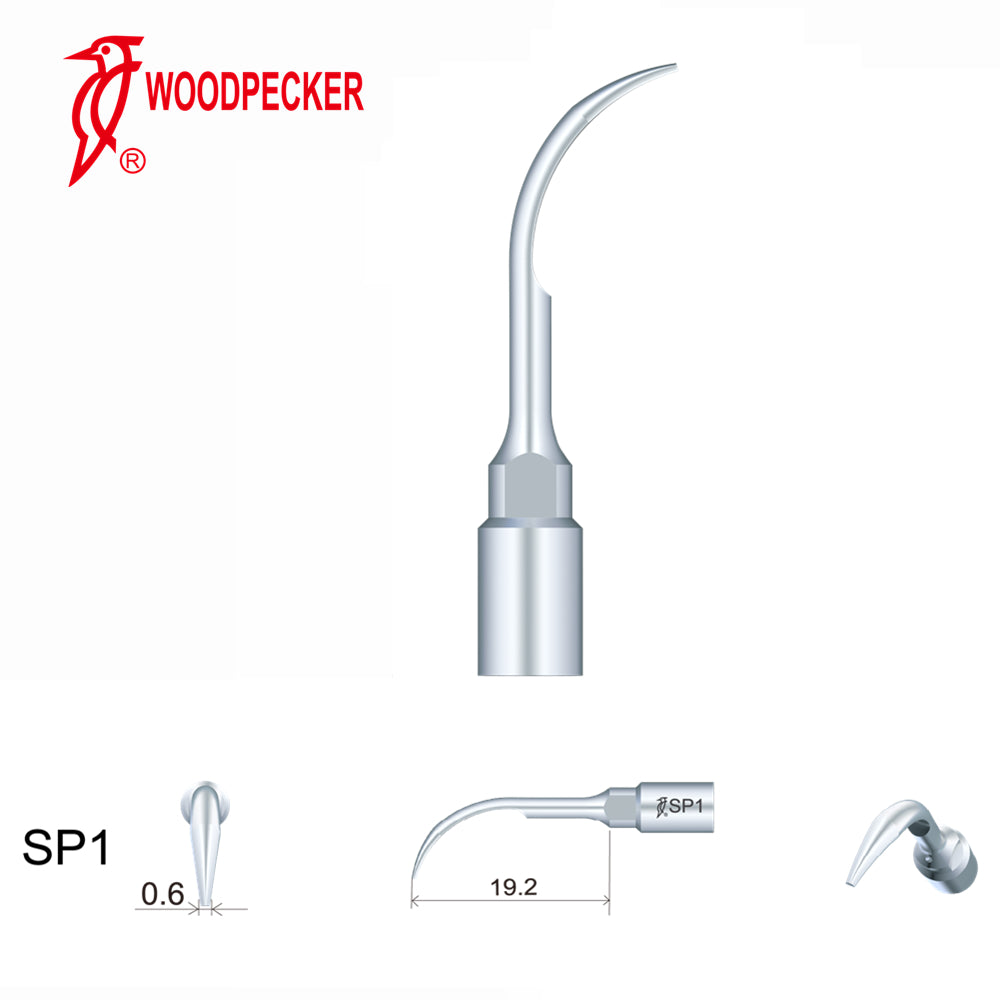

SP1
For gentle scaling in periodontal surgery.

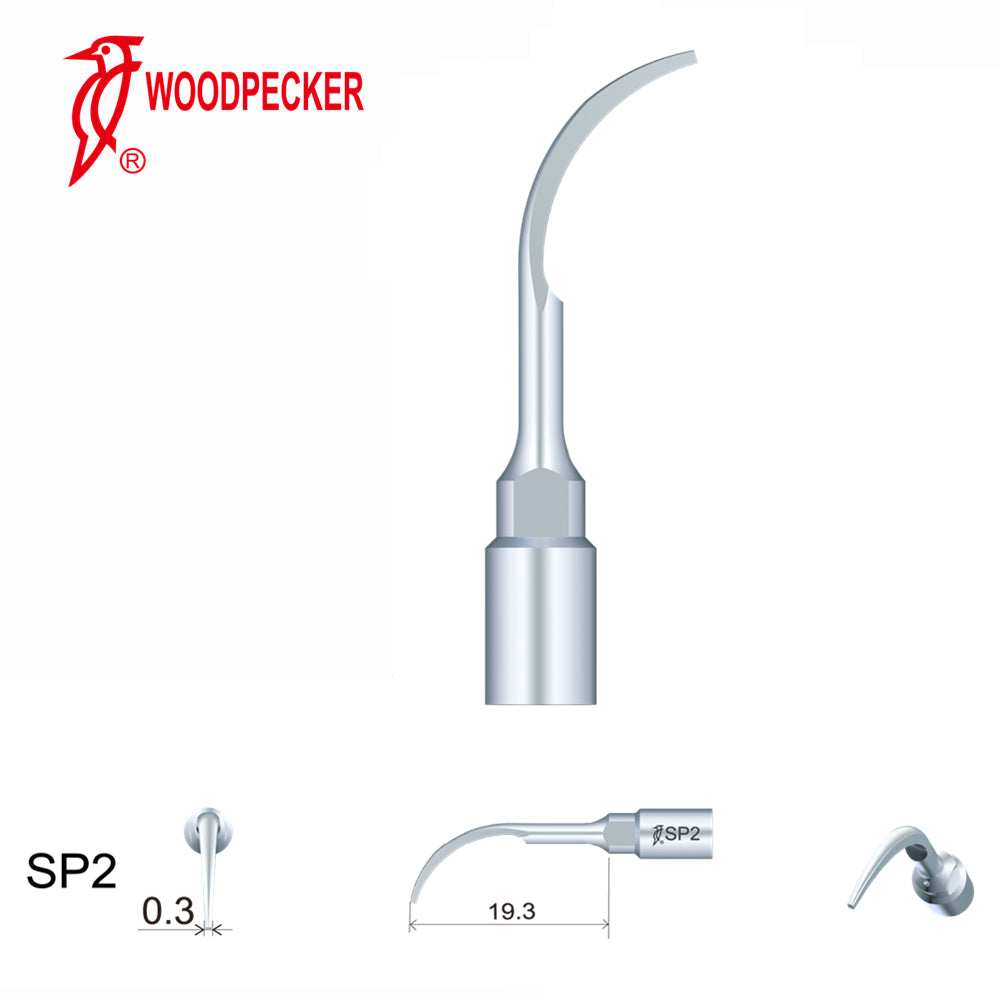

SP2
For fractured root apex extraction and inflammatory tissue removal.

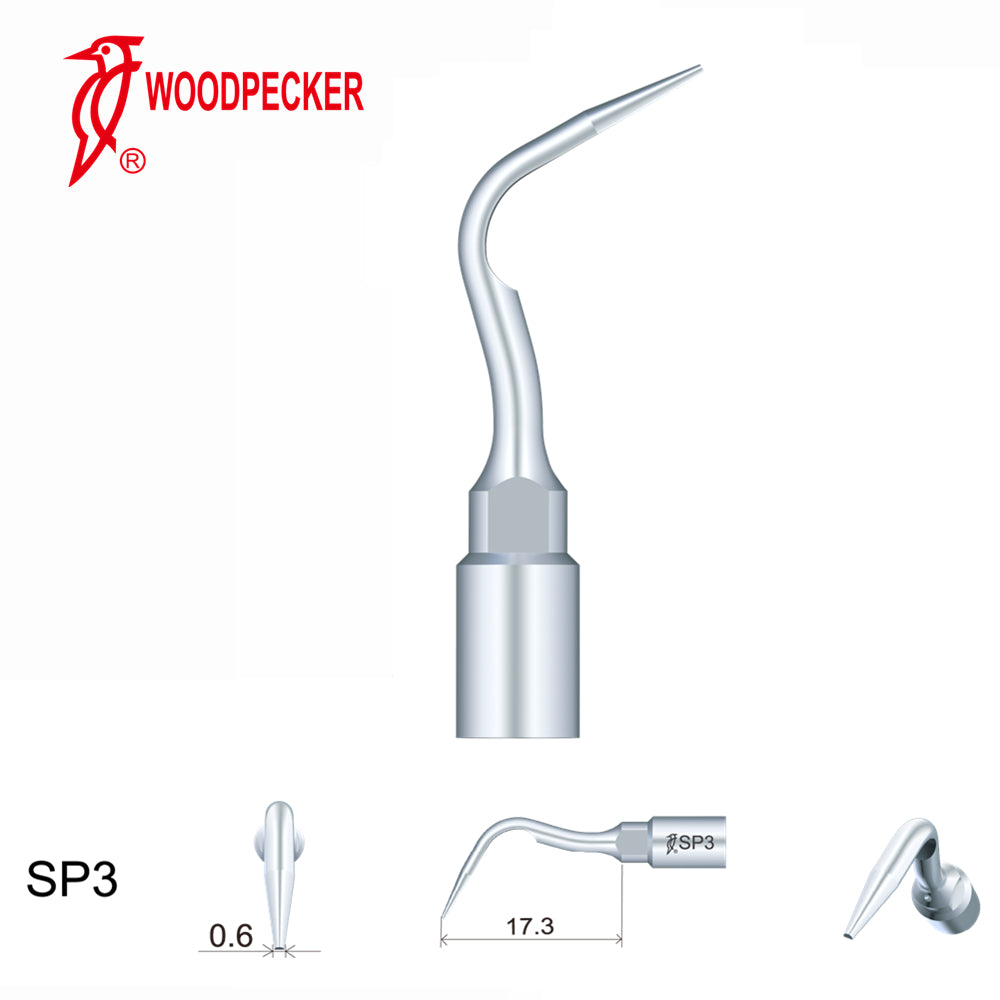

SP3
For multi-angled gentle scaling in periodontal surgery.

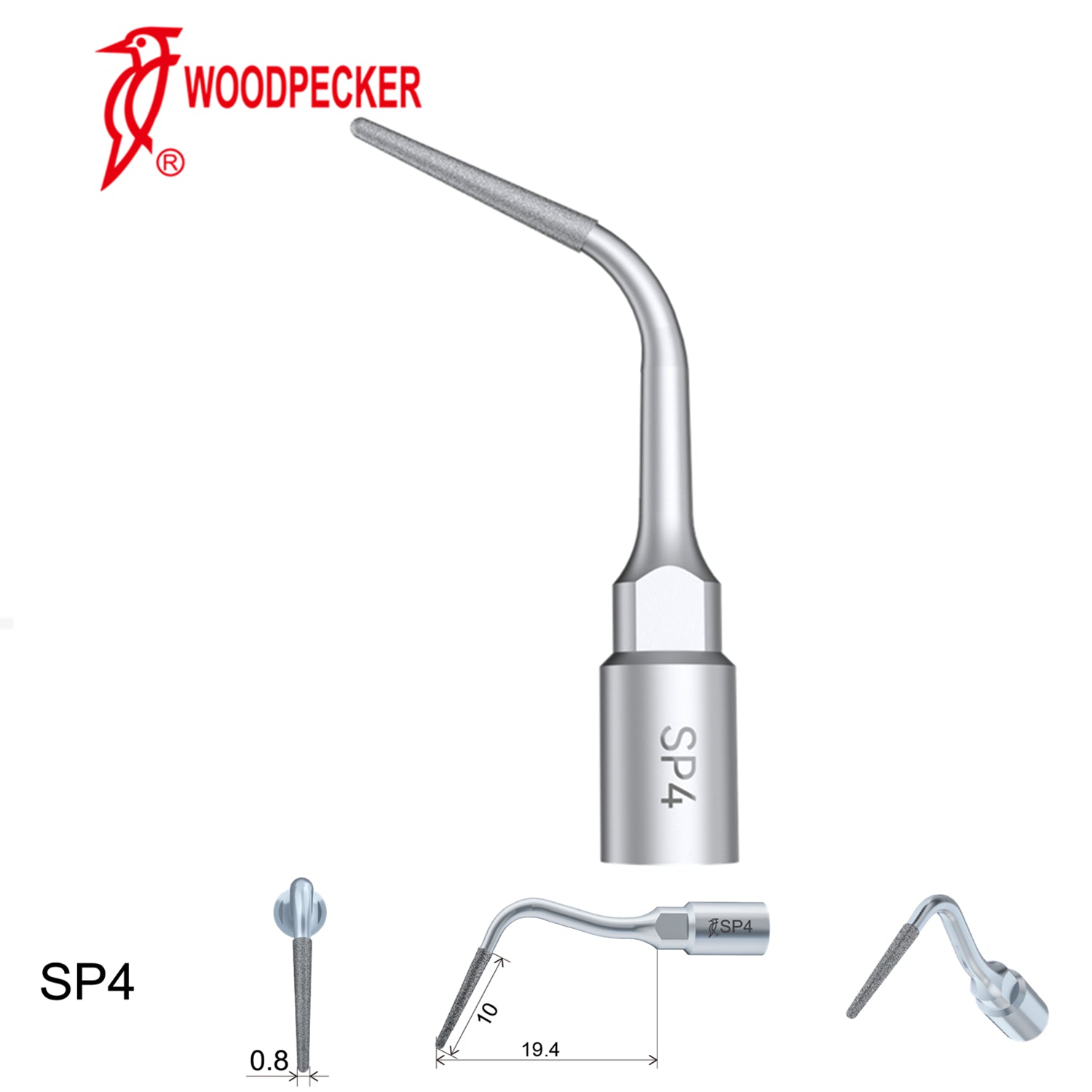

SP4
Diamond-coated (40μm), for apical debridement and root planning.

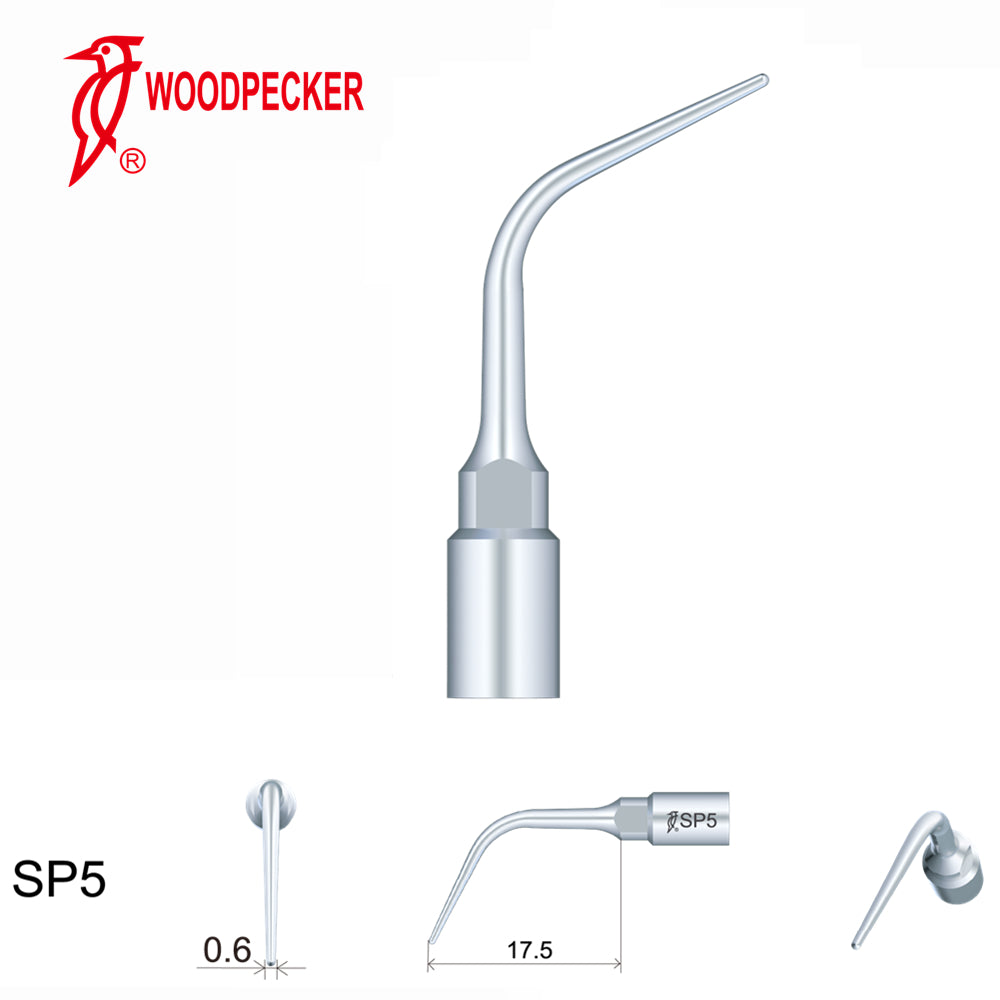

SP5
For fine root planning.

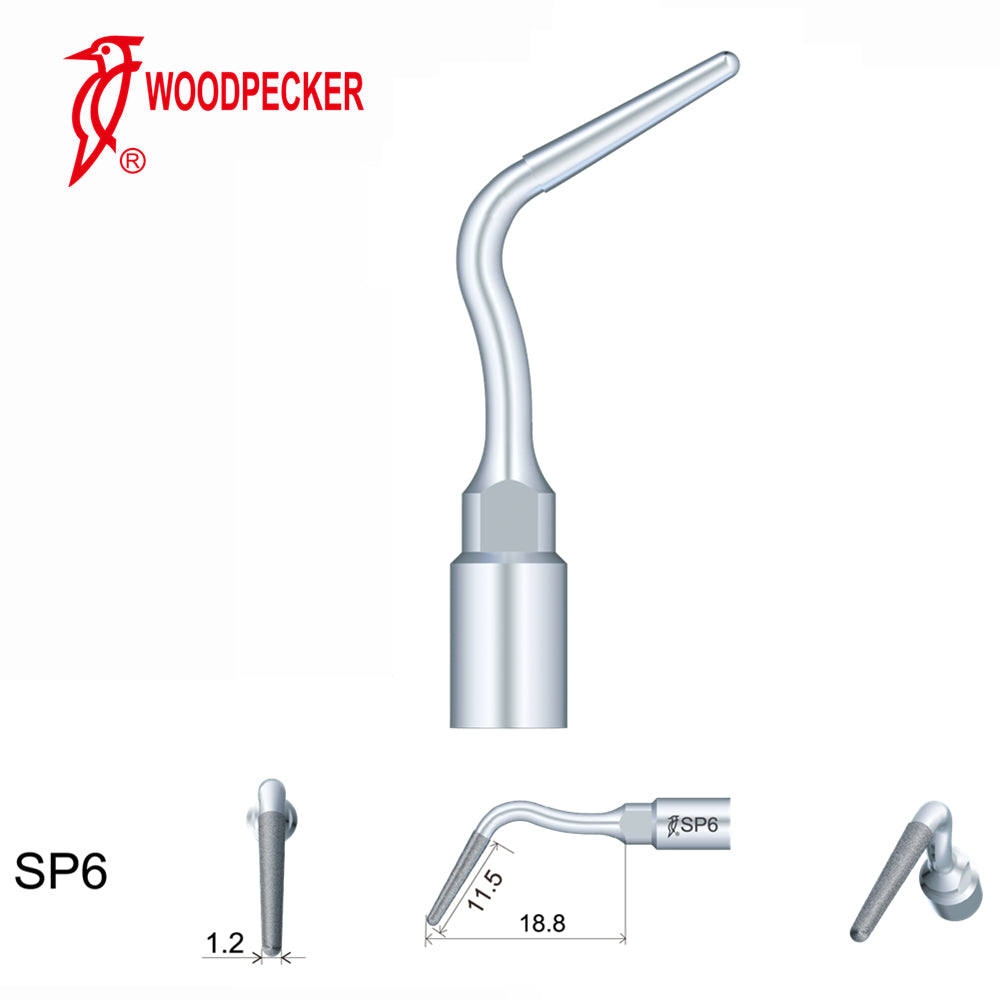

SP6
Diamond-coated (40μm) tip for fine osteoplasty: interproximal osteoplasty and root planning.

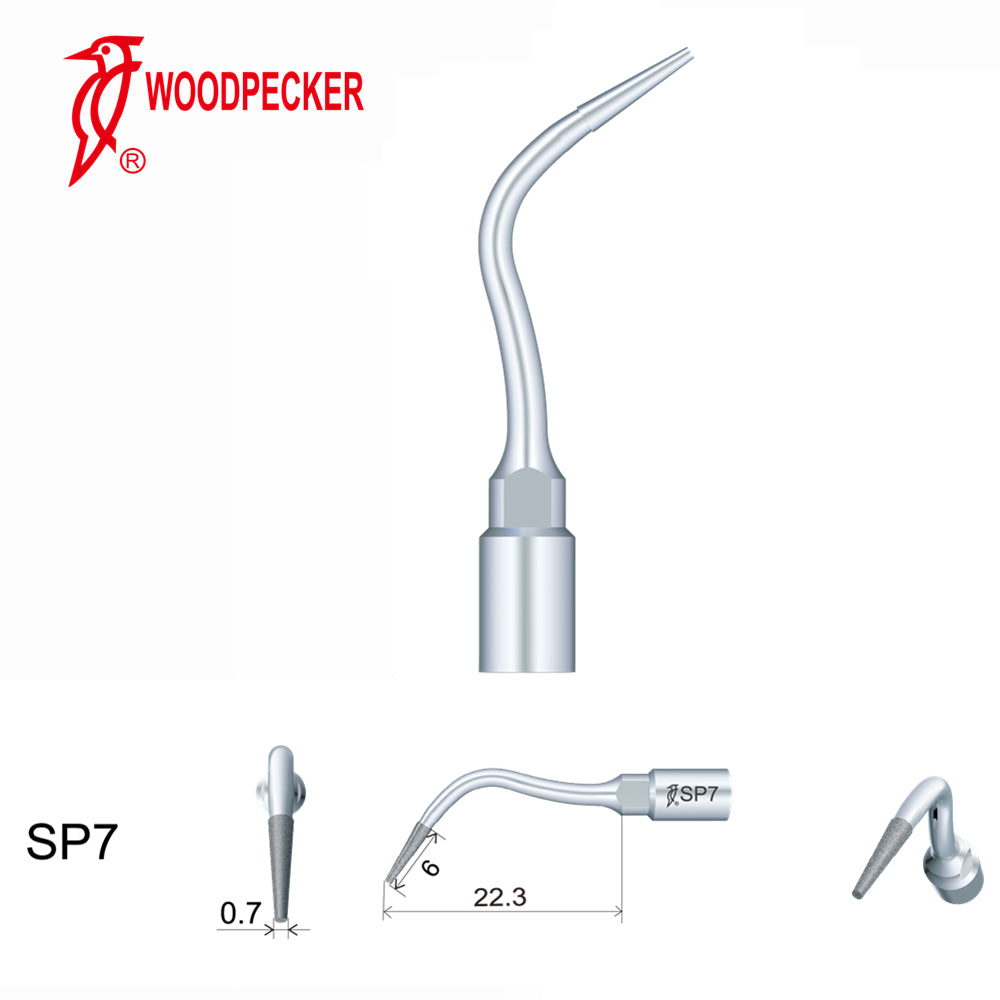

SP7
Diamond-coated (40μm), for root canal locating and removal of calcifications in the coronal 1/3 part of root canal, and can also be used for fine osteoplasty.

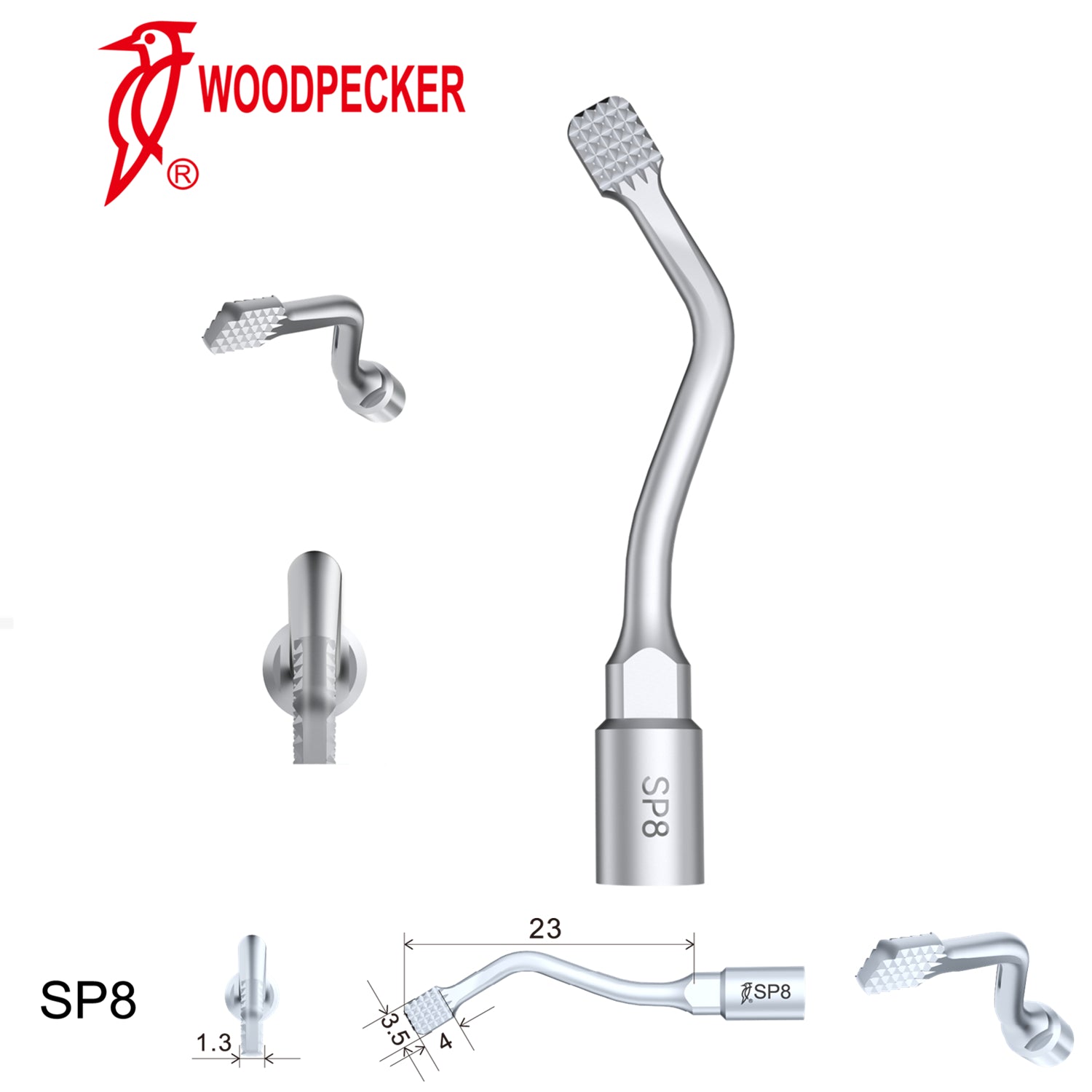

SP8
Coarse mesh-shaped concave-convex surfaces on both sides of the head, for osteoplasty and bone trimming.

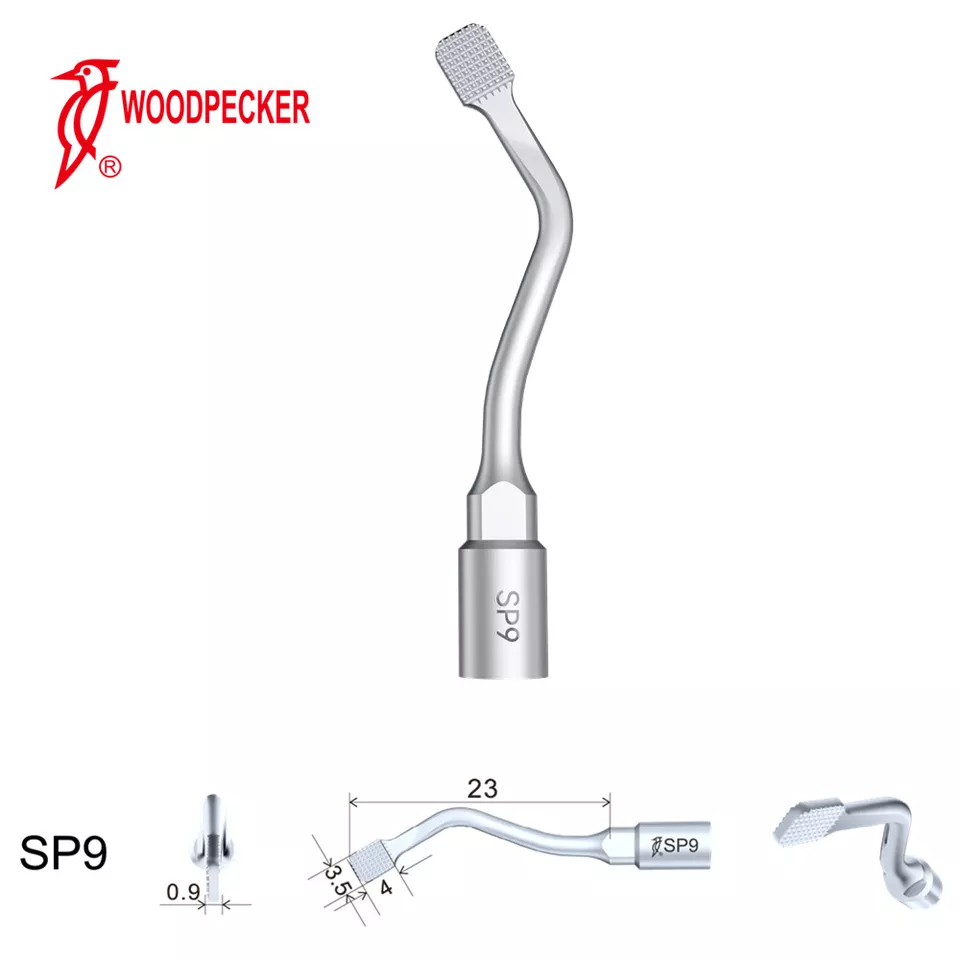

SP9
Coarse mesh-shaped concave-convex surfaces on both sides of the head, for osteoplasty and bone trimming.
