Description
German SCHOTT Lens
Crystal-Clear Visualization in True Color
- Equipped with German SCHOTT lenses with apochromatic and multi-layer optical coating system
- Delivers high-contrast, crystal-clear images with excellent color fidelity
- Stable performance under various lighting conditions, ensuring sharp visualization of the surgical field
- Enhances clinical diagnostics with accurate tissue color reproduction
Stepless Zoom System
Uninterrupted Field of View
- 0.4X to 2.6X continuous zoom range
- Delivers uninterrupted field of view with magnification from 1.25X to 19.5X
190–570mm Wide-Range Varifocal Objective Lens
Quick Single-Handed Adjustment
- Working distance range of 190–570mm
- Enables easy focusing on anterior/posterior teeth and upper/lower jaws without repositioning
- Focus knob positioned near the handle for quick, single-handed adjustment
German Super Balancing Arm
Smooth and Effortless Control
- Premium German gas spring arm with spring balance system and damping system
- Achieves smooth, accurate, and stable suspension in any position
- Quickly returns to balance even with added accessories
- Minimizes intraoperative repositioning, allowing clinicians to stay focused on treatment
Multi-Filter System
Versatile for Various Needs
- Built-in medical-grade LED with high color rendering index for true-to-life color and reduced eye fatigue
- Orange filter: Prevents premature curing of resin materials
- Green filter: Improves contrast of vessels and soft tissues in bleeding surgical field
Multi-Filter System
Versatile for Various Needs
- Built-in medical-grade LED with high color rendering index for true-to-life color and reduced eye fatigue
- Orange filter: Prevents premature curing of resin materials
- Green filter: Improves contrast of vessels and soft tissues in bleeding surgical field
Freedom of Movement
Endurance in Practice

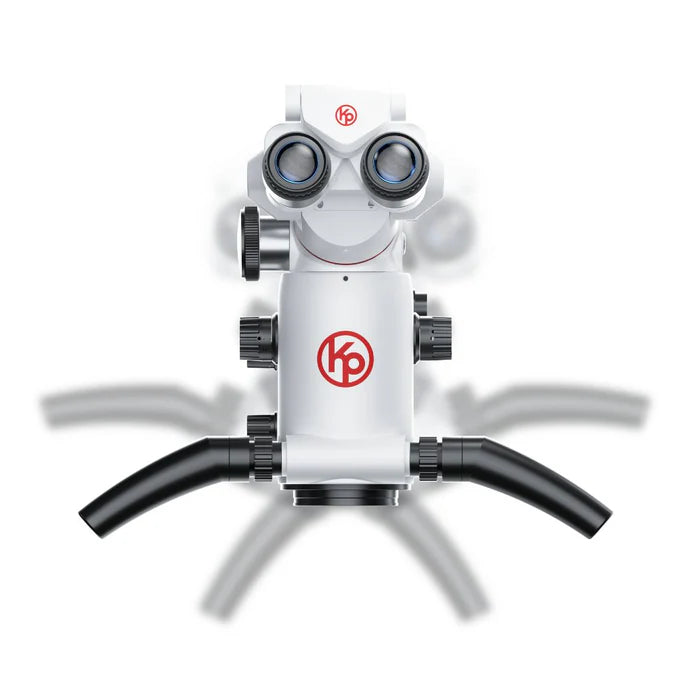

- Microscope head can be tilted left and right to any pendulum angle
- 0°–210° inclinable binocular tube minimizes the need for head repositioning
- Maintains optimal posture and reduces physical strain
- Minimizes neck and back strain, supporting long-term practitioner well-being and clinical endurance

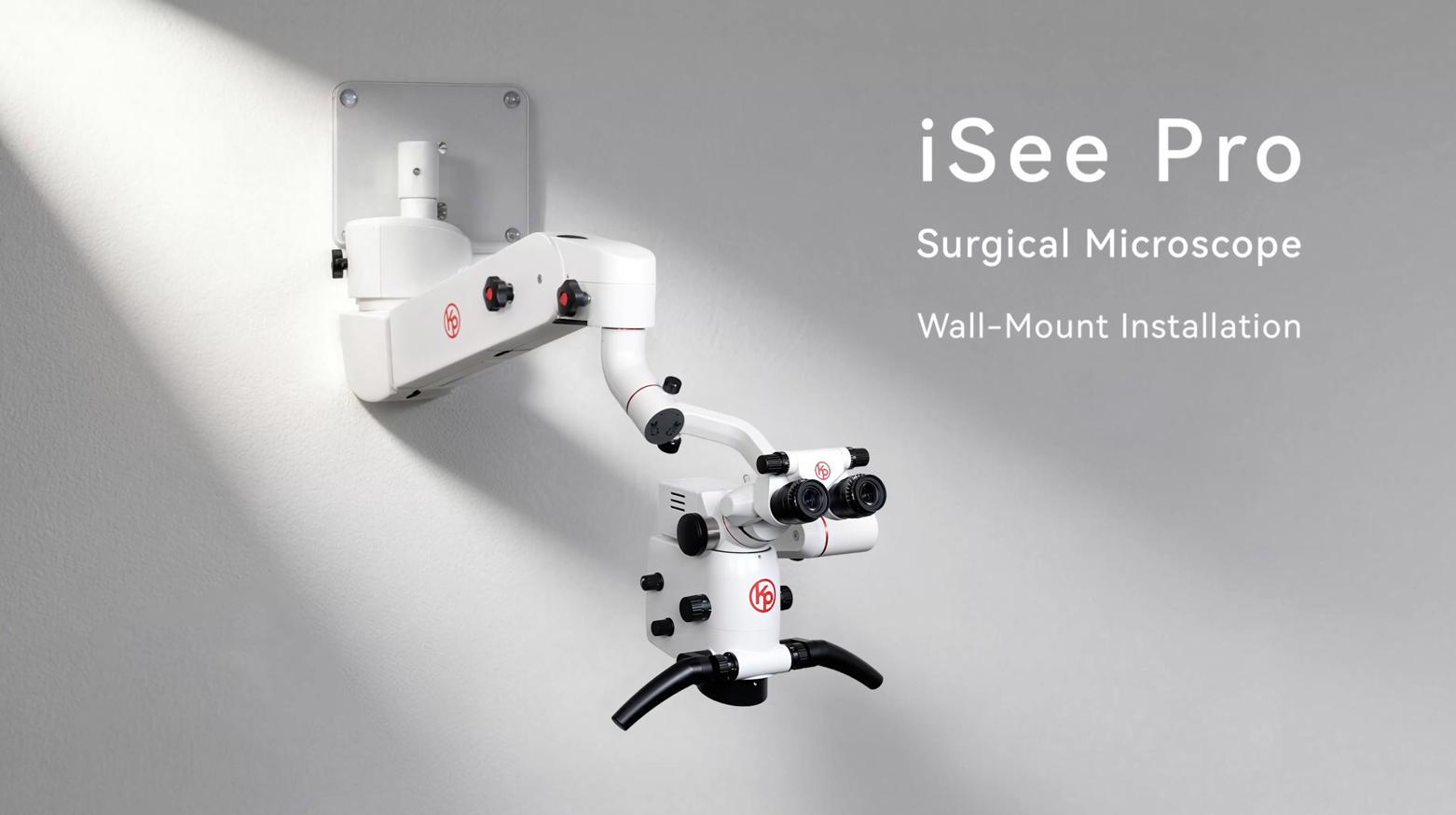

Easy Installation
